Page 5.

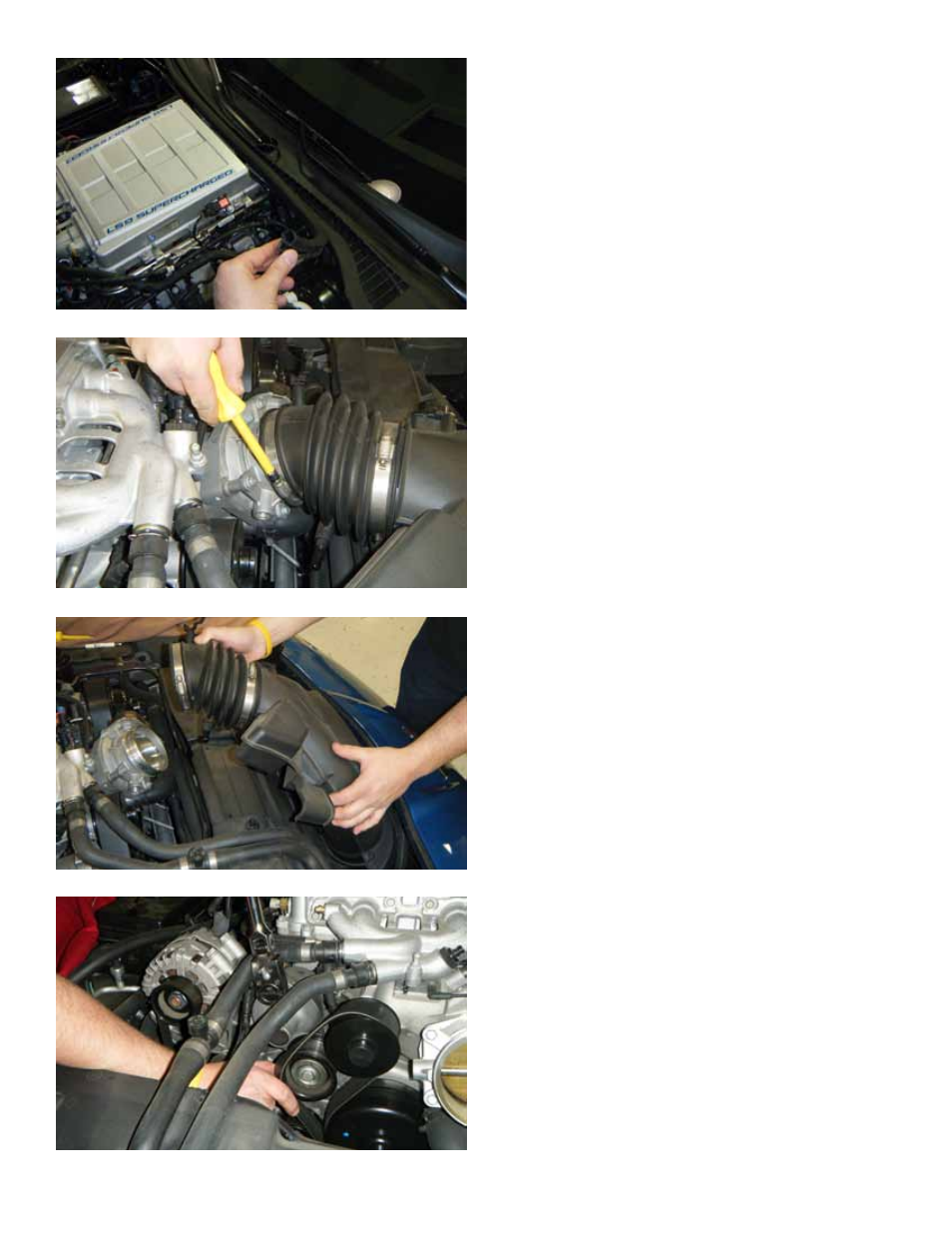

11. Remove the air inlet duct and air filter
housing by pulling straight up on the air inlet
duct assembly to detach the rubber grommets
from the mounting pegs.
12. Remove the supercharger drive belt
by using a 1/2” breaker bar to rotate the
supercharger belt tensioner and then remove
the supercharger belt from the pulleys and
tensioner.
Depending on your pulley combination, you
may or may not be using this belt over again.
(See Table 1 on page 35)
10. Using a 5/16” nut driver or socket, loosen
the clamp on the throttle body
9. Remove the rear hood seal from the cowl.
