Lingenfelter L250110309 Lingenfelter C6 ZR1 Corvette Supercharger Front Cover 2009-13 v2.2 - Manual (Page 33)

Page

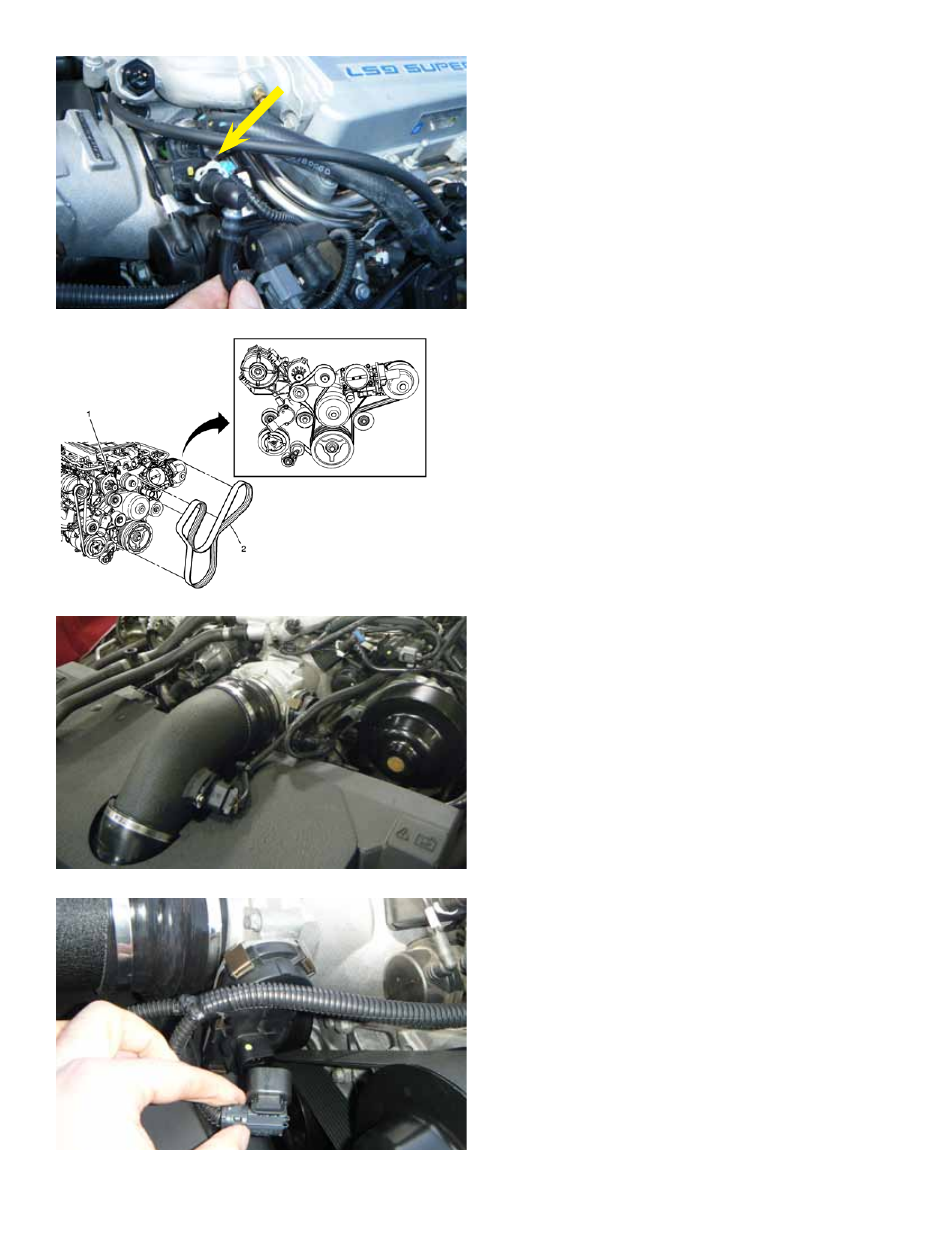

119. Install the air intake system.
NOTE - the LPE LS9 front cover does not work
with the stock ZR1 air intake. The LPE ZR1
air intake or a custom fabricated air intake
must be used. Refer to the LPE ZR1 air intake
instructions for installation method.
118. Install the supercharger drive belt.
Depending on your pulley combination this may
be the stock belt or a different length belt. See
Table 1 on page 35 for recommended belt and
idler sizes for the different supercharger pulley
and damper diameter combinations.
117. Connect the EVAP purge line to the purge
solenoid.
120. Connect the throttle actuator electrical
connector.
32.
