Lingenfelter L250110309 Lingenfelter C6 ZR1 Corvette Supercharger Front Cover 2009-13 v2.2 - Manual (Page 18)

Page 17.

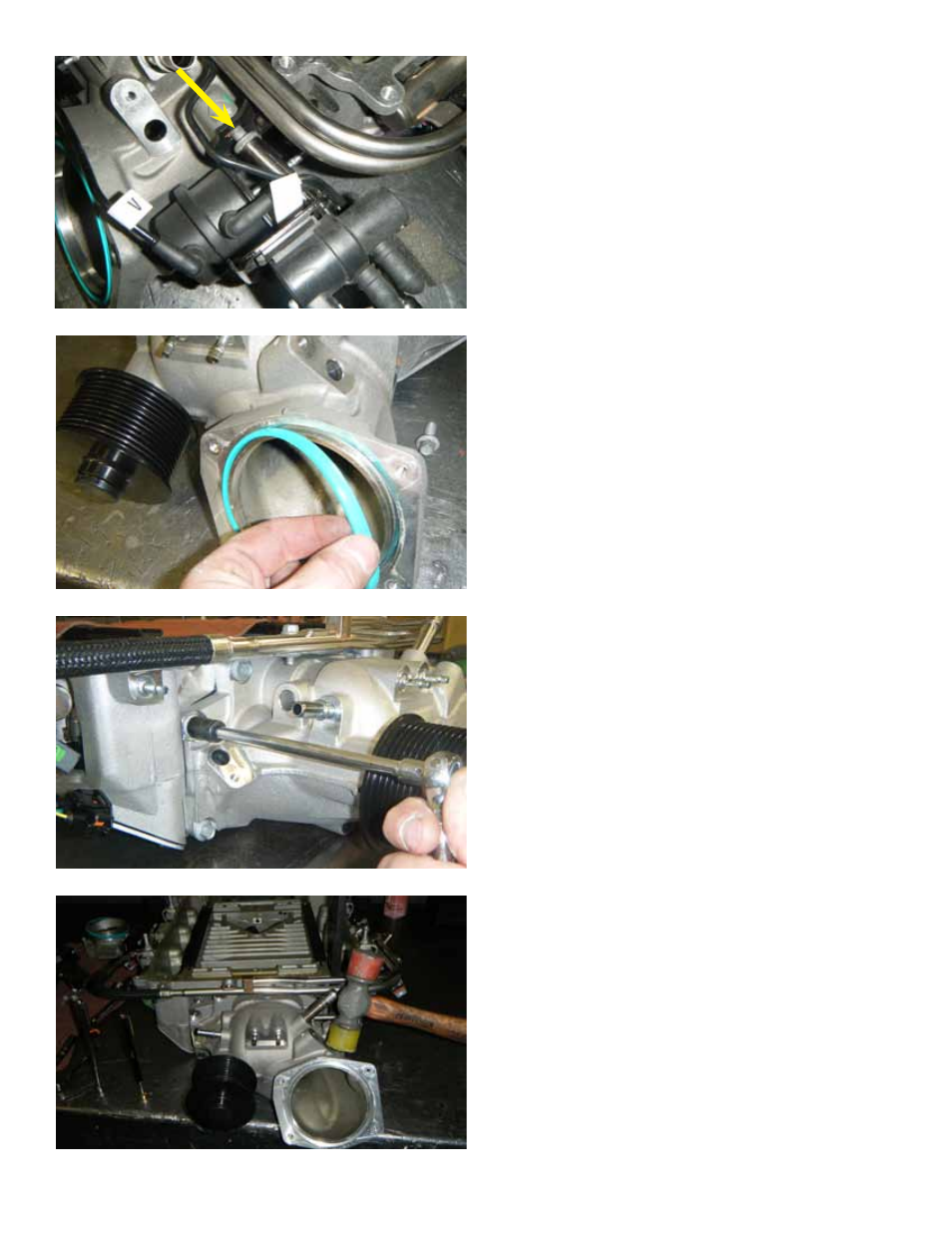

58. Carefully remove the throttle body gasket
from the front cover assembly. Inspect the
gasket. If it is in good condition it will be re-used
later on. If it is damaged you will need to obtain
a replacement gasket [GM PART #12576549].
59. Using a 10 mm socket and extension,
remove the six (6) bolts that secure the front
cover to the supercharger assembly.
60. Using a mallet (or prybar) gently knock
the front cover loose from the supercharger
assembly. It is located in place by two dowels
and the pins in the supercharger shaft coupler
so you are just using the mallet to loosen the
adhesive between the cover flange and the
supercharger housing.
57. Remove all vacuum hoses from the
bypass valve actuator and boost control
solenoid. Using a 10 mm wrench, remove the
two (2) bolts securing the bracket as shown.
