Simulation Setup

Changing Genitalia Modules

SimMan Essential is shipped with a neutral genitalia pad as default. The pad can be exchanged for a male or female genitalia pad with
urine catheter to simulate urine flow and catheterization.

Note: The manikin legs do not need to be removed before the genitalia pad can be replaced.

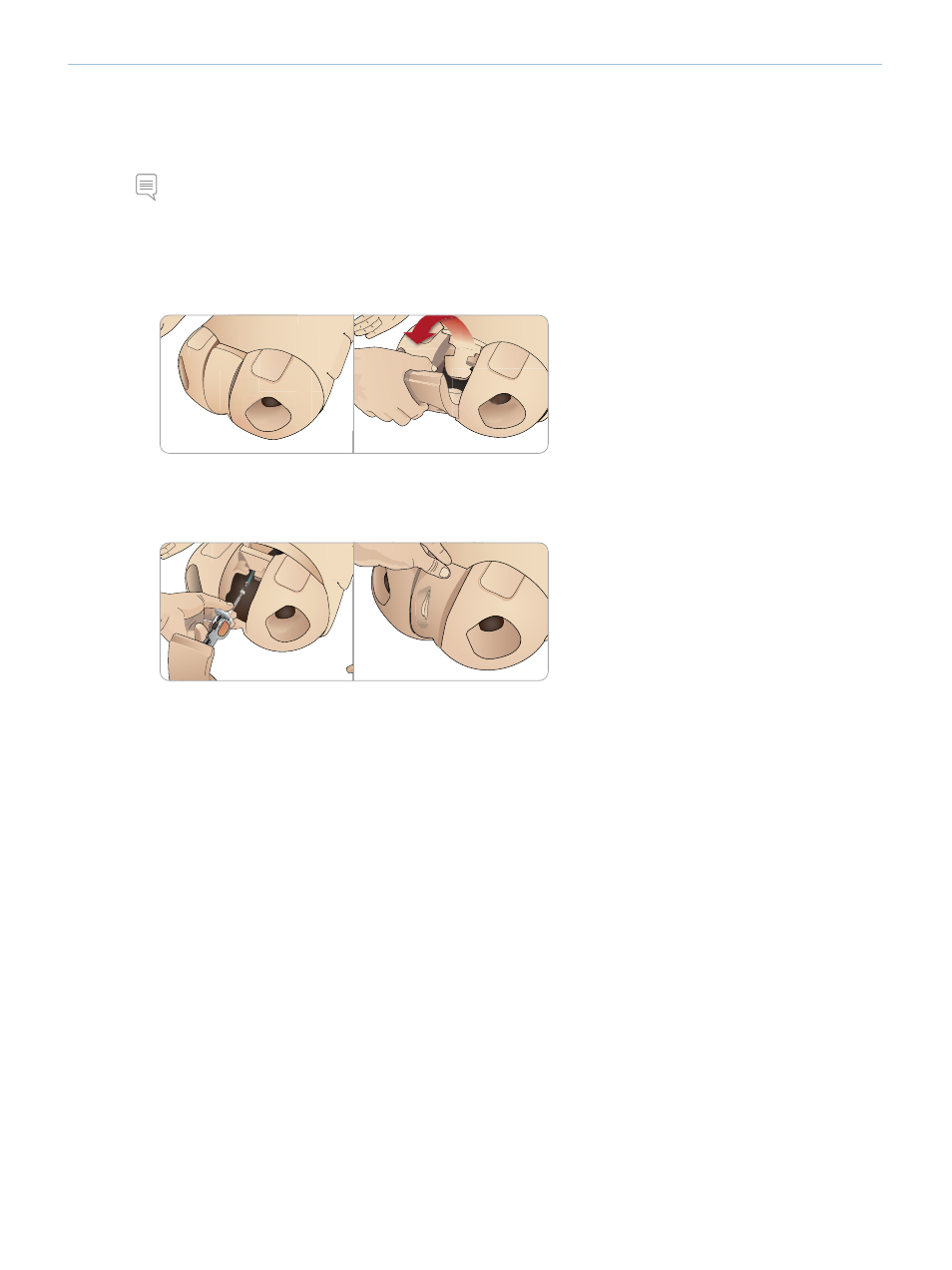

CHANGING THE GENITALIA PAD

1 Remove the manikin’s genitalia pad by gripping the pad at the top and

pulling forward and down.

2 Disconnect any tubes or cables.

3 Connect the new genitalia module’s urine tube and the catheterization

sensor cable from inside the manikin pelvis to the urine bladder module.

4 Place the new genitalia module back into the manikin’s pelvis.
