Page 61: Section 10.4, Figure 19
61
Dialogic
®
SS7G21 and SS7G22 Signaling Servers Hardware Manual Issue 7

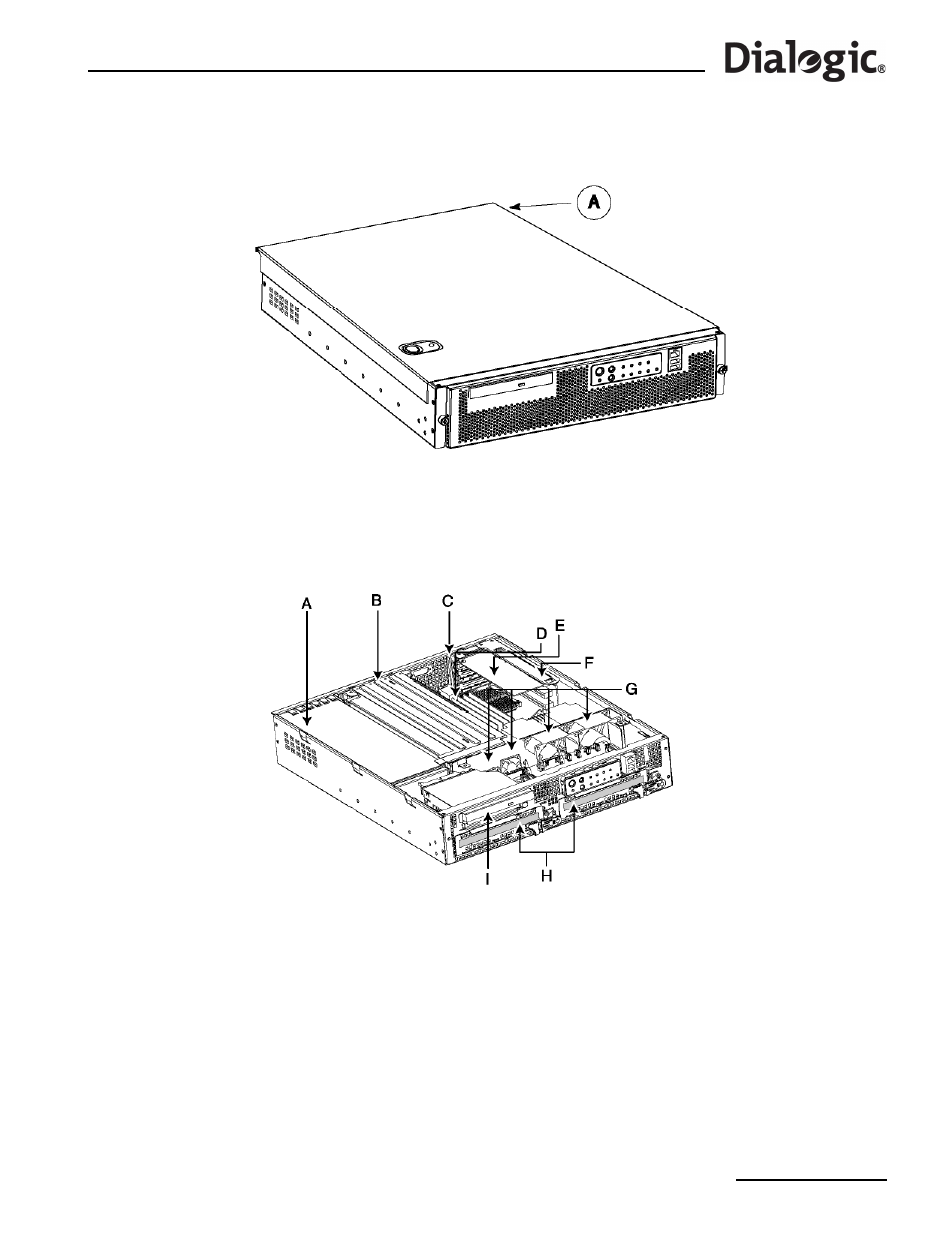

Figure 19. Top Cover Removal and Installation
10.4
Internal Product Layout
The layout of the components in the chassis of the Dialogic
®
SS7G21 or SS7G22 product is shown in
, and the components are identified in
Figure 20. Internal Product Layout
