Benchtop Mounting:

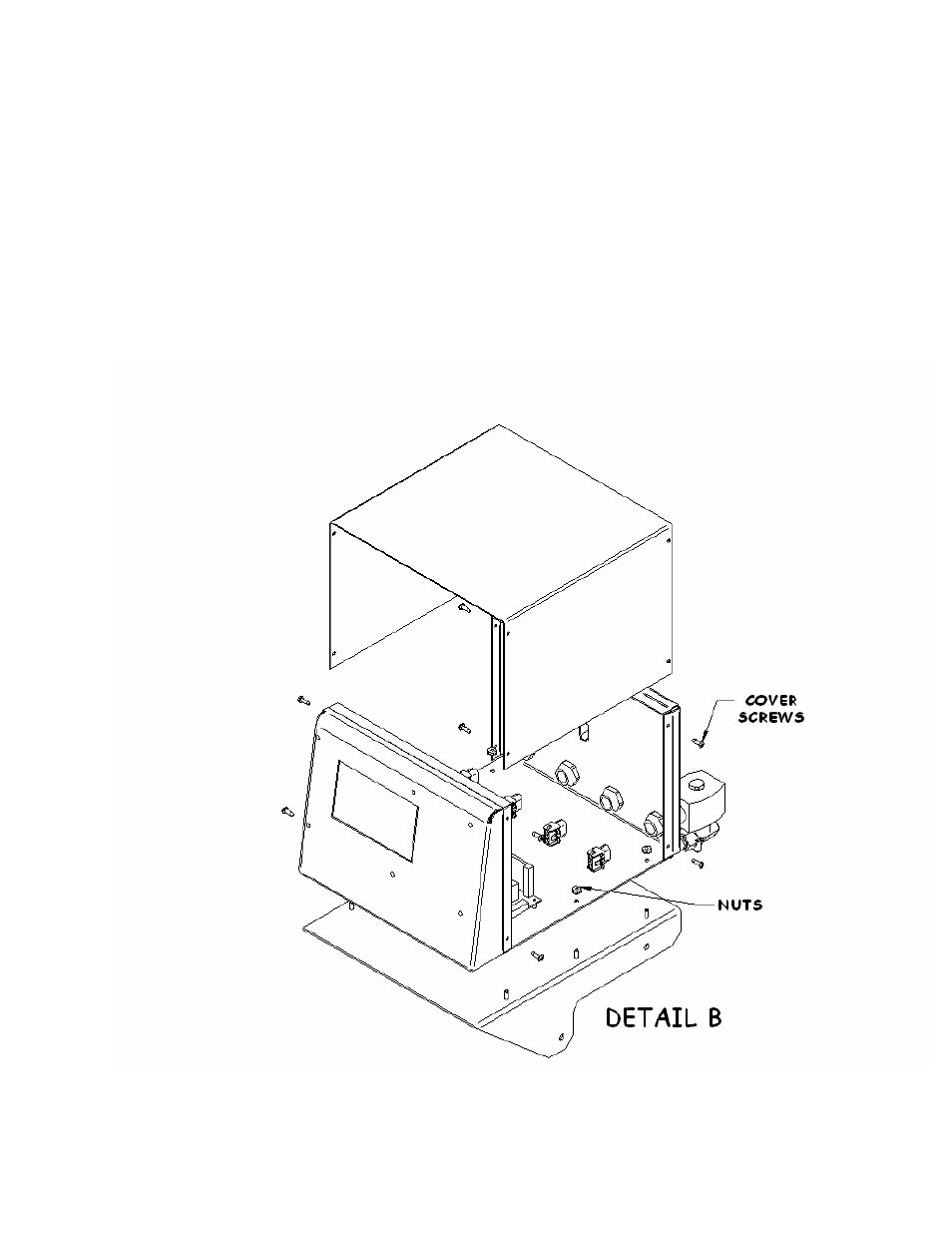

Installation (Detail B)
1. Disconnect the power source from the Pressure Controller.
2. Remove the Glove Box mounting bracket and attach the Benchtop mounting bracket.
3. Remove the eight screws that attach the Pressure Controller Cover to the Pressure
Controller. Lift the cover straight up and set aside.
4. Remove the six nuts securing the Pressure Controller to the Glove Box bracket.
5. Next, place the Pressure Controller on top of the Benchtop Mounting Bracket, attach
with the six nuts previously removed securing the Pressure Controller to the Benchtop
Mounting Bracket.
6. See plumbing installation section for benchtop mounting.
