Mechanical and Plumbing Installation Instructions
NOTE: The Pressure Controller is configured to mount on the Glove Box. If your use
is better served in the benchtop configuration, a benchtop mounting bracket (#5239100)
can be ordered separately.
Glove Box Mounting:
Installation

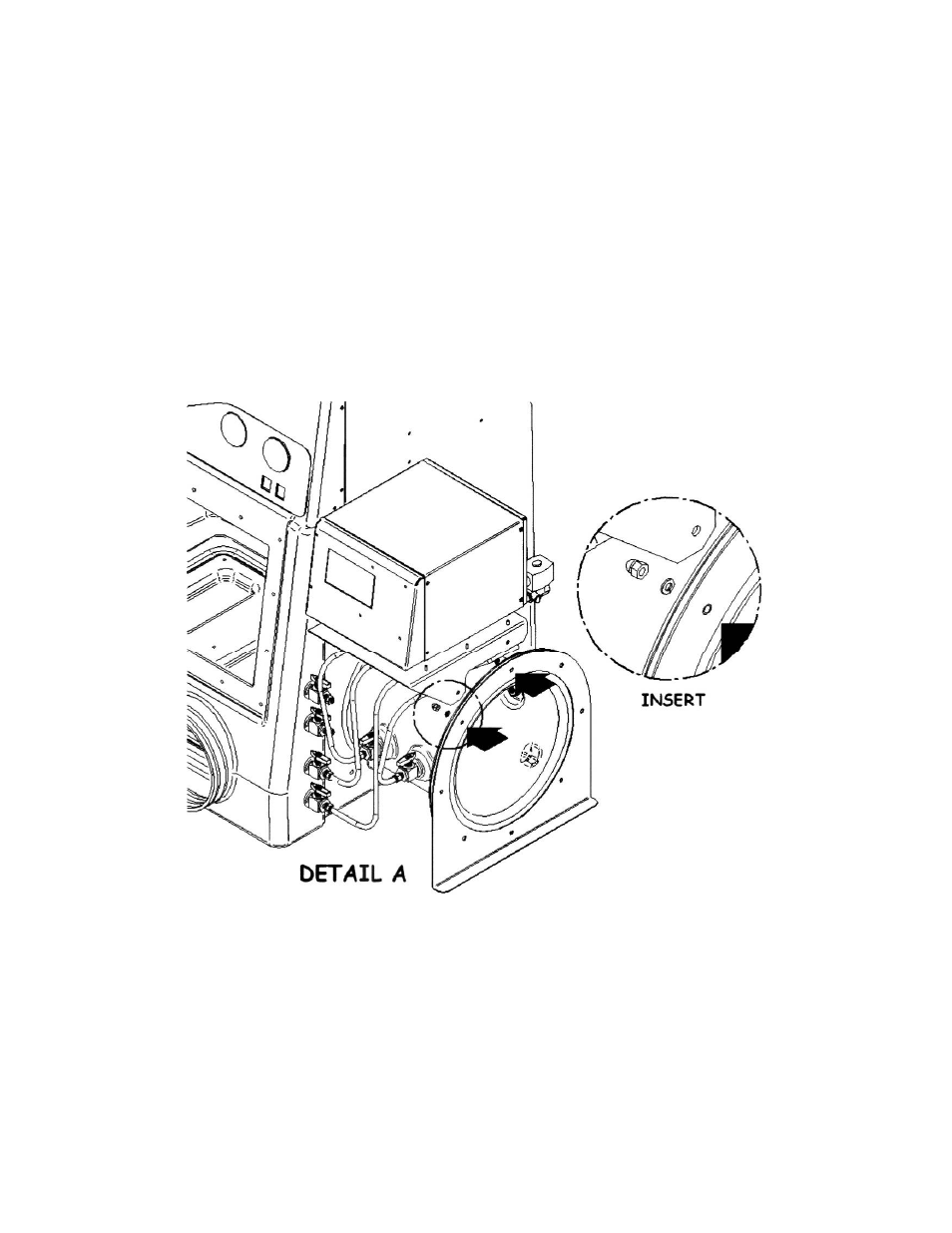

1. Remove the two acorn nuts and lock washers as shown in Detail A insert. Place the
Pressure Controller assembly over the studs as shown and secure with the previously
removed nuts and washers.
2. See the plumbing installation section for the Glove Box mounting.
