Product Service 1-800-522-7658 51
Original instructions
31.2
61.7 1
B
A
1 - Overall height with standard exhaust cover.
2 - Overall height with Ventus canopy connection.
Exhaust collar is 2 inches (50 mm) high.
C
9.06
25.7
29.2
17.6
65.4 2
21.7
MAX
Power Cord Connection
Exhaust duct connection sized for
10 inch (254 mm) outside diameter duct.
Power Cord
Connection

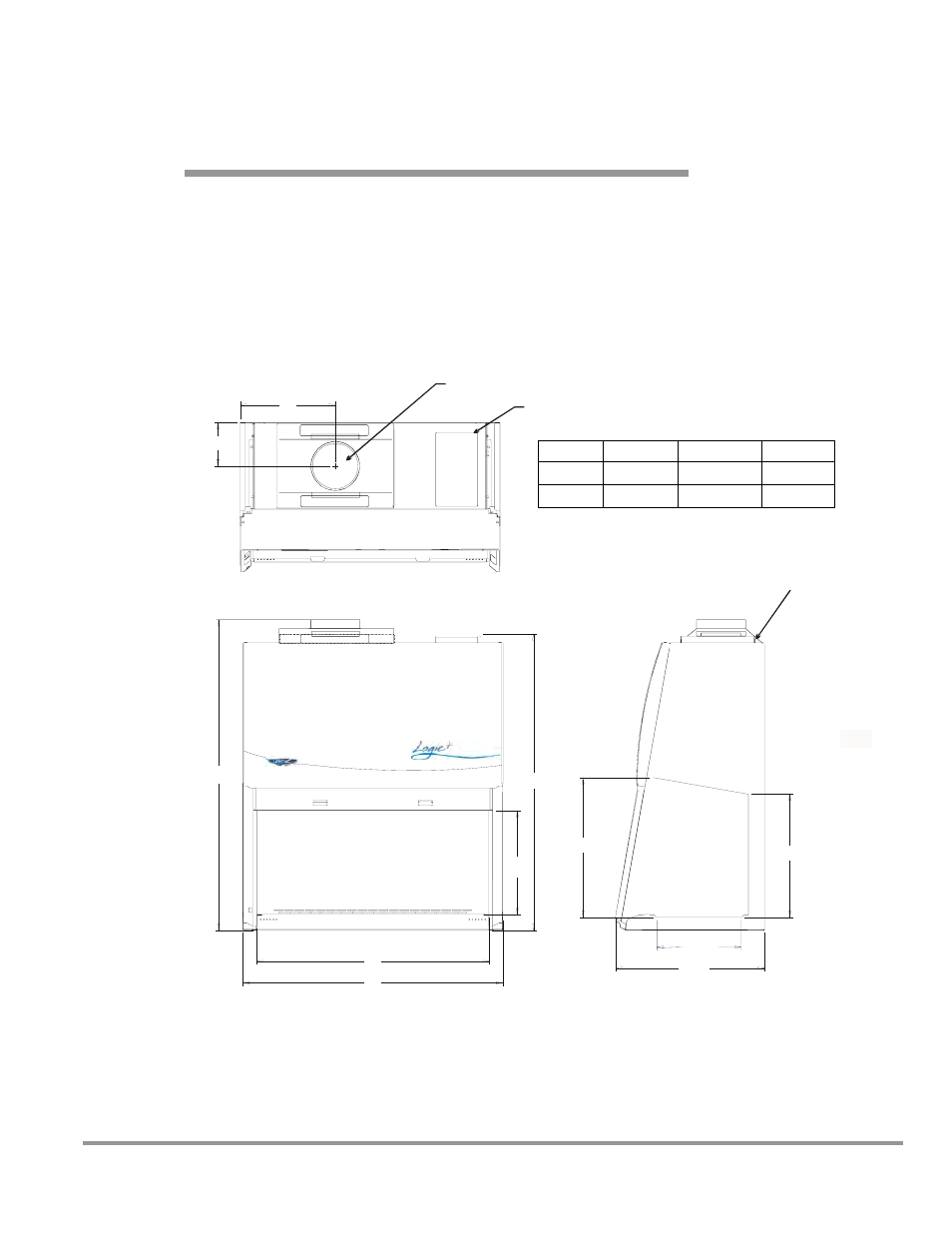

A A p p p p e e n n d d i i x x B B : :
D D i i m m e e n n s s i i o o n n s s
All dimensions in inches.
Width “A” “B” “C”
4' 54.3 48.5 19.9
6' 78.3 72.5 32.9
B-1
