9
C Series C 20:8X, C 10:8X, C 10:4X and C 5:4X Operation Manual rev. 1.1.4
Quick Guide Overview
4.1.2 Front-panel LED’s
The front-panel LED area includes the following indicators per channel:
▸
Temperature mute (Yellow constant)
▸
VHF (Very High Frequency) protection active (output muted) (Yellow)
▸
Mute channel via NomadLink network (2x Yellow)
▸
CPL (Current Peak Limiter) active (Orange flashing),
▸
CPL constant (output muted): Lo impedance / Short circuitdetection
▸
Fault (Yellow plus Orange)
▸
VPL (Voltage Peak Limiter) active, VPL/Clip (Red)
▸
-40 dB signal present (Green),
▸
Hi-Imp open load detected (Red)
▸
Bridge mode operation on (Yellow). Ch. A+B, C+D, E+F, G+H
bridged.

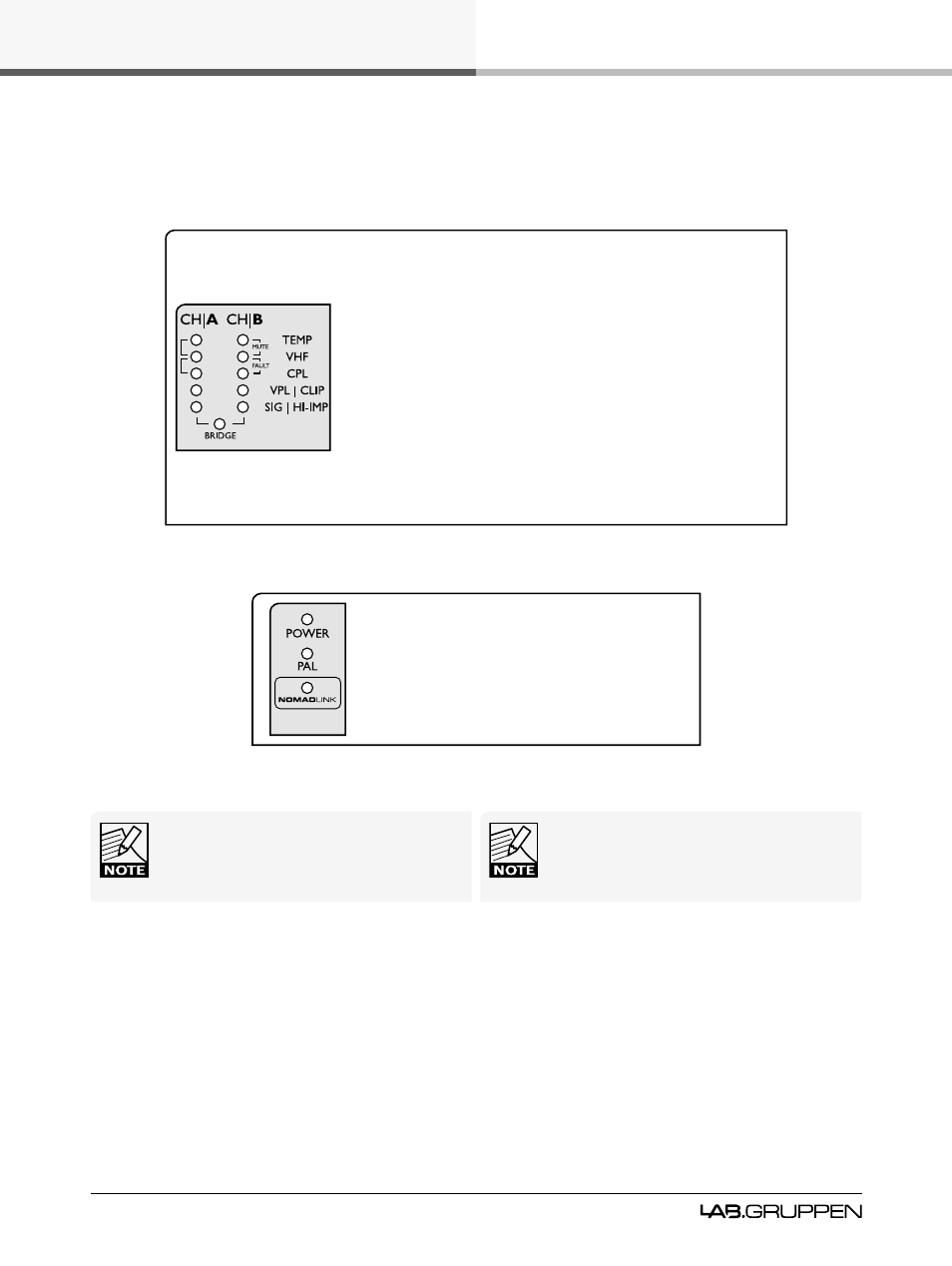

Figure 5.1.2a: Front panel LED display
Power on (Green)
PAL (Power Average Limiter) active (Red)
NomadLink network active (Blue)
Figure 5.1.2b: Power and PAL LED display
When no VPL, CPL or PAL indicators are illuminated,
and the VPL DIP-switch is set to maximum at the
specified nominal load, the amplifier channel is able
to deliver maximum rated output power.
When the network is connected, the blue Nomad-
Link LED will illuminate even when mains power is
not connected. NomadLink receives phantom
powerfrom the NLB 60E over the network cable.
