INPUT SECTION:
M I C R O P H O N E XLR Pin 1 Screen (Signal
ground)
Pin 2 Hot (+ve)
Pin 3 Cold (-ve)
This is a low impedance (1.2k ), low level input designed to give the
correct loading and sensitivity for dynamic type microphones. Plugging line
sources into this input may load the connected equipment and may result
in the loss of signal level, frequency range and increased distortion.
Pin 1 = Screen Pin 2 = Hot (+)
Pin 3 = Cold (-)
PUSH
Microphone Input XLR connections (view of connector on MLX2)
L I N E TRS Tip Hot (signal +)
Ring Cold (signal -)
Sleeve Screen (signal ground)
Sleeve
Screen R ing
Cold (-)
Tip
Hot (+)

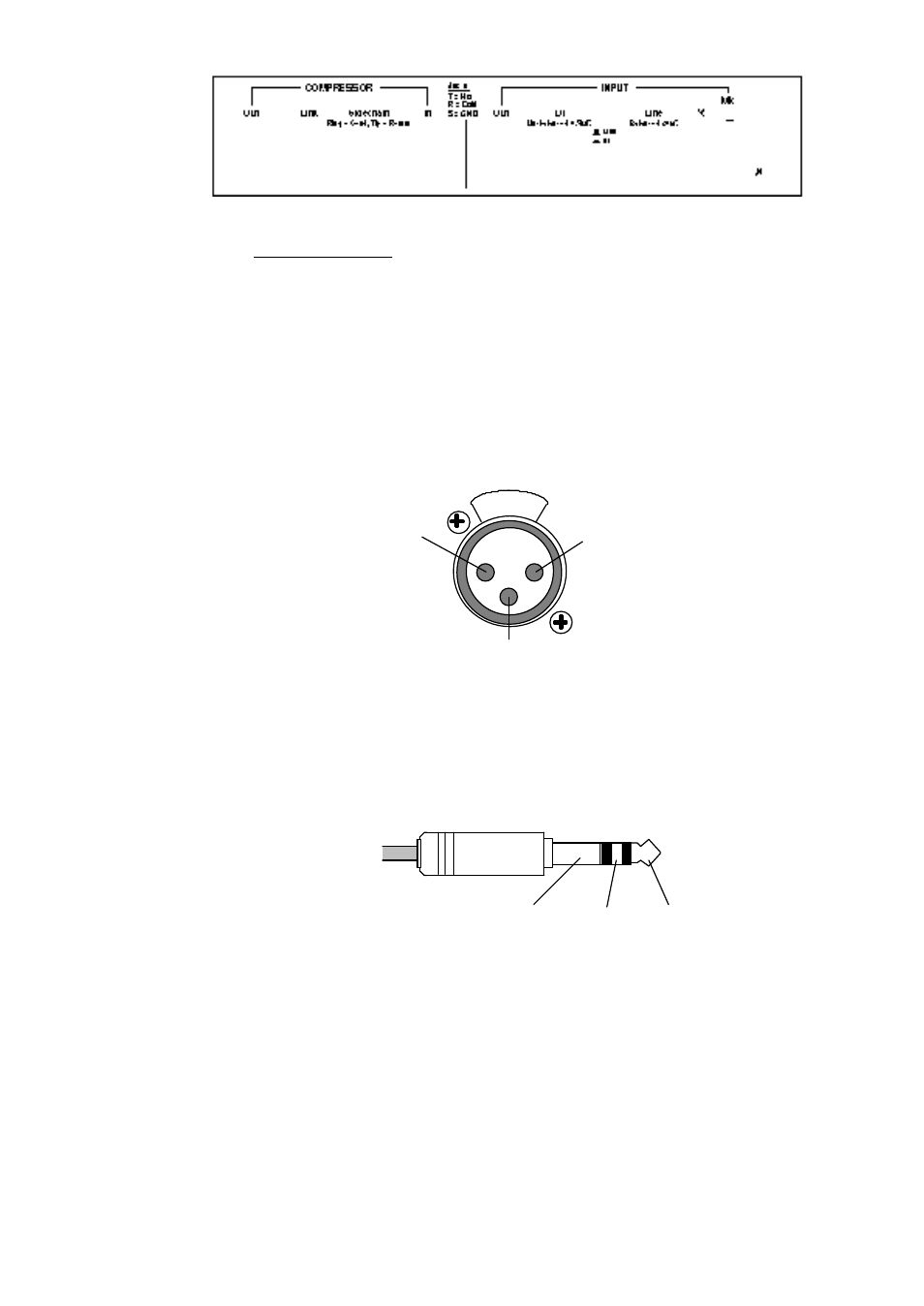

Fig 2.6.3: Line Input and -10dBV Output connections
The 20k input impedance of the LINE input is suitable for most types of
equipment.
For un-balanced operation join Ring and Sleeve on your connecting cable.
Plugging a mono jack lead into the LINE input will effectively un-balance the
signal connection.
D I jack Tip Hot (signal +)
Sleeve Screen (signal ground)
