H M F control
Sets the amount of cut or boost for the HMF (High Mid Frequency) section.

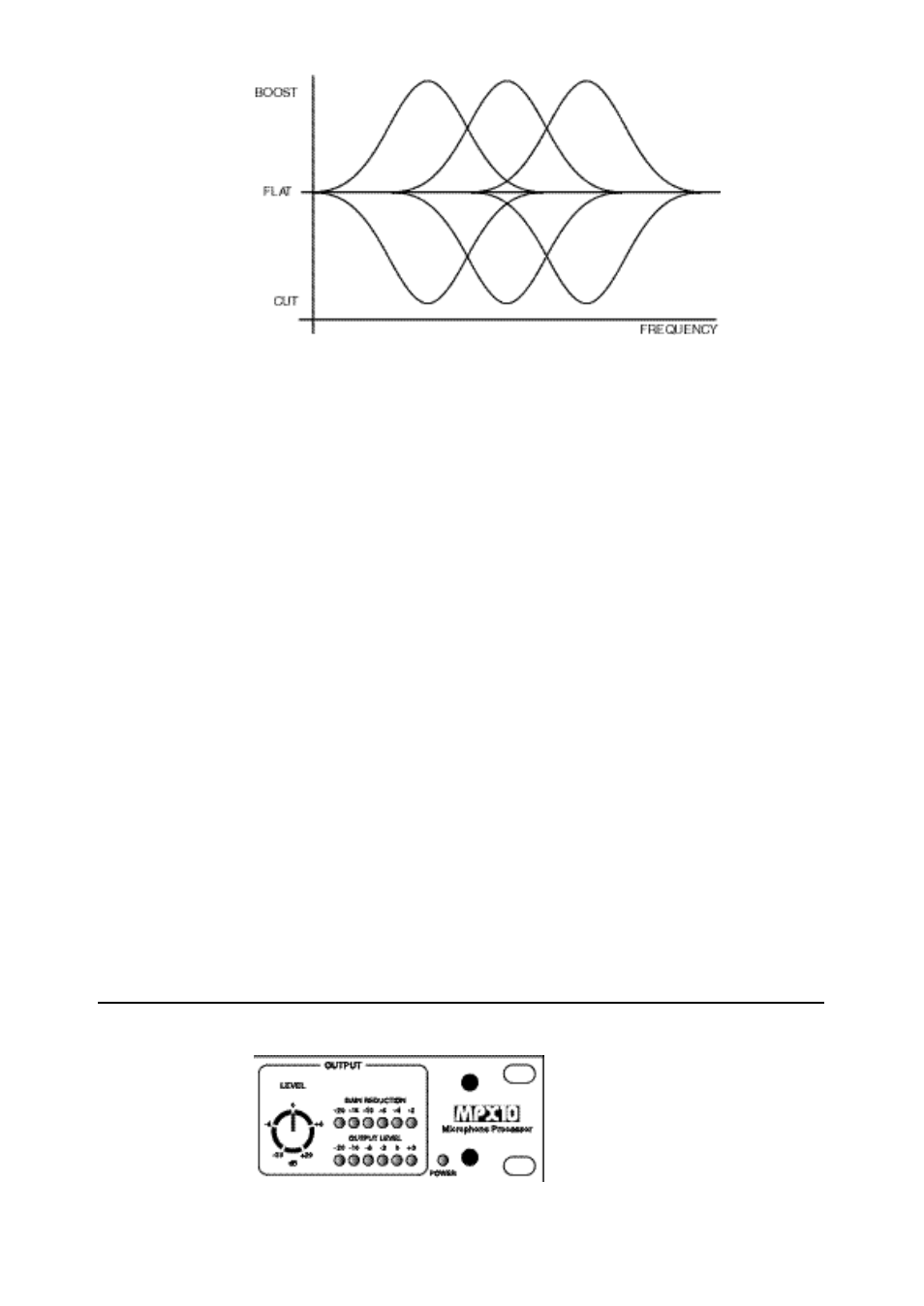

F R E Q U E N C Y control
This control varies the cut or boost centre frequency for the HMF section.
Control range is 500Hz, CCW to 20kHz, CW.
Q control
Varies the 'Q' of the cut or boost region for the HMF section.
H F control
High frequency shelving equaliser. Provides ±15dB cut or boost at 12kHz.
1 2 k H z switch
Inserts a 12kHz, -6dB/octave filter into the post EQ signal path. The filter is
switched separately from the 4 band EQ and is available when the EQ is
bypassed.
B Y P A S S switch
Switches the 4 band equaliser in and out of circuit allowing A-B
comparisons on EQ settings.
Please note that the EQ 'output' on the rear of the unit is post BYPASS and
FILTER.
4 . 4 O U T P U T S E C T I O N
