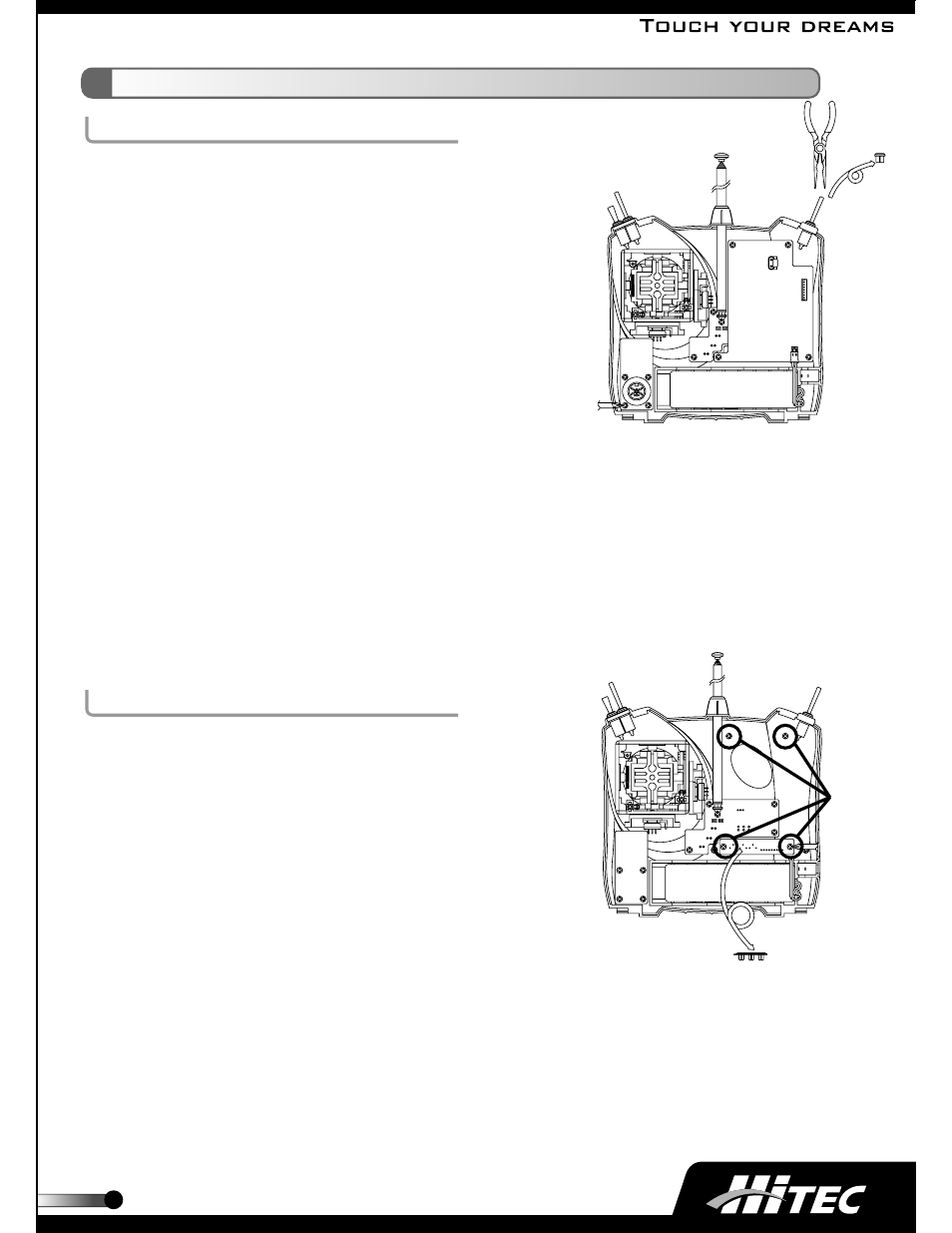

6 NEON Transmitter Option Installation Directions.
Trainer
switch
Trainer
jack
Screws
ATV Board Installation
1. Open the case as instructed on page 3 and disconnect the throttle
switch harness plug from the main board.
2. Disconnect the power from the radio by removing the battery holder
or unplugging and removing the Nicad battery pack.
3. Remove the four screws holding in the large brown PC board in the
illustration.
4. Without unplugging anything on the board, you should be able to shift
the board up out of the way about 1 inch.
Note: slide the white wire next to the antenna screw post out of the slot.
5. Pop the "cover" out from the three small holes and place the ATV board
on the two screw posts. Secure the board with the two supplied screws, be sure to tighten the screws up snug.
6. Taking care to route the wires under the boards as much as possible, re-install the four screws holding down
the large brown PC board.
7. Slide the white wire next to the antenna screw post into the slot and out of the way of the antenna as it is reinserted.
8. Re-install the battery.
9. Plug the throttle back in.
10. Taking care not to pinch any wires, slide the top of the case half's together then snap the bottom together.
Reinstall the antenna, antenna bezel, crystal and the lower case tabs.
11. All done? Range check your radio and go fly!
Trainer Port and Switch Installation
1. Open the case as instructed on page 3 and disconnect the throttle
switch harness plug from the main board.
2. Disconnect the power from the radio by removing the battery holder
or unplugging and removing the Nicad battery pack.
3. Twist out and remove the plastic cover from the back side of the case
so the trainer plug can be accessed after the case is closed.
Clean up the edges with a hobby knife.
4. Plug the 6 wire plug into the port marked "trainer" and route the
wires so they will not be pinched when the case is re-assembled.
5. Pop the plastic plug out from the top right of the Tx case and
install the switch by removing both small nuts, sliding the switch
up through the hole and securing both nuts so the top nut "jams"
the bottom one tight. Taking care to orient the switch so when the Tx is resting in your hand in the flying position,
the switch is pulled towards you and snaps back away from you when released.
6. Route the wires so they will not be pinched when the case is re-assembled.
7. Place the plug port PC board on the four screw posts and use the four screws to secure it.
8. Re-install the battery.
9. Plug the throttle back in.
10. Taking care not to pinch any wires, slide the top of the case half's together then snap the bottom together.
Reinstall the antenna, antenna bezel, crystal and the lower case tabs.
11. All done? Range check your radio and go fly!
