HITEC Lynx FM - Manual (Page 7)

Motor
Electronic Speed
Control
Main Power Pack
Steering
Servo
6

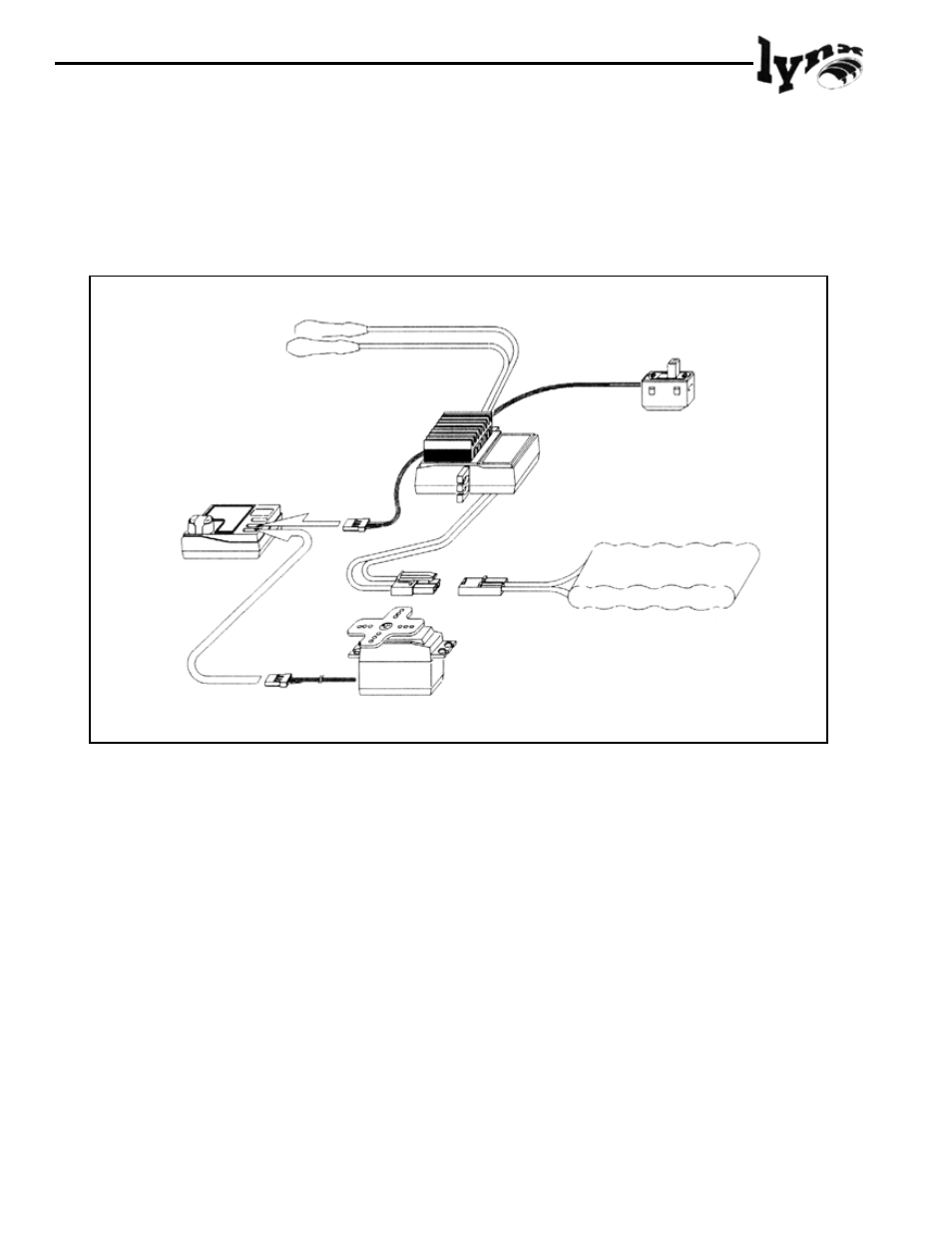

■ ■ ■ ■ ■ Connection with Electr Connection with Electr Connection with Electr Connection with Electr Connection with Electronic Speed Contr onic Speed Contr onic Speed Contr onic Speed Contr onic Speed Control ol ol ol ol
Electronic Speed Controls such as the Hitec HFX have a built in B.E.C. system inside the
speed control circuit. (Please verify whether your ESC has a built in B.E.C. circuit.) Plug
the receiver connector from the speed control into the “THROTTLE” or #2 channel on the
receiver, and the steering servo into the “STEERING” or #1 channel on the receiver. Now
you can connect the main power to the speed control and when the power switch is turned
on the speed control will regulate the power that the receivers can use.
3.T 3.T 3.T 3.T 3.Trrrrransmitter ansmitter ansmitter ansmitter ansmitter,,,,, Recei Recei Recei Recei Receivvvvver and Ser er and Ser er and Ser er and Ser er and Servvvvvo Settings o Settings o Settings o Settings o Settings
Now we come to the critical part, as proper installation of these three main components
is essential.
■ ■ ■ ■ ■ Chec Chec Chec Chec Checking oper king oper king oper king oper king operaaaaation of the ser tion of the ser tion of the ser tion of the ser tion of the servvvvvooooo
✷ After the installing of the servo and receiver into your model, turn the transmitter
power “ON” and fully extend the antenna, now turn on the receiver. (It is advisable to
remove the pinion gear from your car so that the wheels do not engage for this test).
✷ Check to see if either servos or speed control are working properly. If not check the
connections and make sure the main battery pack is charged.
