12
TO AVOID SHORT CIRCUITS, ALWAYS CONNECT THE CHARGE LEADS
TO THE CHARGER FIRST, AND THEN TO THE BATTERY. REVERSE THE
SEQUENCE WHEN DISCONNECTING THE PACK.

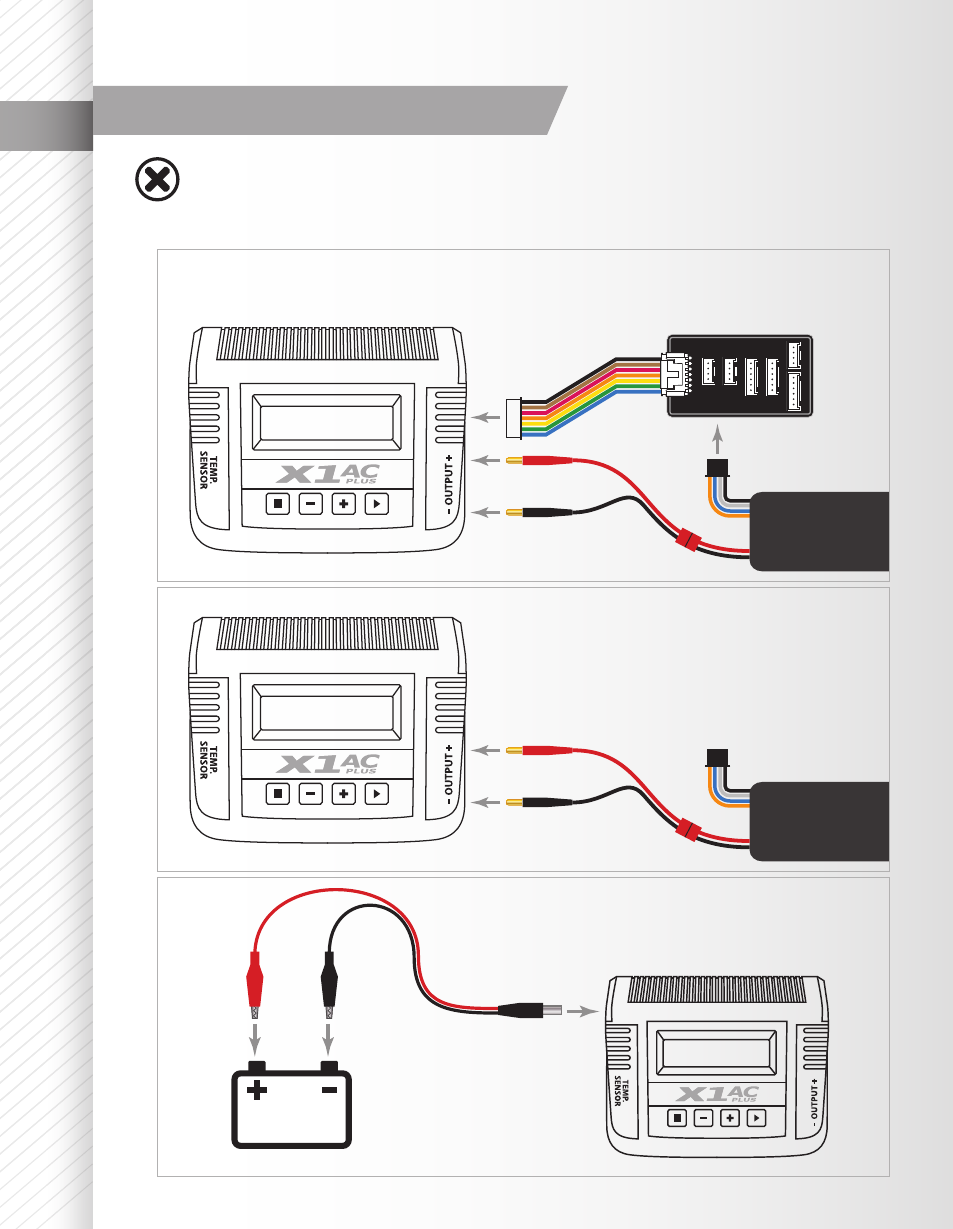

Charger/Battery Connections
Warning
2S
3S
4S
5S
6S
1
2
3
4
5
6
BATTERY
DC 11-18V
BALANCE
SOCKET
BALANCE ADAPTOR
X1 CHARGER
BALANCE
LEAD
Battery Connection With Balance Adaptor.
BATTERY
DC 11-18V
BALANCE
SOCKET
X1 CHARGER
Battery Connection
Without Balance Adaptor.
DC 11-18V
BALANCE
SOCKET
12VDC Battery/DC Power Supply Connection.
*
*
12VDC battery or
11~18V DC, 30 amp
power supply
