32
Parts List MiniMag RR kit # 26 4211
Part No. Description Material Dimensions
No. off
1 1 Building instructions, RR Paper A4
2 1 Decal sheet Printed adhesive film 400 x 700 mm
3 1 Fuselage and cabin, factory-assembled,
two servos, motor and controller installed
Elapor foam Ready made
6 1 Wing, factory-assembled, for R / E version Elapor foam Ready made
7 1 Tailplane with horn and pushrod connector fitted Elapor foam Ready made
8 1 Fin with horn and pushrod connector fitted Elapor foam Ready made
Small parts set
20
2 Hook-and-loop tape, hook Plastic 25 x 60 mm
21 2 Hook-and-loop tape, loop Plastic 25 x 60 mm
24 2 Glue-fitting horn Inj. moulded plastic Ready made
25 2 Pushrod connector, 6 mm Ø Metal Ready made
26 2 Washer Metal M2
27 2 Nut Metal M2
28 2 Socket-head grubscrew Metal M3 x 3 mm
29 1 Allen key Metal 1.5 mm A/F
30 2 Pre-formed aileron pushrod Metal 1 Ø x 70 mm
32 1 Screw Plastic M5 x 50 mm
35 1 Snake outer sleeve Plastic 3 x 2 x 90 mm
47 1 Steel rod Metal 1.3 Ø x 250 mm
52 1 Propeller Plastic 5.0 x 4.0”
75 1 Screw Metal M3 x 12 mm
Undercarriage
70
1 Main undercarriage with two 53 mm Ø wheels Metal / plastic Ready made
CD instructions / video
80
1 CD instructions / video Ready made

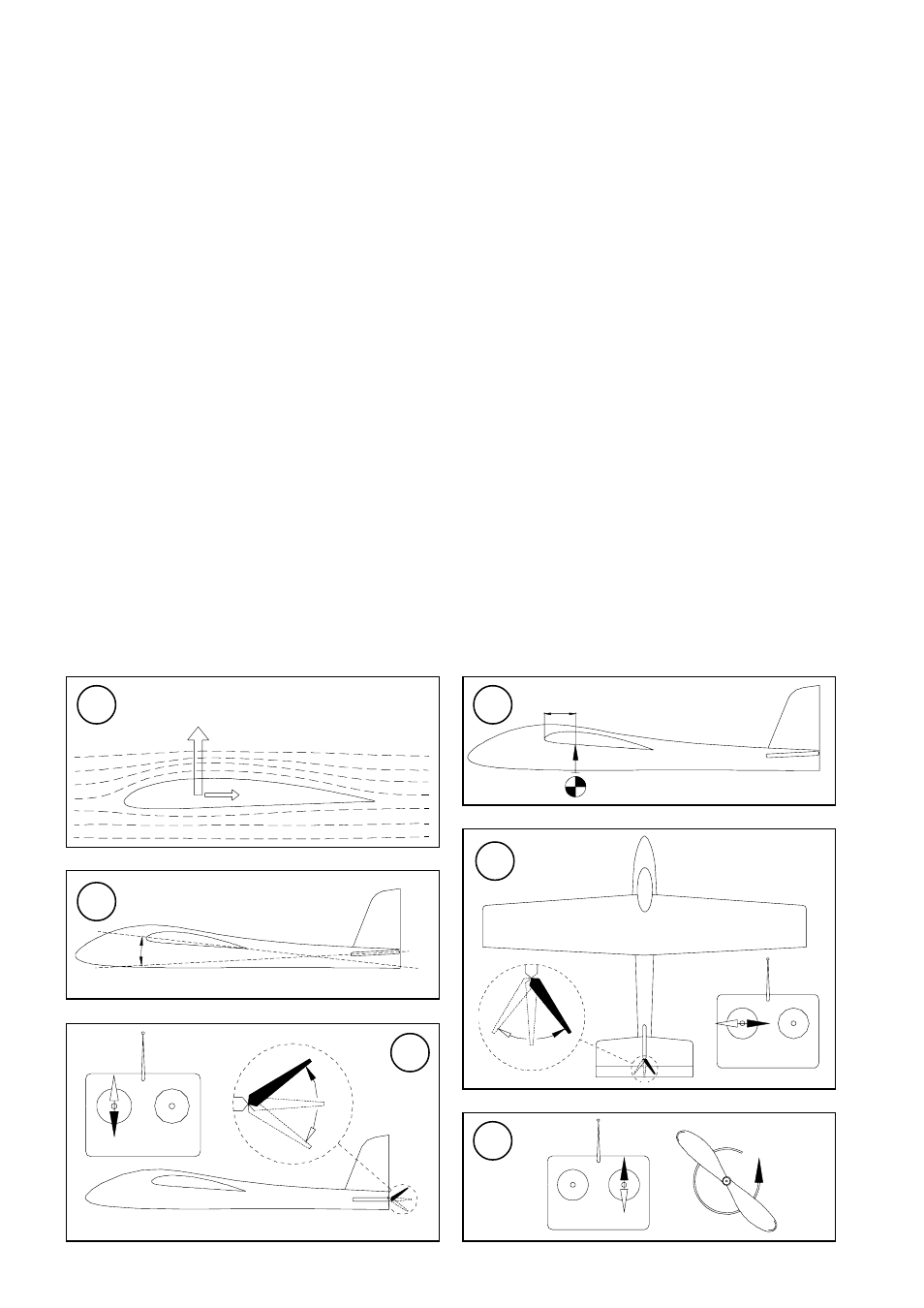

A B
C
D
E
Auftriebskraft
X
α
F
