HDMI™ over Dual UTP Extender

2. Features

Use Cat5e or Cat6 cables to extend high definition HDMI™ audio video signals

Can drive cables to 170 ft @ 1080i/720p or 130ft @ 1080p on 2 Cat6 cables

Supports DVI-D single link extension with optional adapter cables

Only one power supply needed for the setup

Buffers DDC (Display Data Channel) for reliable operation of HDCP and EDID

Compact enclosure measuring 2.6 x 2.6 x 1.1 inch

Includes a universal power supply and HDMI input cable!

3. Installation

Refer to figure 1 above. Place the sender by the video source. Use the supplied HDMI™ cable

connect the source to the sender (if you need to use a longer cable please make sure it is high

quality as poor cables can cause image drop-outs).
Use (2) Cat6 cables to connect the sender to the receiver. You can use UTP (unshielded) or STP

(shielded) cables. In most instances UTP works well, but for electrically noisy environments, STP is

recommended. The RJ 45 connectors are labeled as PORT A and PORT B. Make sure to not cross

the connections as this may cause damage to the unit or the power supply.

HDMI Side RJ45 Side

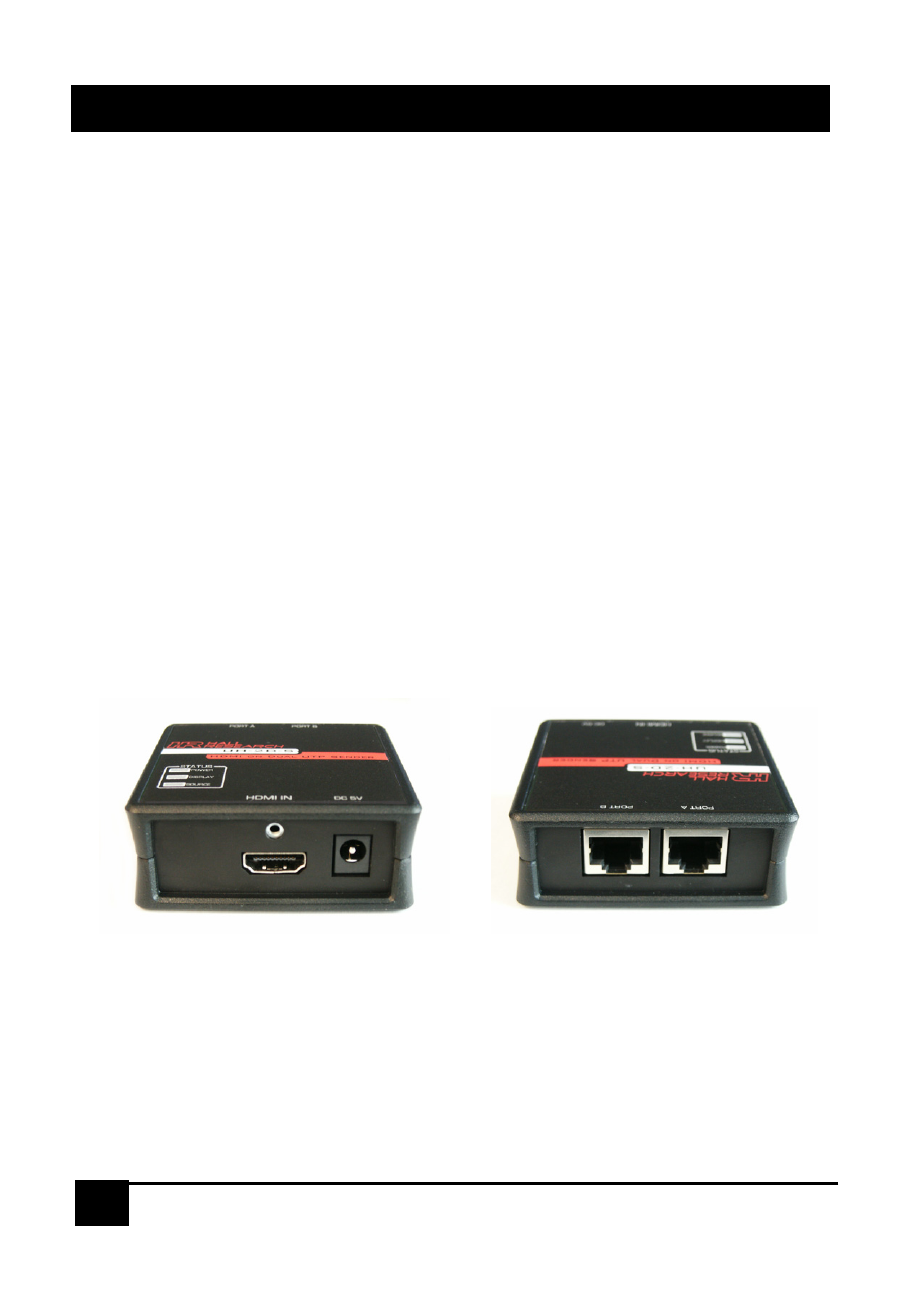

Figure 2 – Input and Output sides

Plug in the power supply (included) into the receiver or the sender whichever is more convenient for

your setup. Please note that when the UH-2D-S-DP wall-plate is used, the power supply must be

plugged into the receiver as there is no power jack on the wall-plate.
Turn on the display and the video source.
