Model UH-2D

1

1. Introduction

Hall Research’s Model UH-2D is a member of the Hall Research HD-Cat™ video extension product

line. The HD-2D extender kit uses two Cat6 cables to extend high definition video well beyond the

limitations of HDMI cable. The Sender and Receiver set support HDCP, Deep-Color, 3D and can

achieve a distance of up to 170 ft @ 1080i/720p or 130 ft @ 1080p resolution.

A single power supply is provided that can be plugged at either end for easy installation. The

extender equalizes TMDS video using state of the art technology for a crisp image, and buffers the

DDC channel for error free EDID and HDCP operation that help prevent image dropouts. The

extender can also extend single link DVI video from any PC.

The HD-Cat™ family of products are designed and manufactured in the USA. They offer a reliable

and low-cost alternative to HDBaseT extenders for shorter distances.

The HD-2D extender is typically sold as a kit, however senders and receivers are also separately

available for purchase. There is also a single-gang Decora® style wall-plate of the sender side.

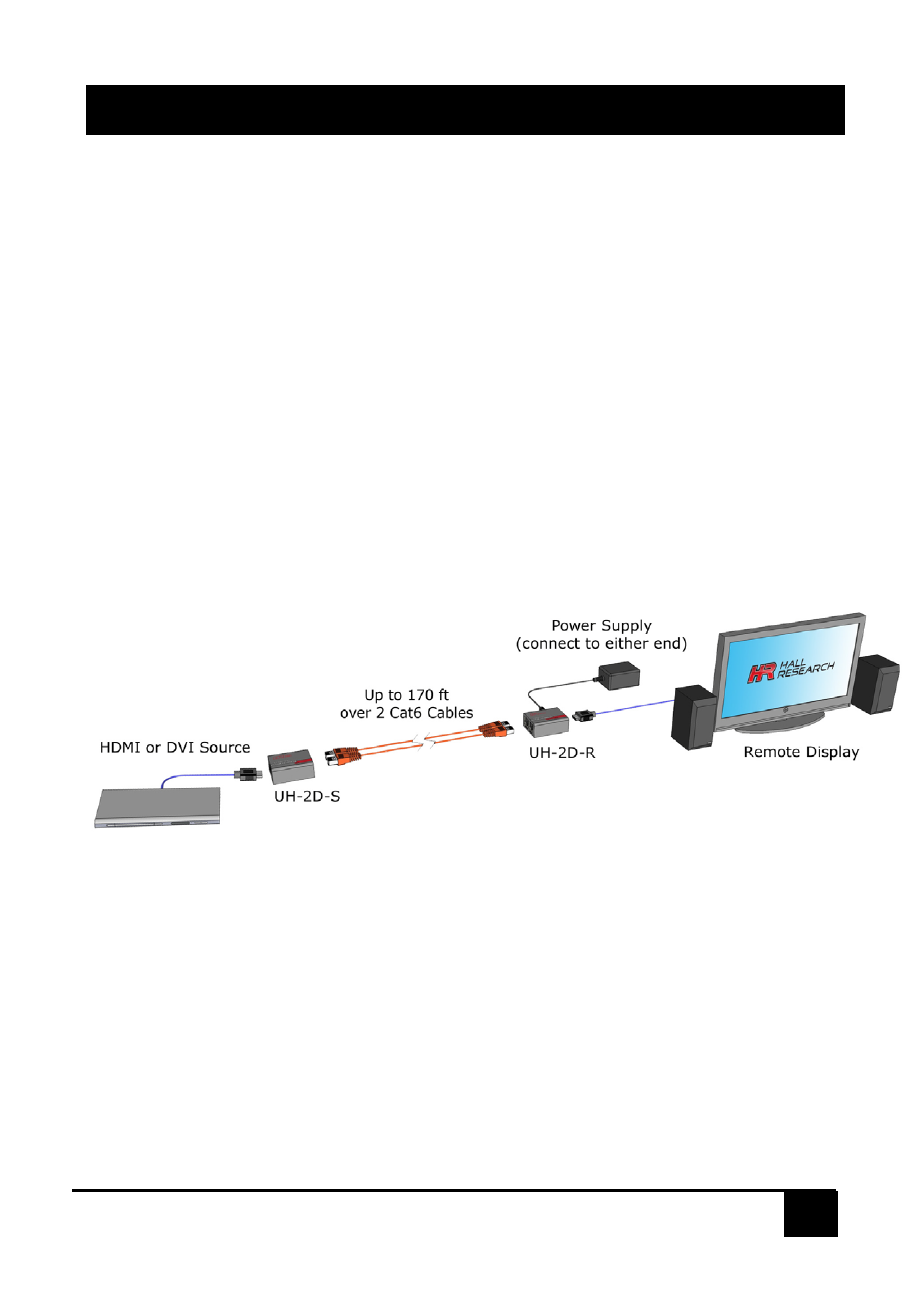

Figure 1 – Block Diagram
