Hall Research 97-S User Manual
Page 9
Dual Station Interface
8
I
I
n
n
s
s
t
t
a
a
l
l
l
l
a
a
t
t
i
i
o
o
n
n
a
a
n
n
d
d
S
S
e
e
t
t
u
u
p
p

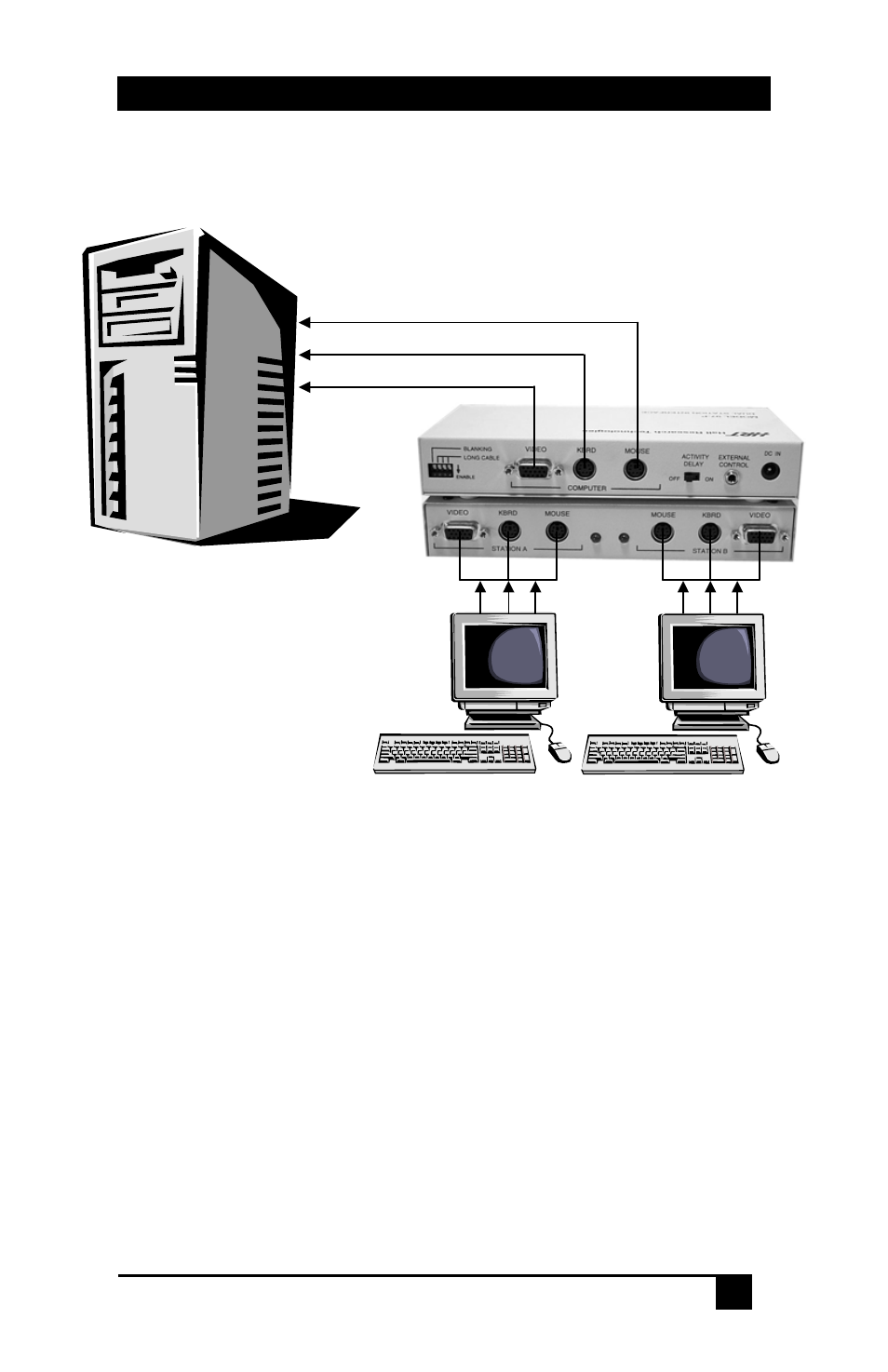

FIGURE 3
Normal Installation
1. Use the provided VGA cable to connect the VIDEO connector on
the “computer” side of Model 97 to the video card on the PC.
2. Use the provided PS2 cable to connect the KBRD connector on
“computer” side of Model 97 to the keyboard connector on the PC.
3. If you have Model 97-P, use the other provided PS2 cable to
connect the MOUSE connector on the “computer” side of Model
97-P to the mouse connector on the PC.
4. If you have Model 97-S, use the provided serial cable to connect
the MOUSE connector on the “computer” side of Model 97-S to the
serial port connector on the PC.
Computer
Station A
Station B
Video Card
Mouse Input
Keyboard Input
