Model 97 works properly with stations up to 50 feet away from the PC.
You can extend station B up to 300 feet by adding Model RXP-VKM:
1. Connect Station B’s VIDEO to
REMOTE IN on RXP-VKM
using a long VGA cable as
supplied by Hall Research.
2. Connect station B’s
peripherals to the other
side of RXP-VKM as you
would to station B.
3. Plug the RXP-VKM adaptor into a
working wall outlet and plug the other
end into RXP-VKM.

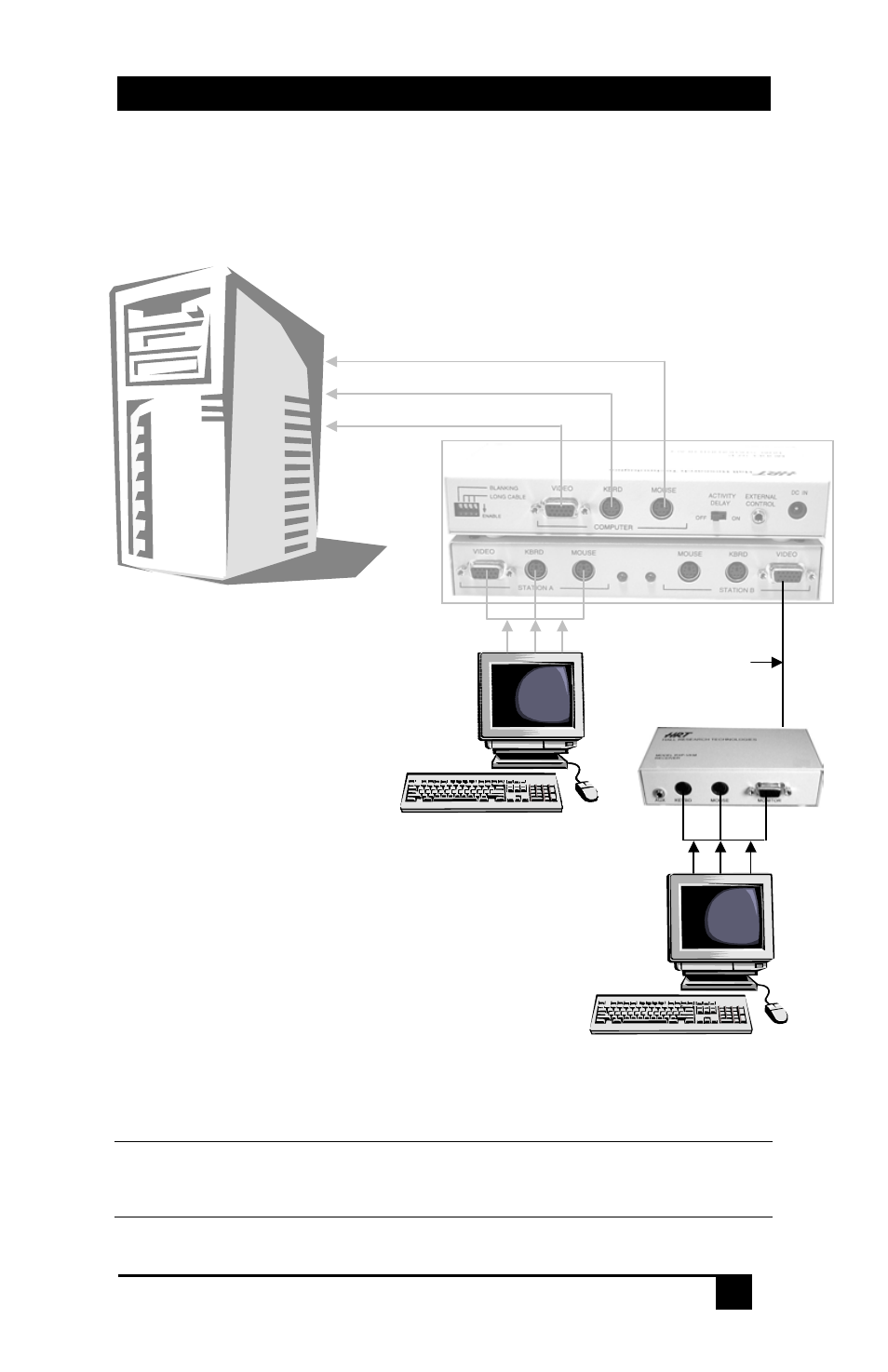

FIGURE 4
Remote Station Setup
3
To extend station B on Model 97-S, follow above steps to extend the monitor
and keyboard, then extend the mouse using a male-to-female serial cable.
Computer
Station B
Video Card
Mouse Input
Keyboard Input
RXP-VKM
Long VGA Cable
