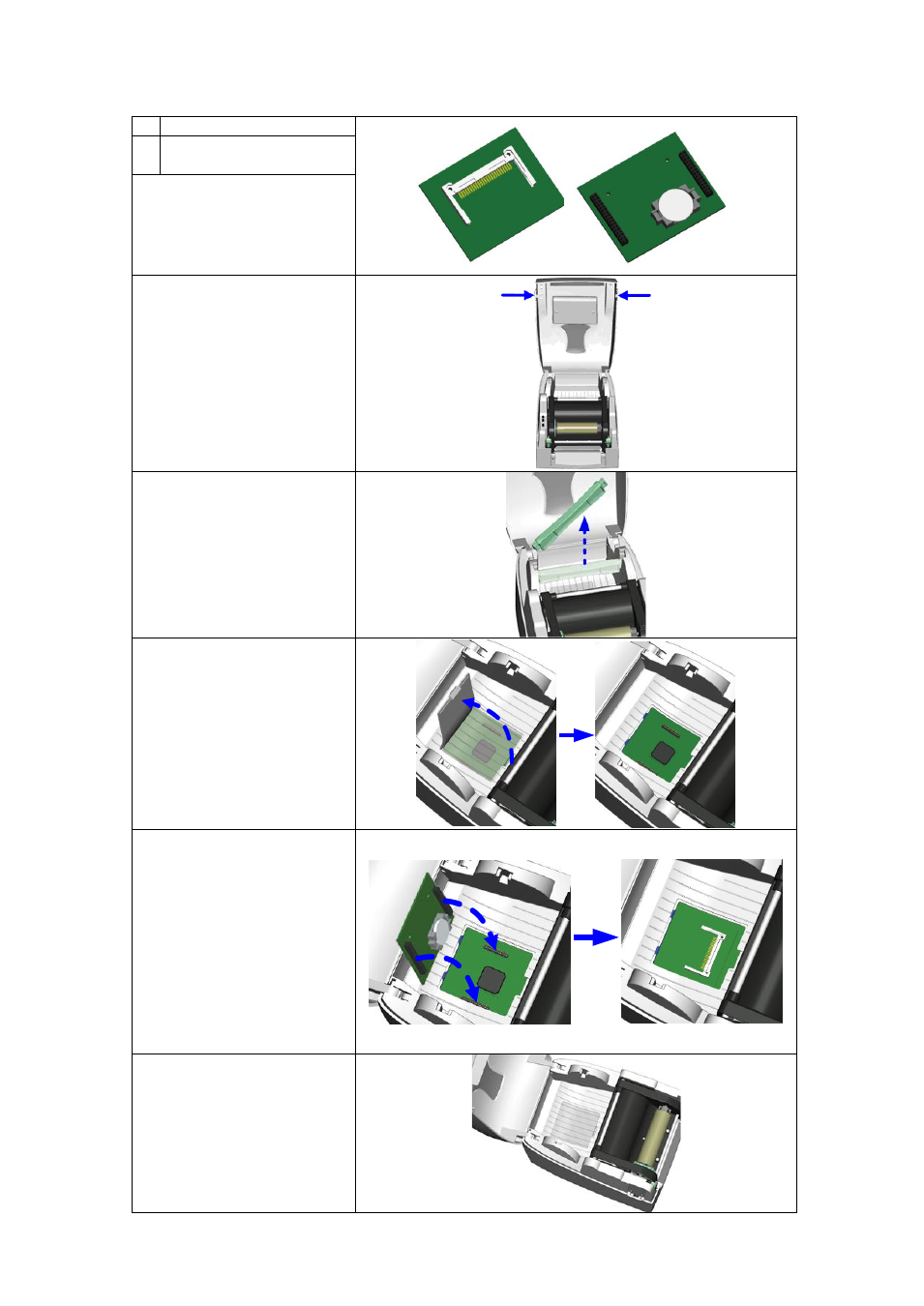

4-4. Installing the CF card adapter
1 CF card adapter (front)
2 1
2
CF card adapter
(back)
【 Note 】
Remember to switch off the
printer before installing the
CF card adapter.
1. Open the printer
cover by pressing the
release buttons on
both sides of the
printer housing.
2. Remove the label
supply hub.
3. Open and remove the
plastic cover inside
the printer.
4. Align the sockets and
pins on the CF card
adapter carefully with
those on the
motherboard before
connecting the
adapter.
【 Note 】
Please make sure that the
connections are aligned
correctly, to prevent
damage to the pins.
5. Close the cover
again.
