EZPi1000 User Manual

31

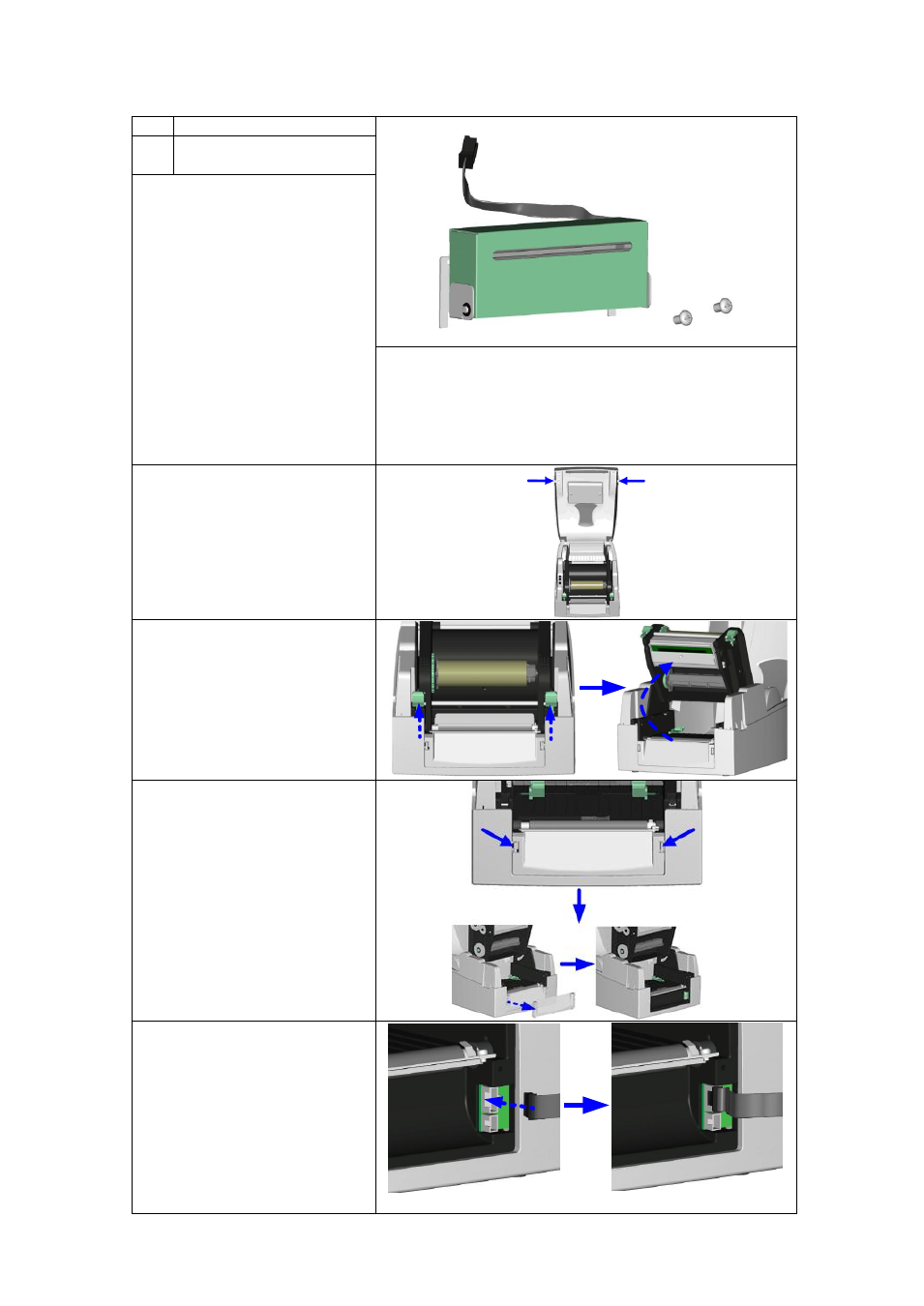

4-2. Installing the cutter

1

Cutter module

2

1

2

Tap screws
(3x8 – set of 2)

Note 1

Remember to switch off the
printer before installing the
cutter.

Note 2

Do not use to cut adhesive
labels! Glue residue will be left
on the cutter blade and
impair its functioning. The
cutter has a blade life of
500,000 cuts when using
paper weighing 160 g/m²,
and of 250,000 cuts when
using paper weighing 200
g/m².

Note 3

You can cut paper with a max. width of 116 mm.

Suggestion

With the cutter installed, set the stop position in Qlabel
to 30, and the E value to 30.

1.

Open the printer cover
by pressing the release
buttons on both sides of
the printer housing.

2.

Press the release catches
on both sides of the print
mechanism to open and
lift the print mechanism.

3.

To remove the front
cover, press in the two
plastic release tabs.


4.

Remove the front cover
as

shown

in

the

illustration.

5.

Connect

the

cutter

cable to the upper jack
as

shown

in

the

illustration on the right.

Important

The printer must

be switched off, or the
motherboard

may

be

destroyed!
There are 2 jacks: the lower
