24
7 One Collector Extension Kit - 22 0 - 75 0
Roof Requirements

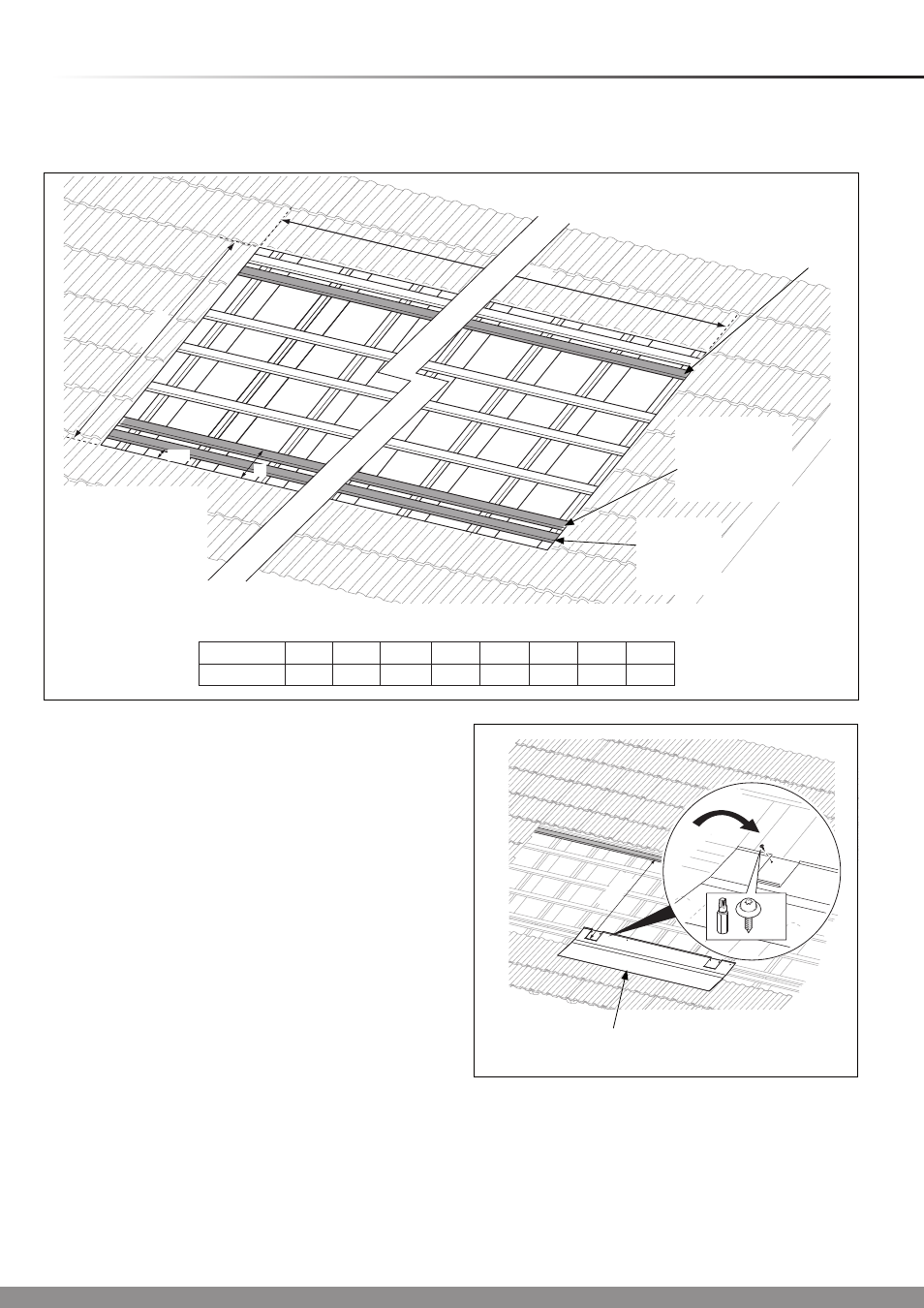

Refer to the diagram and table below and confirm the roof
requirements before installation.
15134
PANELS 3 4 5 6 7 8 9 10
B 6723 8786 10849 12758 14821 16884 13884 15147
Diagram 7.3
Diagram 7.2
15403
IMPORTANT
The one collector extension kit compliments the two collector
kit and is required to complete multi-panel installations up to
twelve.
● Do not remove the protection film until the system is to be
commissioned.
● With due regard to the complete weight of the solar
collector system, (refer to technical data) ensure the
roof rafters and battens are in good condition and have
sufficient load carrying capacity and the battens are
secure.
● If you are using the existing roof battens for fixing, ensure
that they are secured at each rafter.
7.1 Installation
NOTE: Ensure adequate provision has been made for the
flow and return pipes to enter/exit the roof space, dependant
on their location. The preferred hydraulic scheme will
determine their location, refer to Section 3.
Refer to diagram 7.1 and check the contents of the kits prior
to commencing work on the roof.
Based on the dimensions, above, remove the roof covering.
Fix the lower flashing support batten, see diagram 7.2.
1925
B
A
150
Position the lower flashing onto the roof batten and secure
with six securing screws (no.1), using the Torx bit supplied,
see diagram 7.3.
Align flashings as shown in diagram 7.4.
TOP
BATTEN
Distance ‘ A’ must
be between 280mm
and 309mm. Use an
additional batten if
required
The bottom
flashing is fixed
to this (original)
batten
Additional
batten to
support the
collector
1580
No.1
LOWER FLASHING
