Page 14

background image

14

No.1

No.5

Diagram 5.13

15125

TILE BAR

TILE BAR

STRAP

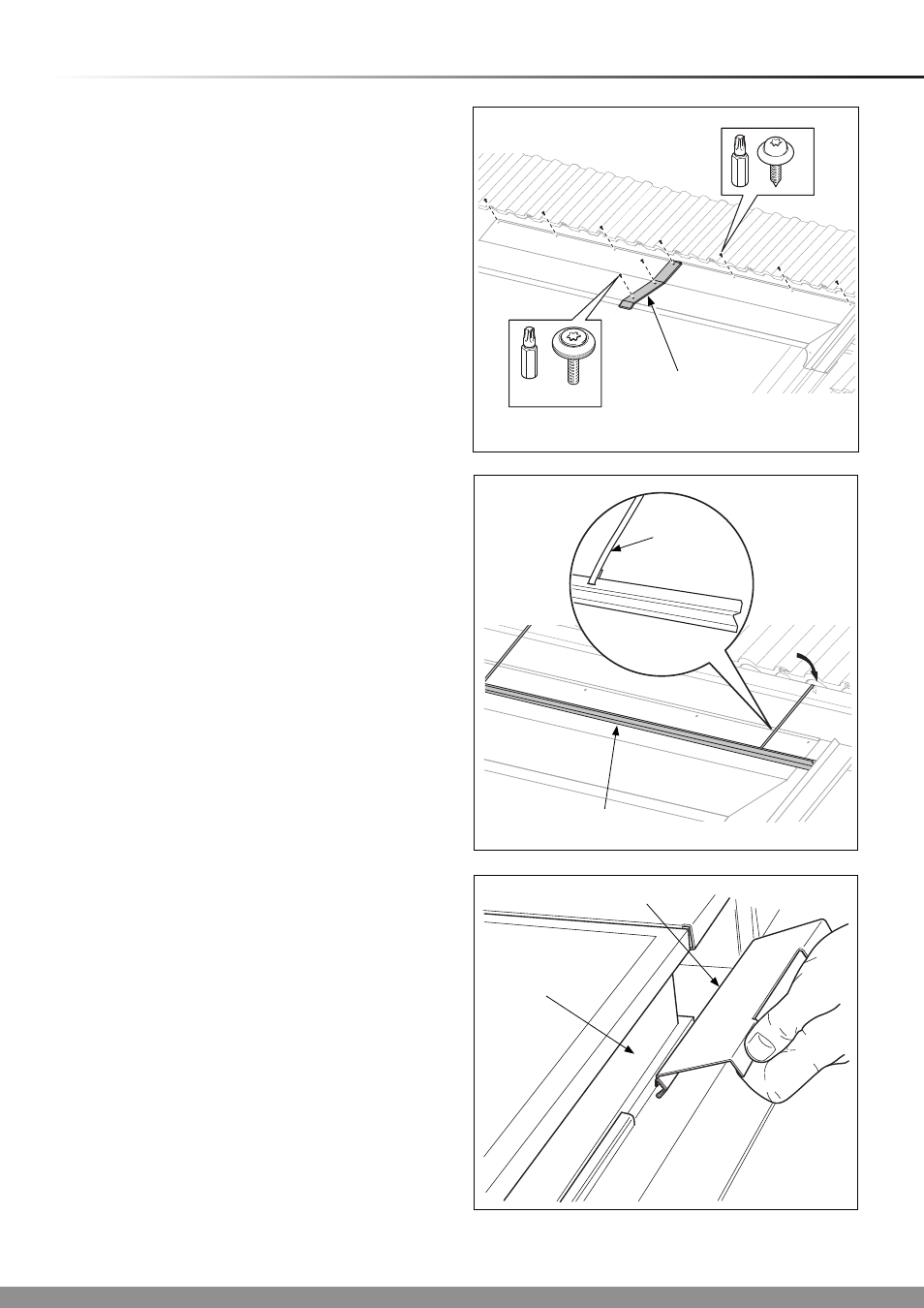

Fix the ridge plates to the roof battens with the screws (No. 1)

using the supplied Torx bit.

Fix the ridge plate coupling to the ridge plate joint with three

screws (No. 5) using the supplied Torx bit, see diagram 5.12.

5.3 Tile Bars

Place the tile bars on the ridge plates.

Bend the metal bands and hook the tile bars to the roof batten

from the top, see diagram 5.13.

5.4 Covering the profile ends

Cover the side profile ends and the collector joints with the

profile end pieces, see diagram 5.1 for profile end location.

Fit the profile end pieces to the bottom of the collector edge

and then tilt them up, until they lock in the upper collector

edge, see diagram 5.14.

Diagram 5.14

14981

PROFILE END PIECE

COLLECTOR

EDGE

5 Single Collector Flashing Kit - 22

0

- 75

0

Diagram 5.12

15147

RIDGE PLATE

COUPLING
