18
14975

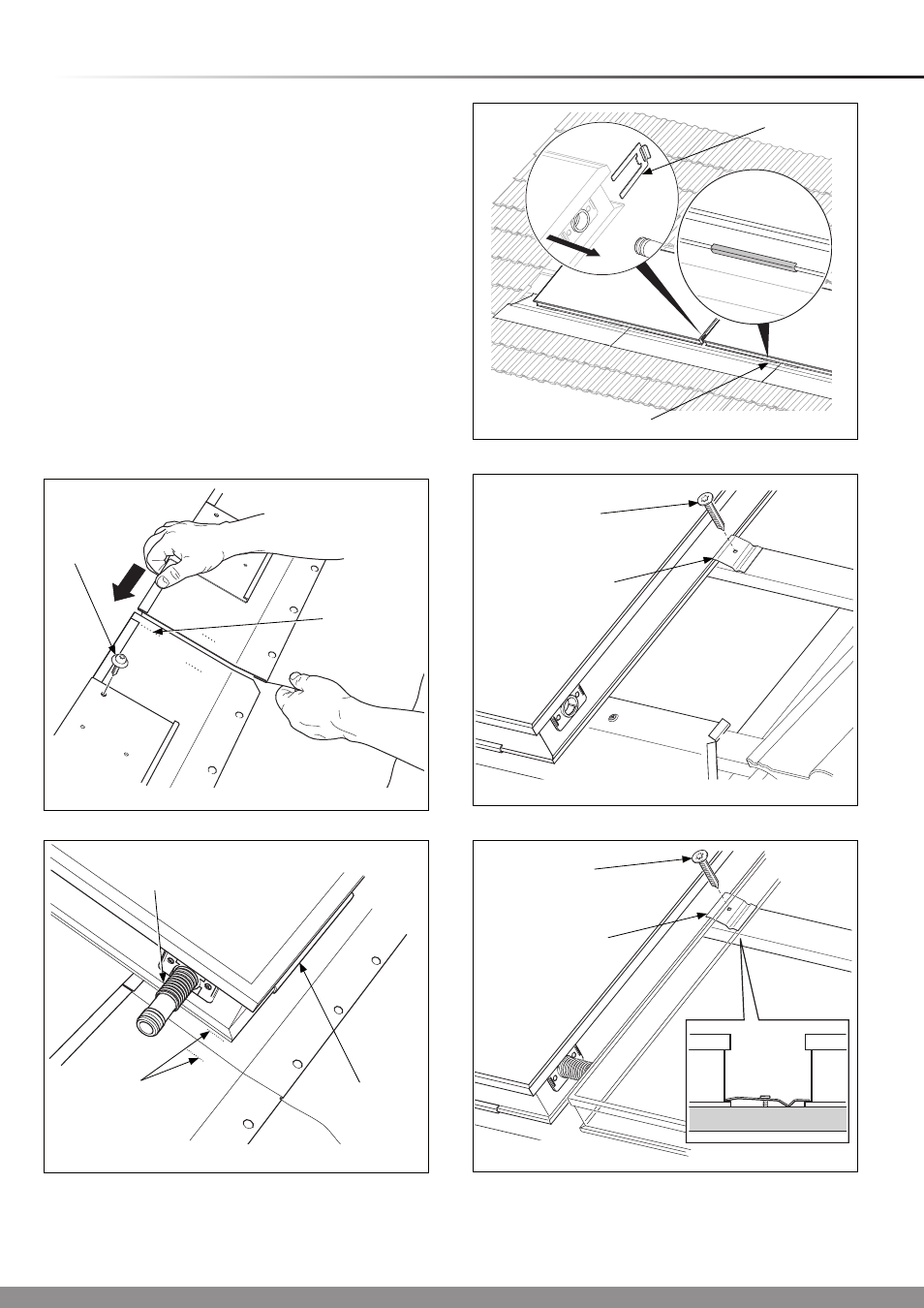

Diagram 6.4
SCREW
(No.1)
LOWER
FLASHING
ALIGNMENT
MARK
6 Two Collector Flashing Kit - 22 0 - 75 0
14969
LOCATION
CHANNEL
ALIGNMENT
MARKS
PIPE
COUPLING
Diagram 6.5
Position the collector panel protective side uppermost into the
location channel as shown in diagram 6.5.
NOTE: The design is symmetrical and does not have a top or
bottom.
Insert the pipe couplings into the hydraulic socket connection.
The pipe coupling should be inserted up to the stop and
secured with its securing clip.
Place the next collector into its position as previously
described, then push the collector, ensuring engagement of
the pipe coupling, see diagram 6.5, and align with the marks
on the flashing.
With the screws (No.3) and clamps and Torx bit supplied,
secure to the roof battens, see diagram 6.7.
For securing between collectors the inner clamp should be
secured as shown and grip both collector edges, see diagram
6.8.
Diagram 6.6
15127
RETAINING
CLIP
Diagram 6.7
14974
INNER CLAMP
SCREW
(No.3)
LOCATION CHANNEL
Diagram 6.8
15195
INNER CLAMP
SCREW
(No.3)
