Display modes, Operating menu, Special functions – Glow-worm Clearly Solar Controller User Manual
Page 13

13

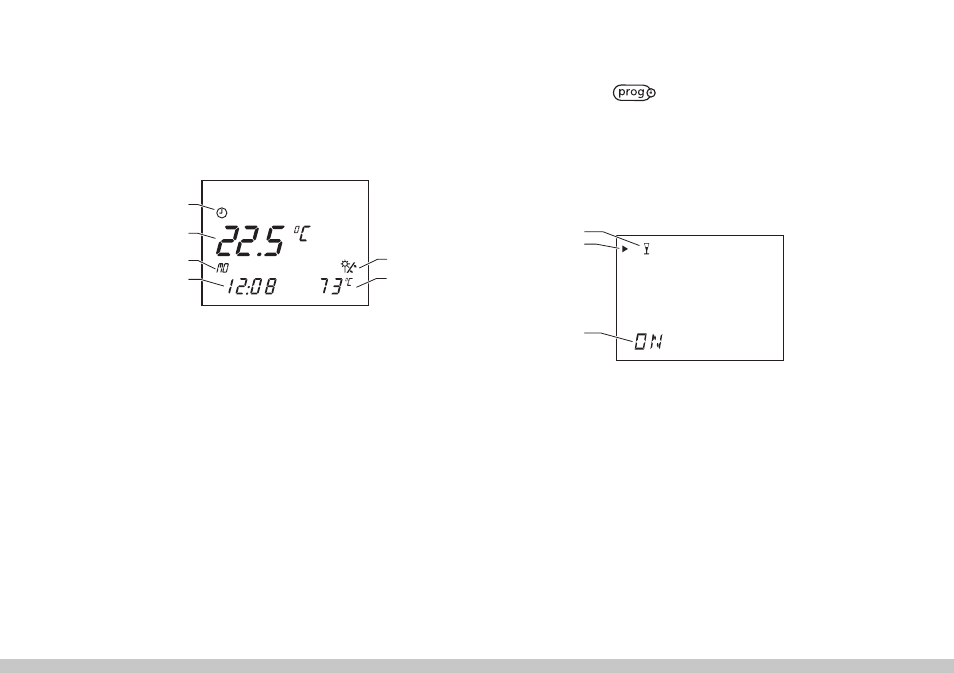

Display Modes
1
2
4
5
6
3
Operating menu
The operating menu appears when the appliance is
switched on. Please refer to Settings section for
information on how to set and change the values.
Operating menu
Key
1 Indicates that solar gain is available (collector pump is
running)
2 Actual collector temperature
3 Current time, or LEG for Legionella protection function
(if active)
4 Current day of the week
5 Actual cylinder temperature
6 Current operating mode
Special functions
By pressing the
button, you can access the special
functions: party, one-time cylinder reheat and holiday
function. After approximately ten seconds, the selected
function is activated and the display returns to the main
operating screen.
1
2
3
Special functions
Key
1 Special function activated
2 Cursor (marks the special function selected)
3 Symbol for the special function selected
Diagram 3
Diagram 4
