12

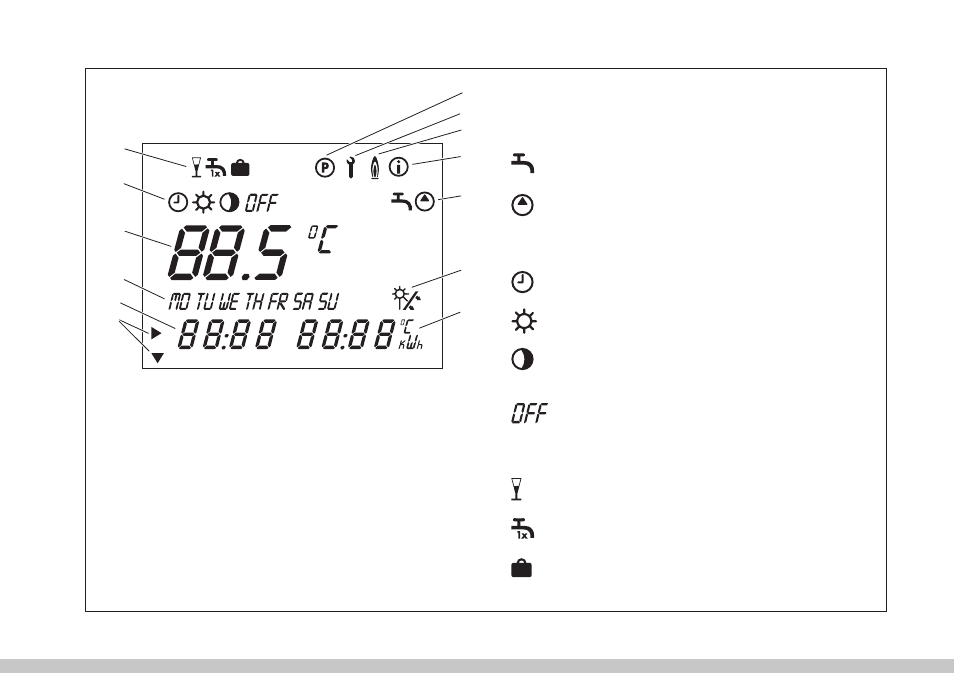

Display overview

Display

Display symbols

Timer programs:

Cylinder reheat

Not used

Operating modes:

Cylinder reheat function in timed mode

Cylinder reheat function in constant mode

No cylinder reheat

Solar pump(s) not activated

No cylinder reheat

Special functions:

Party function

One time cylinder reheat

Holiday function

Key

1 Programming menu

2 Service/diagnostic menu

3 Cylinder reheat

4 Not used

5 Info menu

6 Solar gain (blinks if solar gain is available)

7 Units

8 Cursor

9 Multifunction display

10 Days of the week

11 Target/actual value

12 Operating modes

13 Special functions

4

1

2

3

5

6

7

8

9

10

11

12

13

Diagram 2
