Installation – Glow-worm Clearly Hybrid - Compact Hydraulic Module HB User Manual
Page 8
0020096881_02 - 08/10 - Glow-worm
- 6 -
INSTALLATION
6.3

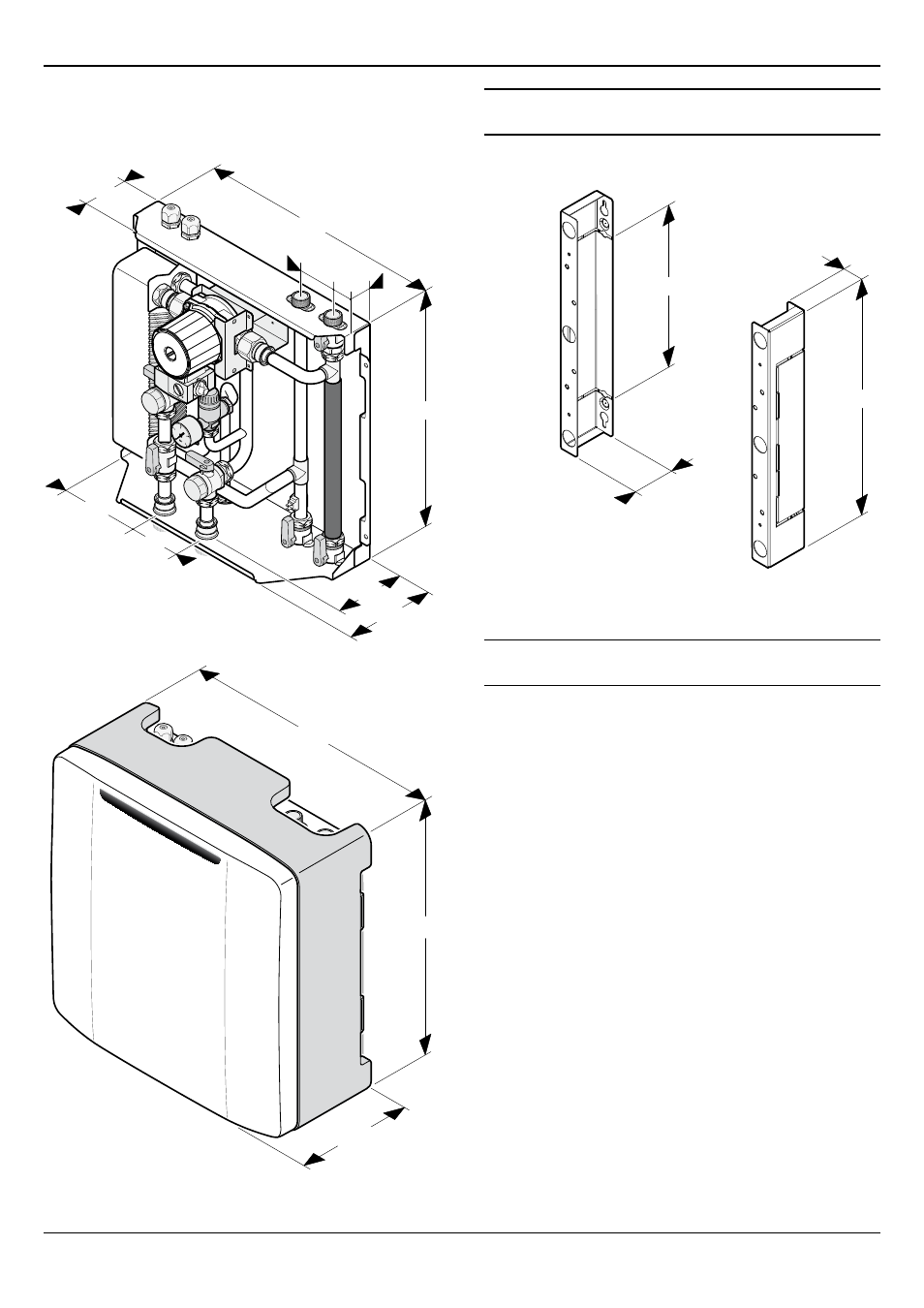

Dimensions
6.3.1
Hydraulic module
81
65
41
431
414
122
157
36
137
85
470
476
200
i
Appliance weight : 12,5 kg
6.3.2
frame
34
414
72
284
6.4
Mounting
i
Depending on the installation, you may install the
frame supplied with the appliance.
• Make sure that the equipment used for implementing the
installation is compatible with that of the appliance.
• Determine the assembly location. See the "Appliance
location" chapter.
• The applications should be anchored in accordance with
the characteristics of the supporting wall and must take into
account the weight of the appliance.
