Installation – Glow-worm Clearly Heat Pumps Envirosorb2 User Manual
Page 26
0020117819_00 - 01/11 - Glow-worm
- 24 -

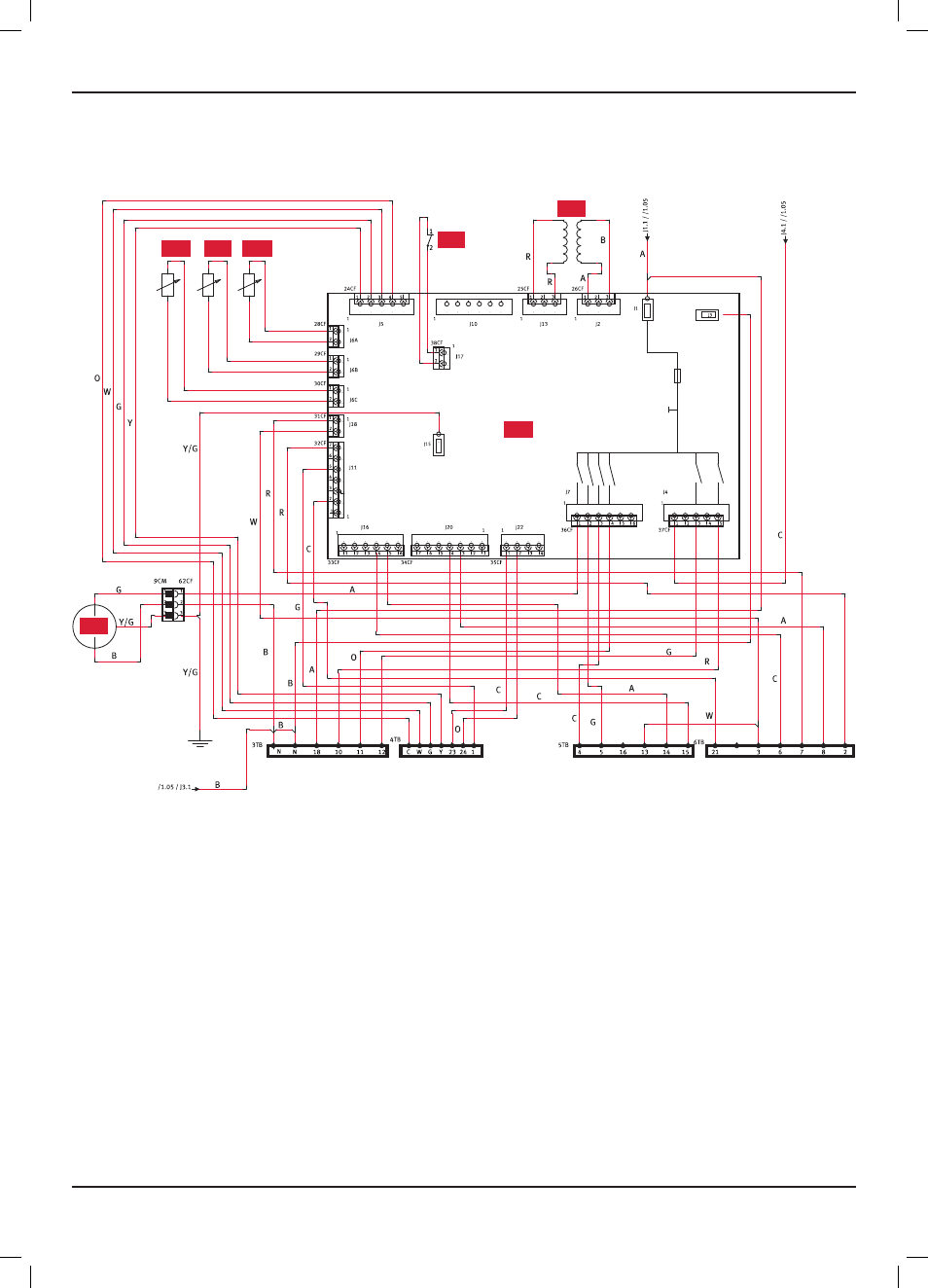

13.5 Wiring diagram
13.5.1
Command board 7kW, 12kW, 14kW
1FS
1T
1TR
1PS
1LWT
1EWT
1PCB
Key
1PS
Circulator
1LWT
flow temperature sensor for heat pump circuit
1TR
Temperature sensor for detecting the end of defrost
1EWT
Temperature sensor for flow of heat pump circuit
1fS
flow detector
1T
Transformer
1PCb
Command board
INSTAllATION
