FY-91Q Connection to AP117 ON Screen Display
1. You can connect the FY-91Q to the AP117 OSD module to display the
telemetry data onto your On Screen Display.

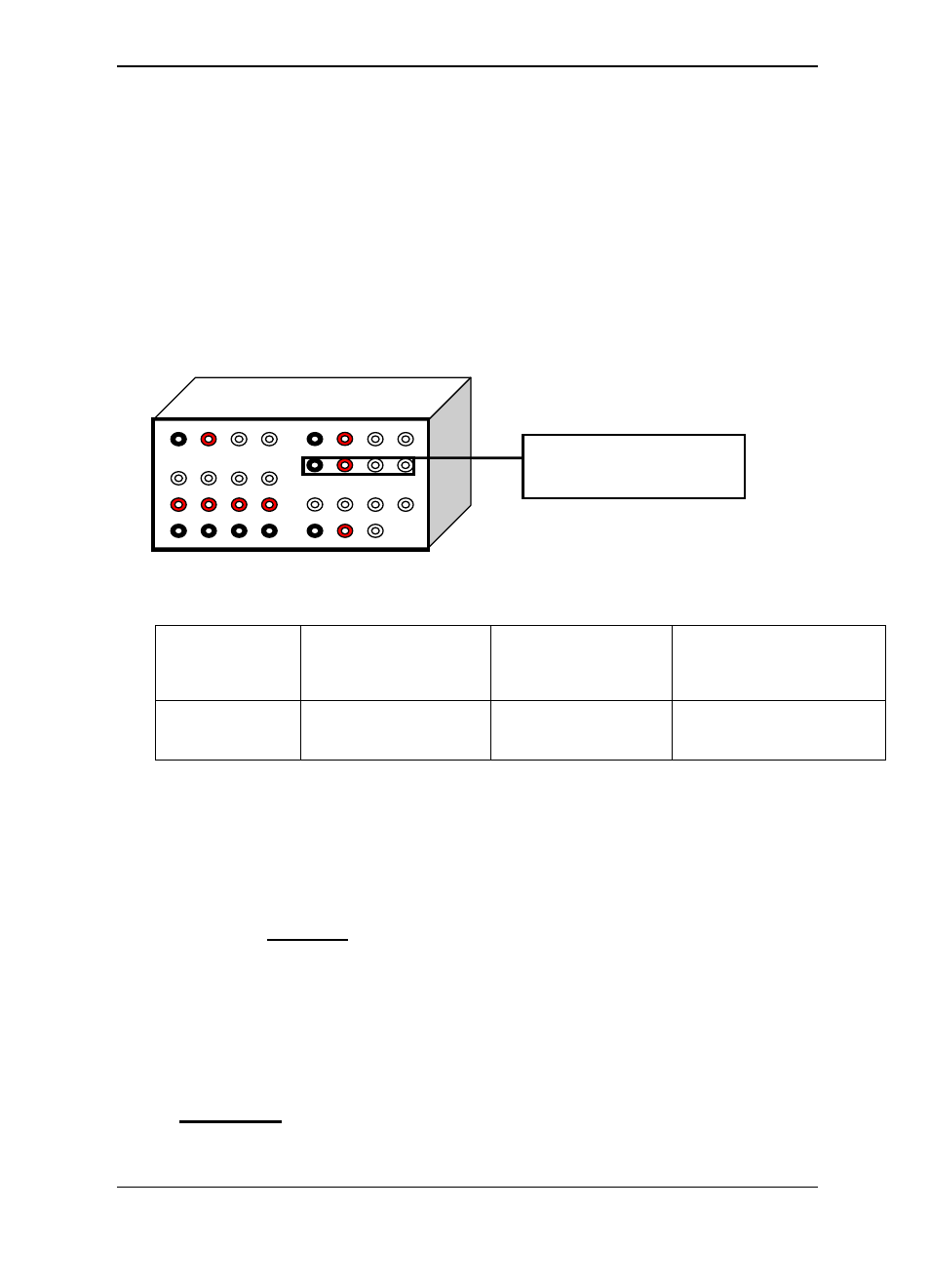

2. Connection is as shown below:
1. Updating the Firmware
Refer to AP117 Manual on more details of the display.
Flight Modes
Mode 1
(Stabilized Mode)
Mode 2
(Hover Hold)
Mode 3
(RTH Mode)
AP117 Display ABM FAF RTL
FY-91Q / FY-90Q Basic System Requirements
Electronic Speed Control (ESC) Requirements:
1. ESCs that can handle an input signal pulse frequency over 400Hz is a must.
2. Use only ESCs that has a manually settable throttle end points. All endpoints
MUST be manually matched.
3. ESCs with Fast response rates are recommended (high and mid timing
settable). Too slow response will result in failure to maintain Quad flight
stabilization and control.
4. Do not use ESCs that lose their throttle endpoint settings at each power off
(e.g. Castle Thunderbird series).
5. Do not use ESCs that must be "armed" before you can set the throttle
endpoints (Castle Thunderbirds, Hobby King SS ESCs, etc.). With this ESC
FY-91Q Module
Data port to connect to the
AP117
