a) DoS requires a minimum of 6-channel RC receiver.
b) 4 Receiver channels are used for aileron (channel 1), elevator (channel 2)
，throttle
(channel 3) and rudder (channel 4) signal output. Connect these 4 receiver output
signals to the DoS with the supplied wires (pay attention to the color of each channel ).
c) a free Receiver channels are required to control the DoS Flight Modes (a 3-position
switch ,”SW1”).
d)the other 3-position switch(SW2) is not used in firmware V2.0,so you do not need to
connect.

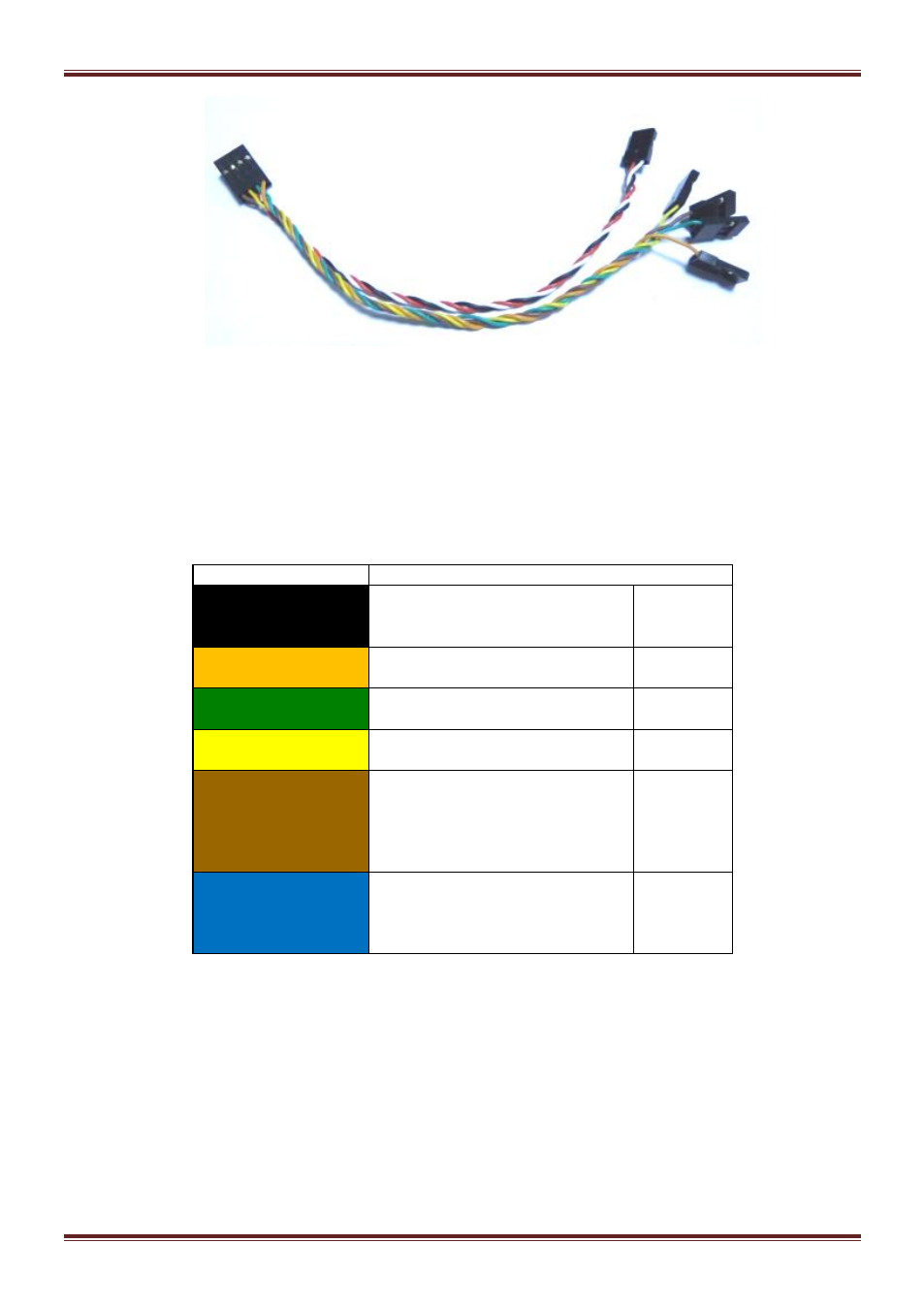

Wire color Receive channel
White
(bundled with red
& black)
aileron
Channel
1
orange elevator
Channel
2
green throttle
Channel
3
yellow rudder
Channel
4
brown
SW 1
Any free channel
controlled by
A 3-way switch or dial
knob
Channel
5
blue
SW 2(not used)
Any free channel
controlled by
A 3-way switch or dial knob
Channel
6
Attention:RC mode Setting of your controller has to be fixed wing model, and every
channels’ maximum and minimum value to be the default value (100%), all the sticks trim
to 0
, also cancel all the curve set .
8. Motor start-up instruction:
Start Motor：When using multi-rotor firmware, pushing throttle stick before takeoff will
not start motors. You have to execute Combination Stick Commands (CSC) in stabilized
mode
(Can not in Fixed altitude flight Mode) to start motors.
Meet the following conditions:
