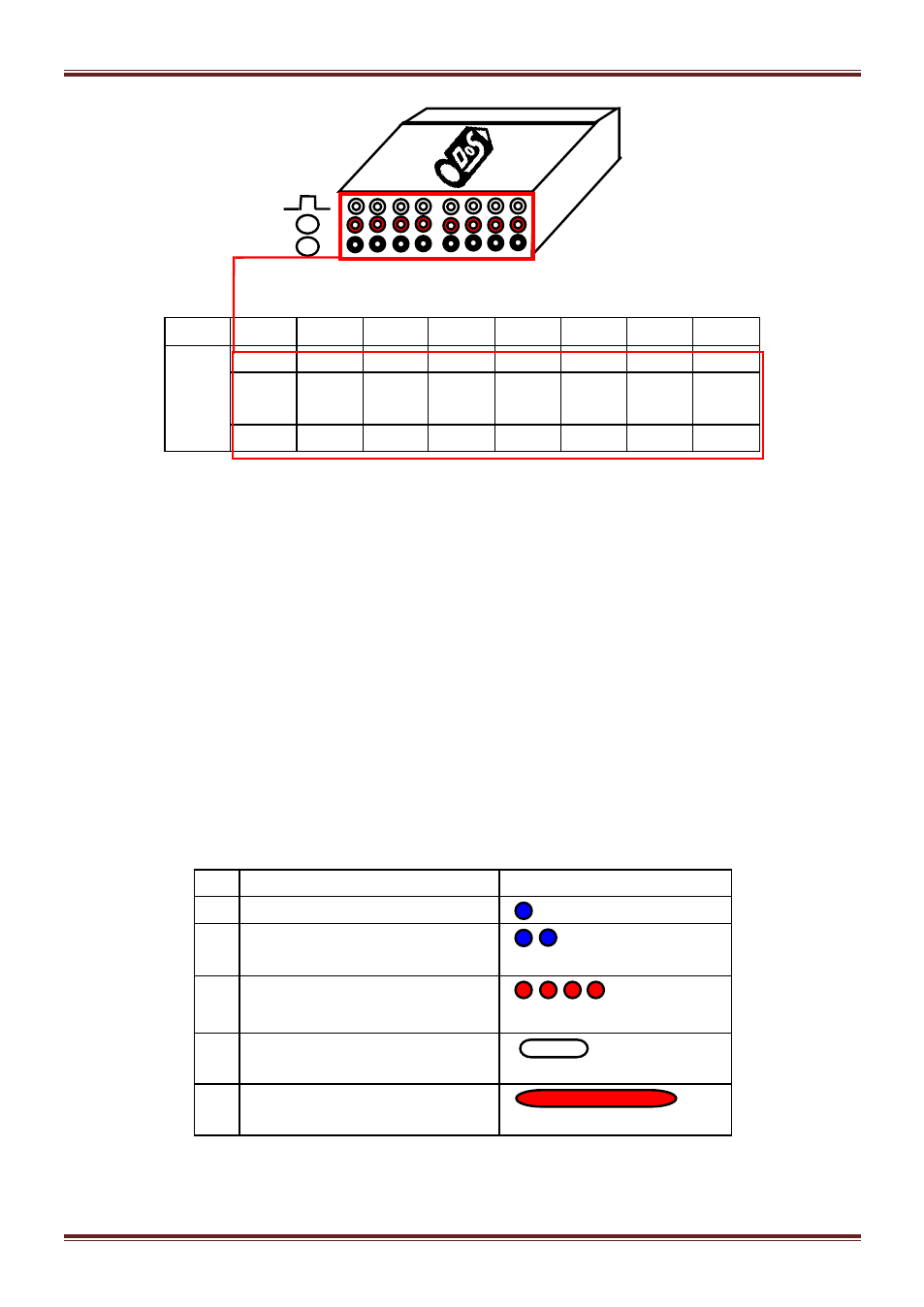

ESC output interface
DoS’s S1 ~ S8 ports are connected separately to ESC M1 ~ M8.
Typically 1020us is lower limit, 1520us is neutral and 2020us is upper limit, frequency is
400Hz.
4. Power Supply:
●DoS input voltage is 4.0 ~ 6.0 V, you can use a stabilized voltage supply ,or directly use
ESC’s +5 V power supply, most of the ESC power supply can meet the requirements;
●DoS and the RC receiver use the same power supply via the RC receiver connection
wiring.
●VERY IMPORTANT: Only one BEC power source should be used. If all four ESCs
have internal BEC, choose only one to supply power. Disconnect the red wire (positive)
of the other ESCs,but reserve the GND and Signal wirings
.
5. Indicator light instruction:
NO. operating mode
LED
1
stabilized mode
Single flash
2
fixed altitude mode
Continuous Double
flash each loop
3
Gyro needs Reset or is moving
…………
Red light continuous flash
4
During the gyro reset
Flash white light
for almost one second
5
too much vibration
red light stay on solid
6. Vibration damping installation:
No.
S8
S7
S6
S5
S4
S3
S2
S1
Servo
Output
Interfa
ce
M8
M7
M6
M5
M4
M3
M2
M1
Power
+5V
Power
+5V
Power
+5V
Power
+5V
Power
+5V
Power
+5V
Power
+5V
Power
+5V
GND
GND
GND
GND
GND
GND
GND
GND
S2 S1
S3
S4
S5
S6
S7
S8
－
＋
