Eskape ™ 400 Hardwater Series (69164)
HIGH PERFORMANCE ICE FISHING GEAR
®
Page 13
GetEskimo.com
1-800-345-6007

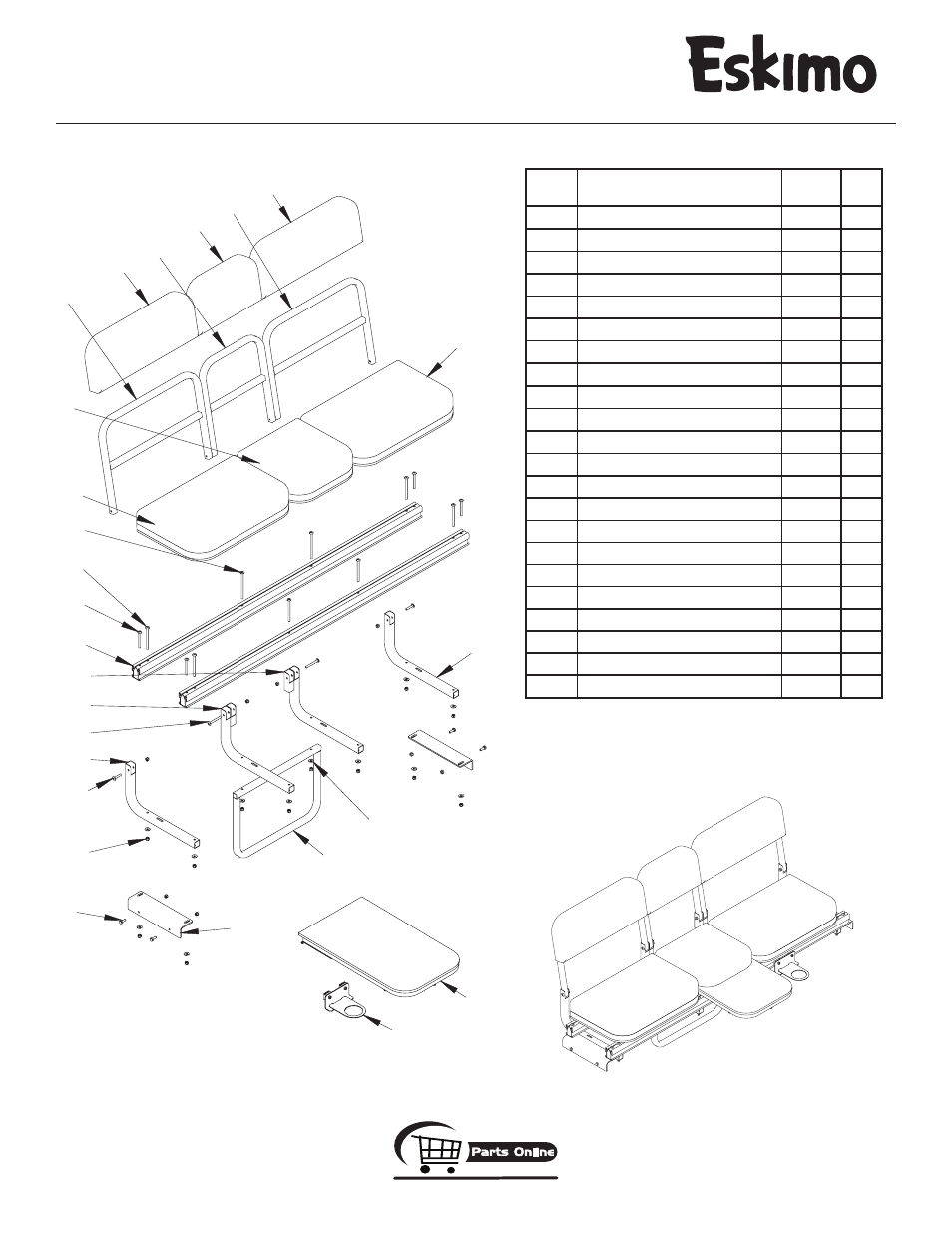

ESKAPE 400 SEAT PARTS
REf.
NO. DESCRIPTION
PART
NO. QTy.
1 BOLT 1/4-20 X 3/4” HH gR5 8930 4
2 WASHER 1/4” 48261 12
3 BOLT, 1/4-20 X 1-1/4” PTH gR2 67400 2
4 BOLT 1/4-20 X 3-1/2” PTH gR5 67402 6
5 BOLT 1/4-20 X 4-1/4” PTH gR5 67403 2
6 BOLT 1/4-20 X 2-1/2” PTH gR5 67430 4
7 NUT 1/4-20 HEX NyLOC 67538 20
8 SEAT ASSEMBLy, 12” RED 68004 1
9 BACkREST PAD, 12” RED 68008 1
10 SEAT BRACE WELDMENT 68024 1
11 SEAT ASSEMBLy, 19” RED 68153 2
12 BACkREST PAD, 19” RED 68154 2
13 RAIL, BENCH SEAT 68301 2
14 BRACkET, SEAT MOUNT 68304 2
15 BRACkET, BACkREST LEFT 68310 1
16 BRACkET, BACkREST OUTER 68322 2
17 BRACkET, BACkREST RIgHT 68323 1
18 BACkREST WELDMENT, 19” 68342 2
19 BACkREST WELDMENT, 12” 68345 1
20 TABLE 68447 1
21 ROD HOLDER ASSEMBLy 68449 1
22 BOLT 1/4-20 X 2-1/4” PTH gR5 69279 2
3
7
16
14
10
4
2
21
12
18
9
19
12
18
11
11
8
6
5
13
1
15
17
22
16
20
