Operator's Manual
ESKIMO ® FlipMo ™ 2 Inferno
FLIPMO ™ 2 INFERNO PARTS LIST
REF.
NO. DESCRIPTION PART NO. QTY.
1 SLED 69390 1
2 PLATE CORNER MOUNT FLIPMO 3 11599 2
3 RISER HINGE A 68052 1
4 RISER HINGE B 68053 1
5 ASSEMBLY POLE SPREADER 19.125” 15706 2
6 ASSEMBLY HINGE 3 MAN A 68141 1
7 ASSEMBLY HINGE 3 MAN B 68142 1
8 BRACE SUPPORT HINGE 11203 2
9 ASSEMBLY POLE REAR SPREADER 49.5“ 15703 1
10 ASSEMBLY TOP CROSS BRACE W PLASTIC 72.45” 68131 3
11 ASSEMBLY BOT CROSS BRACE W/PLASTIC E300 68129 1
12 ASSEMBLY POLE FRONT SPREADER 61” 15702 1
13 ASSEMBLY POLE SPREADER 22.5” 15700 2
14 CLIP POLE RETAINER 15708 12
ITEMS BELOW NOT SHOWN
- WASHER 1/4” FLAT ZINC 48261 88
- NUT 1/4-20 HNYLK ZN 67538 40
- BOLT 1/4-20 X 2 1/4” HHCS GR5 ZN 48271 8
- BOLT 1/4-20 X 1 1/4” HHCS GR5 ZN 8909 8
- BOLT 1/4-20 X 3/4” HH GR5 ZN 8930 6
- BOLT 1/4-20 X 1” HHCS GR5 ZN 69345 6
- BOLT 10-24 X 1/2 PPHMS GR5 ZN F-T 4827 6
- NUT 10-24 HNYLK ZN 53606 6
- BOLT 1/4-20 X 1-1/2 HHCS GR5 ZN 48240 6
- ROPE 1/4” X 8’ TWISTED BLK 8930 1
- SCREW 6 X 3/8” PTHA ZN 69629 13
- EDGE TRIM 1/4” CUT TO 114 INCH 69306 1
- GEAR NET 15596 1

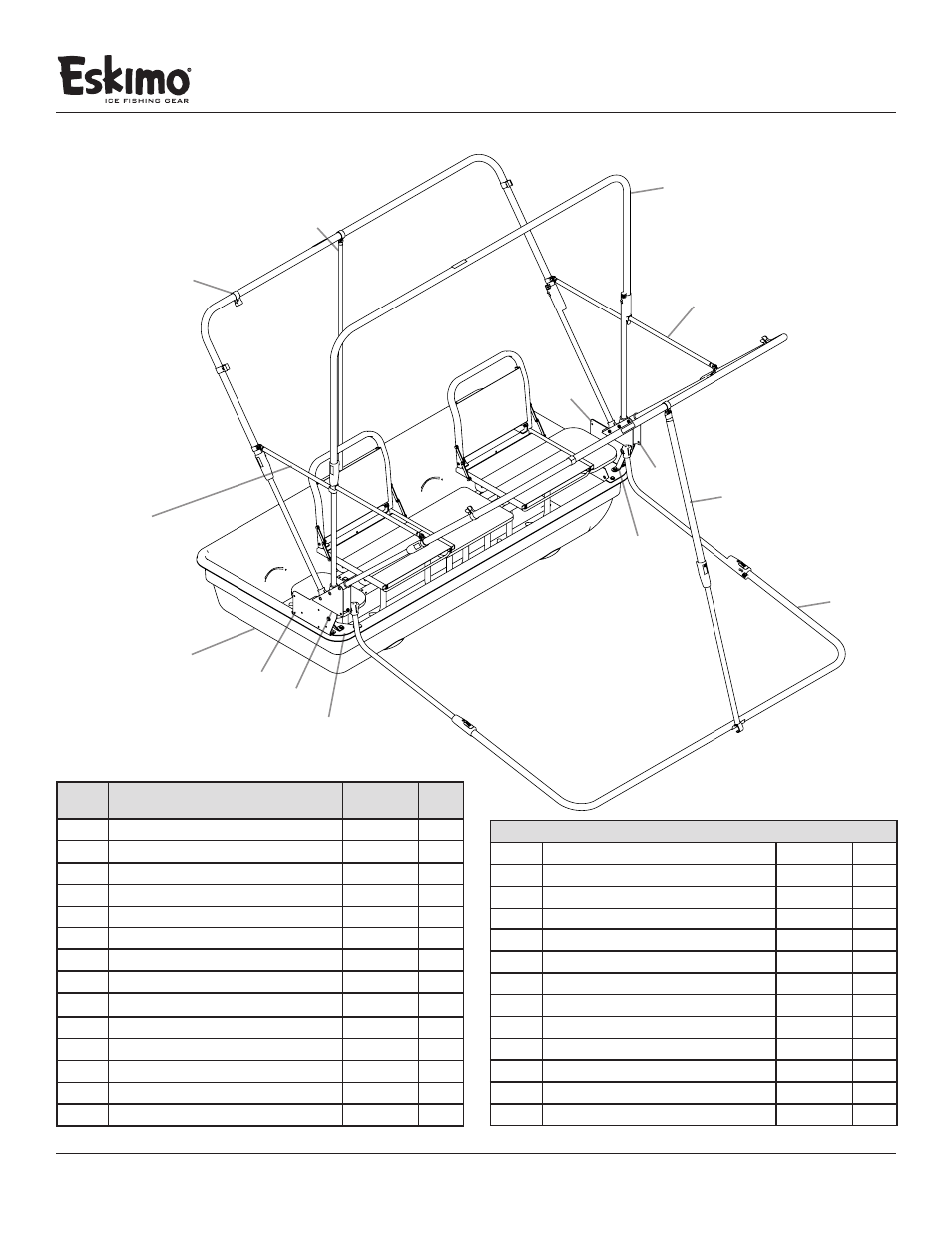

PARTS EXPLOSIONS
FlipMo ™ 2 Inferno
1
2
3
4
5
6
7
8
9
10
11
12
13
14
