SHELTER FRAME/SKIN INSTALLATION

14. Insert the 3 upright poles from each hinge (68141/68142) into

the (3) Top Cross Braces (68131). Push the snap button inward

to allow the Top Cross Brace to slide over the upright hinge

poles. Adjust the Top Cross Braces on the hinge to be in the

transport position (lowest collapsed height). SEE FIGURE 9

15. Unfold the skin and locate the Eskimo

logo near the zippered

door, which is in the front of the sled. With the outer part of

the shelter skin lying facing down, locate the (3) pole sleeves

on the bottom front, right side, and left side of the shelter

skin. Slide the Lower Cross Brace (68129) through the (3) pole

sleeves. SEE FIGURE 10

16. Insert a hinge “J-Pole” from each hinge (68141/68142) into

the assembled lower frame (68129) with the skin attached to

the frame. Push snap button inward to allow the Lower Cross

Brace to slide over the (J-Poles) attached to the hinges. SEE

FIGURE 10

17. Attach the door spreader pole assembly (15702) using a ¼-20

x 3/4” bolt and

¼-20

nylock nut. To attach the spreader poles

the hardware should all be ¼-20 x 3/4” bolts and ¼-20 nylock

nuts. This hardware is already attached to the assembly and

will need to be removed for proper installation. Push the

pole clamp (15705) onto the front upper cross brace and

reassemble (15702), the reassembly will fasten the door

spreader pole to the front upper cross brace. After assembly

fully extend the door spreader pole and clip to the lower

cross brace. The front upper cross brace should now be self-

supporting. SEE FIGURE 11

18. To attach the rear spreader (15703) pole follow the assembly

instructions above for the previous spreader pole attachment.

Once the rear pole assembly is attached to the rear upper

cross brace insert the plastic stud into the hole centered on

the rear lip of the sled. This assembly will make the rear upper

cross pole self-supporting. SEE FIGURE 12

19. Attach the rear side spreaders (15706) to the rear upper cross

brace. The attachment is similar to the previous spreader pole

assemblies. Repeat assembly for other side also attaching to

the rear upper cross brace. Once both spreader poles are in

place clip them to the middle upper cross brace. This will make

the middle upper cross brace self-supporting. SEE FIGURE

20. Attach the remaining front side spreaders (15700) to the front

upper cross brace. Assembly is similar to previous assembly

at Step 17. Once both spreader poles are in place clip them to

the middle upper cross brace. This will complete the spreader

pole installation. SEE FIGURE 14

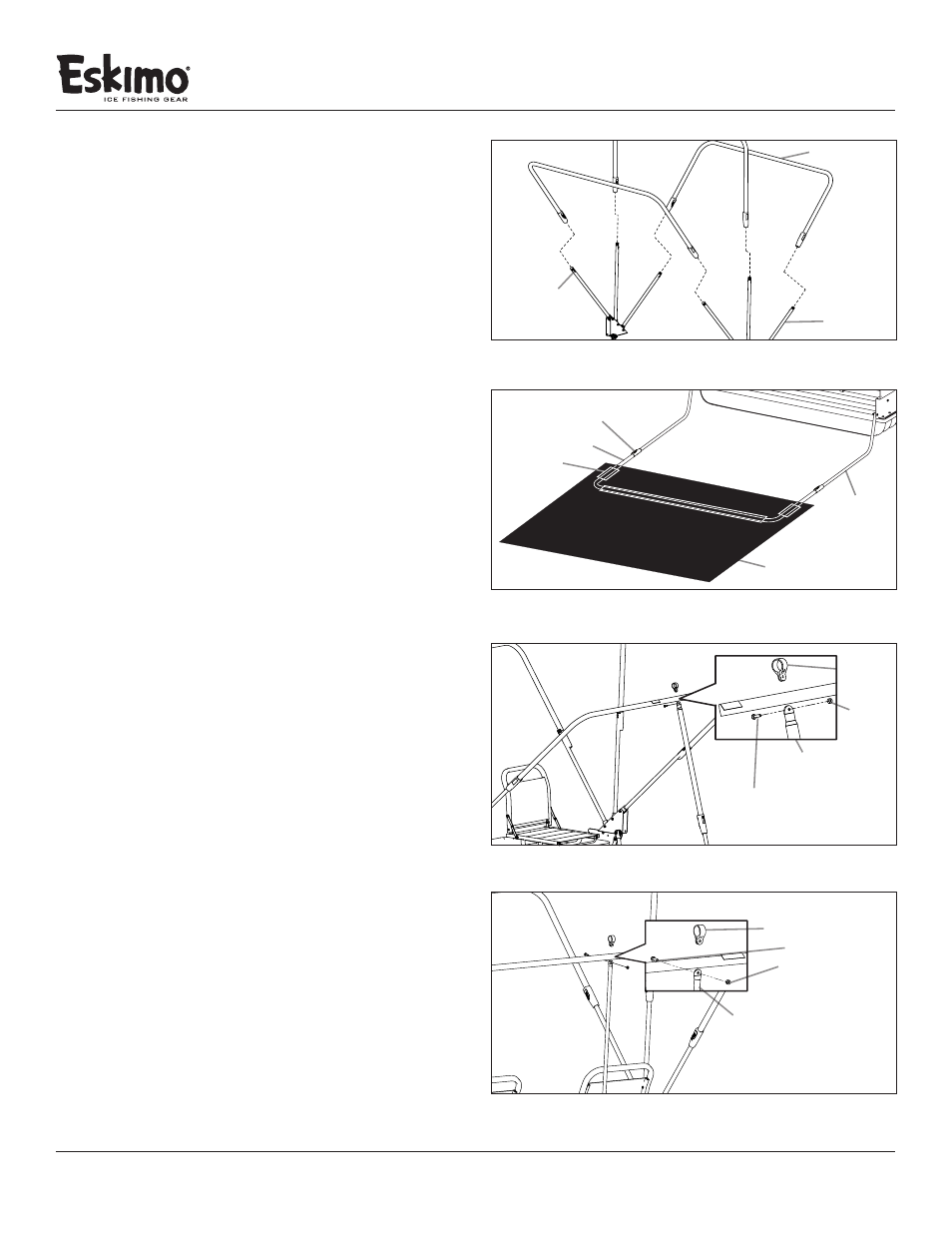

FIGURE 9

upright pole

FIGURE 10

hinge J-pole

fabric sleeve

skin

FIGURE 11

door spreader

pole assembly

¼-20 x 3/4” bolt

FIGURE 12

pole clamp

top cross brace

snap button

lower cross brace
