5 Check for parts online at www.GetEskimo.com or call 800-345-6007 M-F 8-5 CDT
Operator's Manual
ESKIMO ® FlipMo ™ 2 Inferno
6. Attach the seat rail (14818) through holes #3 and #4. As
mentioned earlier you will need to remove the bolts in this
step to fit the seat rail (14818) to the holes. Replace the
hardware and tighten. SEE FIGURE 3
7. Attach the (4) vertical frame supports (11305) by locating
the correct holes in the seat rail (14818) that are called out in
Figure 4. Using (8) ¼-20 x 2¼” bolts, (16) ¼” washers and (8)
¼-20 nylock nuts. SEE FIGURE 4
8. Tighten all hardware used to complete this portion of
assembly instructions.
VERSA SEAT AND ACCESSORY TABLE INSTALLATION
9. Locate the included (2) Versa Seats (15004), (2) small parts
bags (15752) and the (2) swivels (15016). Attach (1) swivel
(15016) to (1) Versa Seat (15004) using (4) ¼-20 x 1½” bolts,
(8) ¼” washers and (4) ¼-20 nylock nuts. Repeat this step to
assemble the other seat/swivel combination SEE FIGURE 5
10. To attach the seat/swivel assembly, from Step 9, to the seat
rail (14818), use the remaining hardware found in the small
parts bag (15752) -- (4) ¼-20 x 1½” bolts, (8) ¼” washers and
(4) ¼-20 nylock nuts. Repeat this step to assemble the other
seat/swivel assembly to the seat rail (14818). SEE FIGURE 6
11. Locate the (2) 12-1/8” x 9-1/8” tables (11331) and the (1) 17-
3/8” x 12-1/2” table. Attach (1) smaller table to the seat rail
(14818) using (2) ¼-20 x 1¼” bolts and (2) ¼” washers. Repeat
this assembly for the other small table. SEE FIGURE 7
12. Using (4) ¼-20 x 1¼” bolts and (4) ¼” washers, attach the large
table (15646) to the seat rail (14818). SEE FIGURE 8
13. Tighten all hardware used to complete this portion of
assembly instructions.
SEAT FABRIC HIDDEN FOR ASSEMBLY CLARIETY

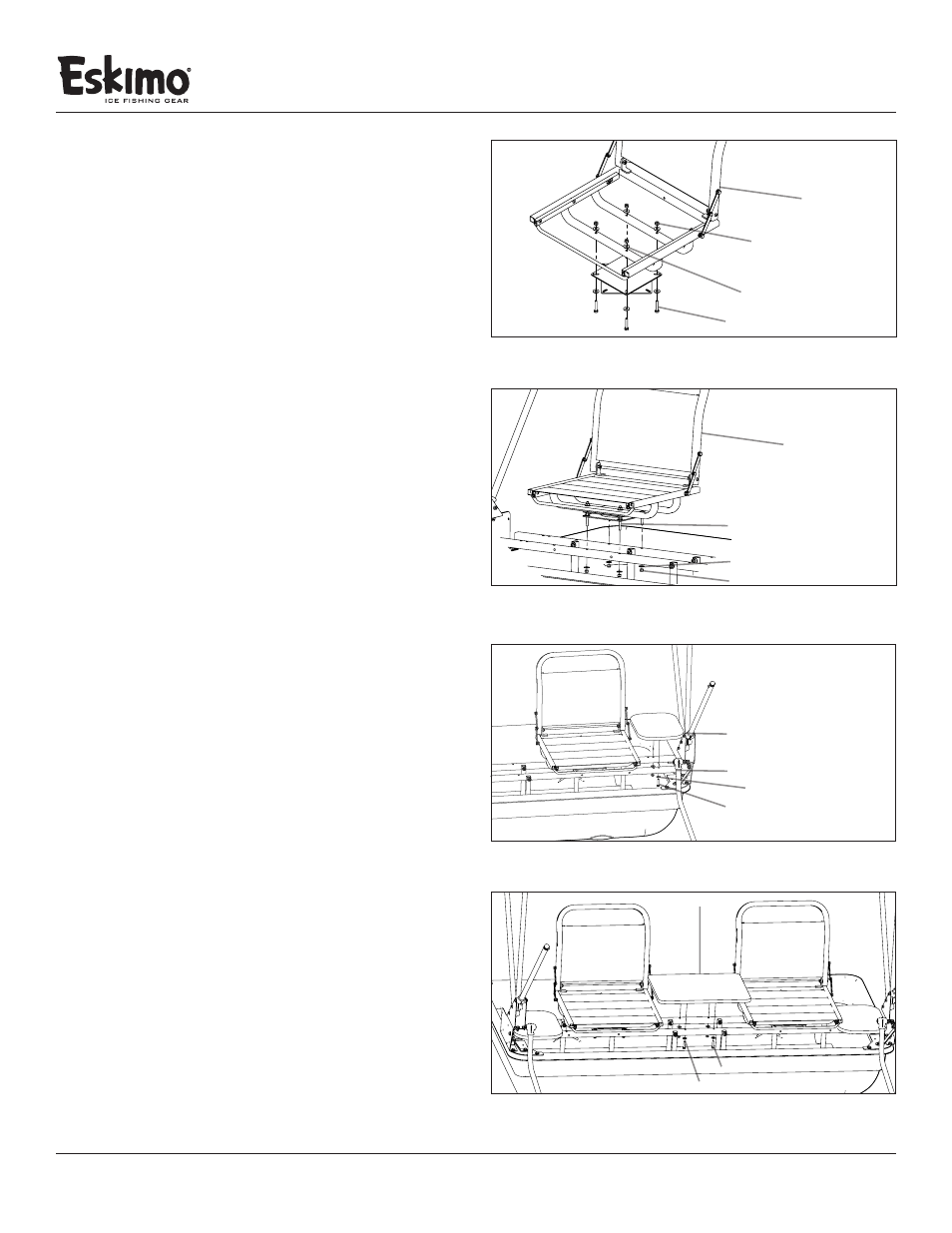

FIGURE 5
versa seat
¼” washer
¼-20 nylock nut
¼-20 X 1½” bolt
Note:
(SEAT FABRIC
HIDDEN FOR
ASSEMBLY
CLARIETY)
FIGURE 6
versa seat
¼” washer
¼-20 nylock nut
¼-20 X 1½” bolt
FIGURE 7
seat rail
¼” washer
12-1/8” x 19-1/8” table
¼-20 X 1¼” bolt
FIGURE 8
¼” washer
17-3/8” x 12-1/2” table
¼-20 X 1¼” bolt
