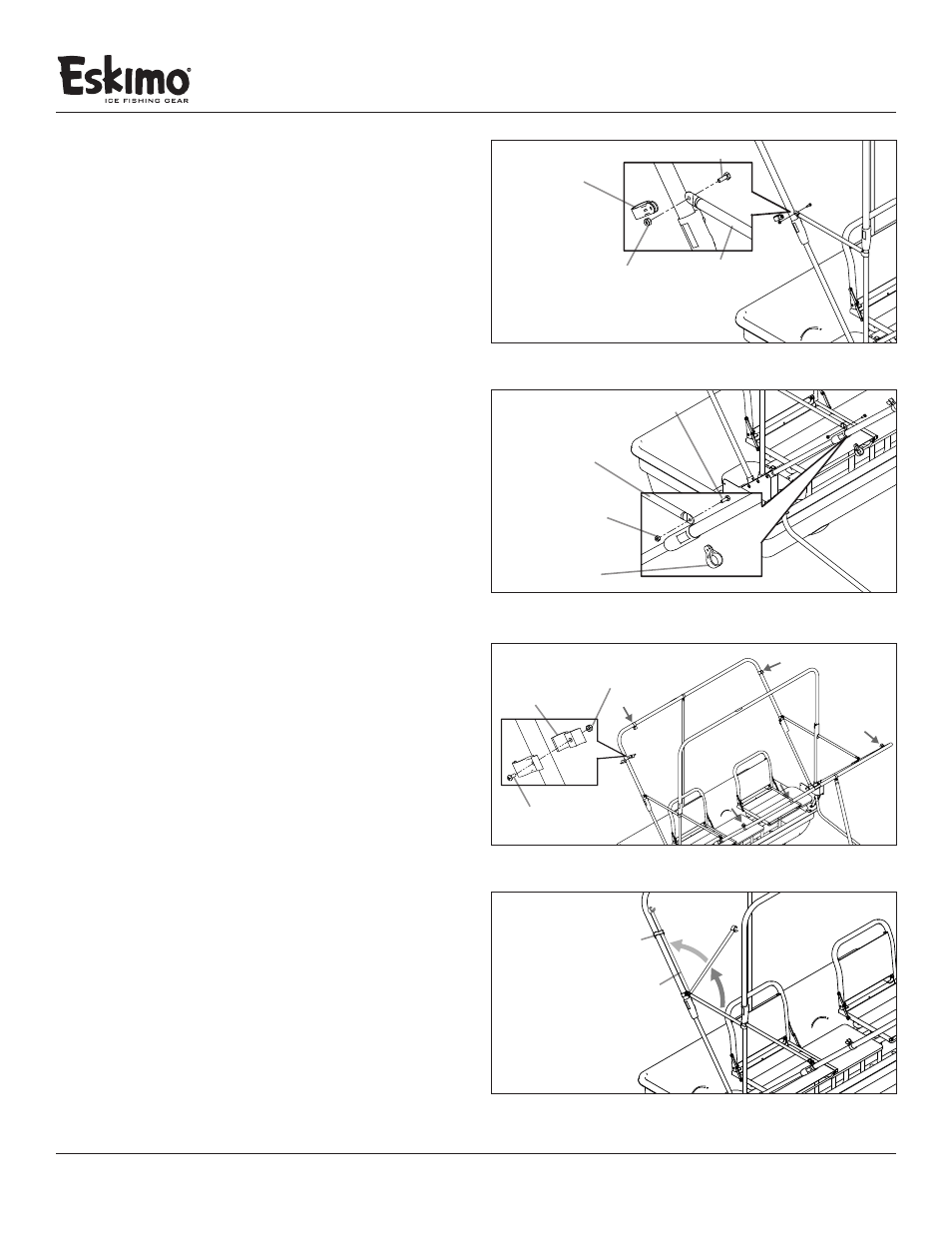

21. In the parts box there is a bag of pole retention clips. These
clips will be used in the “stow and go” position of the spreader
poles. The installation of the pole retention clips involves (2)
clip retainers (15708), (1) #10-24 nylock nut, (1) #10-24 x ½”
bolt. Tighten hardware and repeat installation until all pole
retention clips are properly attached. SEE FIGURE 15 & 16
22. With all of the frame and spreader poles in the “in use” position
it is now time to drape the shelter skin over top of the frame.
Start by lifting the rear of the shelter skin over the top of the
front frame support. Make sure that you are evenly working
the shelter skin over the supports. Continue working the
shelter skin over the rest of the frame supports until the
shelter skin lies evenly over the entire shelter.
Note: Attaching the skin can be a difficult task and is
easiest with two people to ensure proper installation
and desired fit.
23. Once the shelter skin is on the frame, move to the inside of
the shelter and attach the hook and loop retainers to the
frame supports. There will be three hook and loop retainers
per frame support.
24. After attaching all of the hook and loop retainers you are
ready to install the edge trim to the rear of the shelter. Move
to the outside of the shelter and start by identifying the edge
trim piece (69306) from the parts box. Locate the center of
the edge trim piece by folding it in half. Line up the center
of the edge trim to the best of your ability with the center of
the rear of the shelter. SEE FIGURE 17 (see next page)
25. Pull the skin taught and push the edge trim over the lip of the
sled with the shelter skin between the two. It is important to
keep the skin taught and work the edge trim evenly around
both sides of the shelter until all edge trim is in place. SEE
FIGURE 18 (see next page)
Note: When pulling the shelter skin tight, DO NOT lift the
lower frame support off the ground. Make sure all spreader
poles were properly installed before the edge trim was
attached to ensure a proper fit. Using a rubber mallet may
be helpful while attaching the edge trim to the sled lip.
26. Secure the edge trim in place using the #6 x 3/8” sheet metal
screws provided. A cordless drill and Phillips head bit is
recommended for this step, but is not necessary. SEE FIGURE
18 (see next page)
Note: Screws should be spaced evenly apart. This step does
mean you will put very small holes in your shelter skin to
keep the edge trim and skin securely attached to the sled lip.
This will in no way affect the performance of your shelter.
