E2412 Exploded View & Parts List
Item Part No. Description
Qty
1
1612-90 12″ Grate
w/out Element Clamp & Bolts
1
2
1609-50 Heating Element 208v 1500w
2
**
1609-00 Heating Element 240v 1500w
2
**
1609-20 Heating Element 440v 1500w
2
**
1609-30 Heating Element 480v 1500w
2
3
1711-00 E12 Rear Grease Trough Channel 1
4
1611-00 Element Clamp
6
5
1610-00 E Series Right Side Splatter Guard 1
6
8406-40 Switching Relay H-D
1
7
8450-92 4 Inch Leg
4
8
1704-00 E12 Leg Channel
2
9
1604-01 Grease Pan Assembly
1
10 1703-00 E12 Control Panel
1
11 1615-00 Red Indicator Light Assy
1
12 8445-15 Infi nite Knob
1
13 8425-20 Infi nite Switch
1
Part No. Description
Qty
14 4533-22 Emberglo Name Plate
1
15 1707-01 Hopper Kit
1
16 1610-10 E Series Left Side Splatter Guard
1
17 8408-52 3 Wire Terminal Strip
1
** Not Shown
1621-00 Grill Scraper
1
1625-04R Relay Repair Kit
1
8447-26 Transformer
1
AVOID ERROR IN PARTS SELECTION. When ordering, use
complete EmberGlo part number and description. Furnish
model
number, bill of material number and date code or serial
number from specifi cation plate
Detail A
Electric Broiler
Model E2412
17
4
16
1
2
3
A
7
13
14
15
11
10
8
12
9
5
6

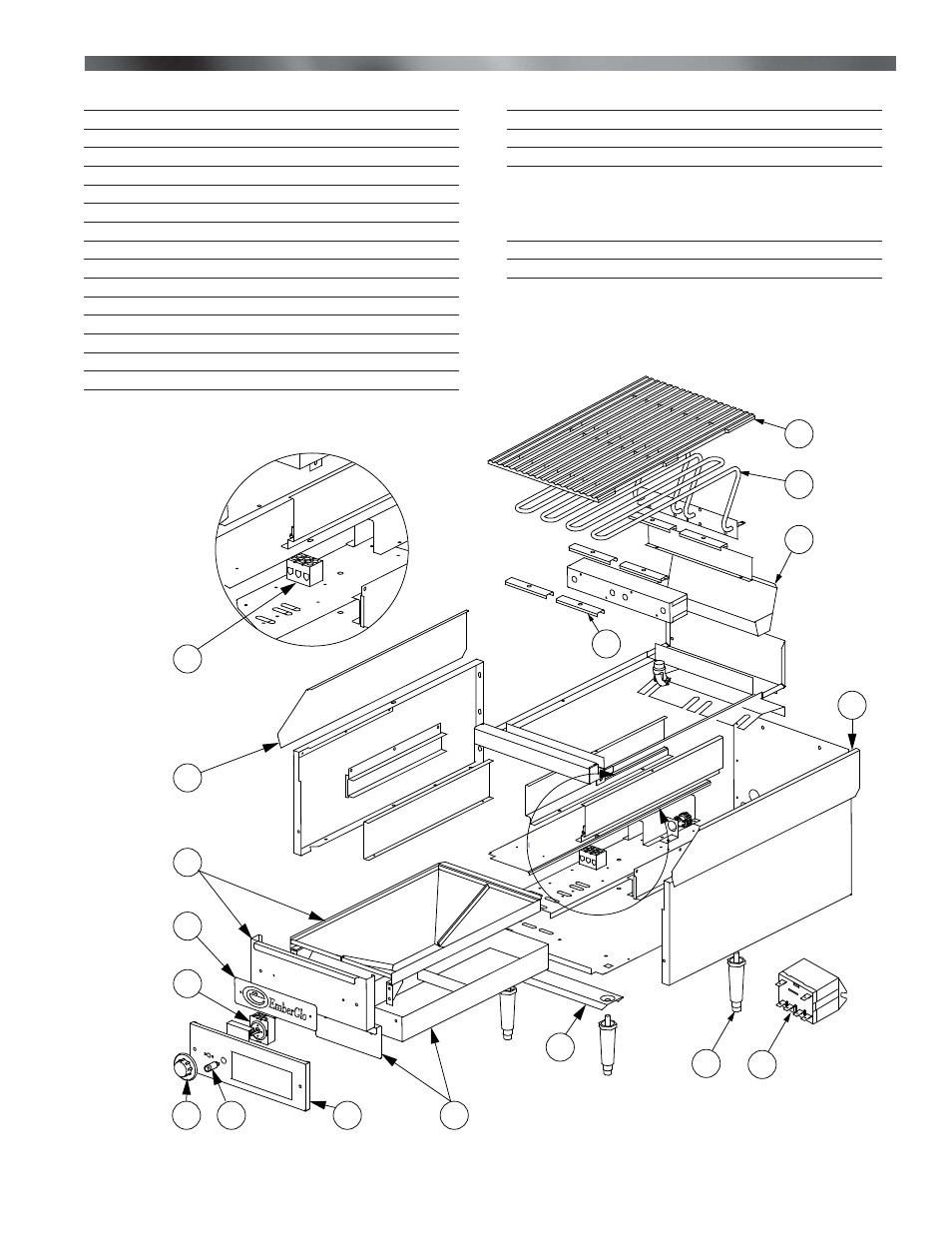

Figure 3 - Exploded View for the E2412
