Replacing the Fuses
Warning
To avoid electrical shock or damage to the meter, only use
replacement fuses
∅5x20 0.5A/250V FAST or ∅6x25 10A/250V FAST.
1. Turn the Function Rotary Switch to the OFF position and remove
the test leads from the terminals. Remove the battery cover as
shown in Figure 18. Referring to Figure 19, examine or replace
the meter’s fuses as follows:
2. Using a screwdriver, unscrew the three screws on the back case.
Remove it by lifting it up from the bottom and carefully separating
the top part from the two mounting tabs.
3. Remove either fuse by gently prying one end loose, then sliding
the fuse out of its bracket.
4. Install ONLY the specified replacement fuses with the amperage,
voltage, and speed ratings:
∅5x20 0.5A/250V FAST or ∅6x25 10A/250V FAST .
5. Reinstall the back case. Secure the back case by turning the
screws clockwise.

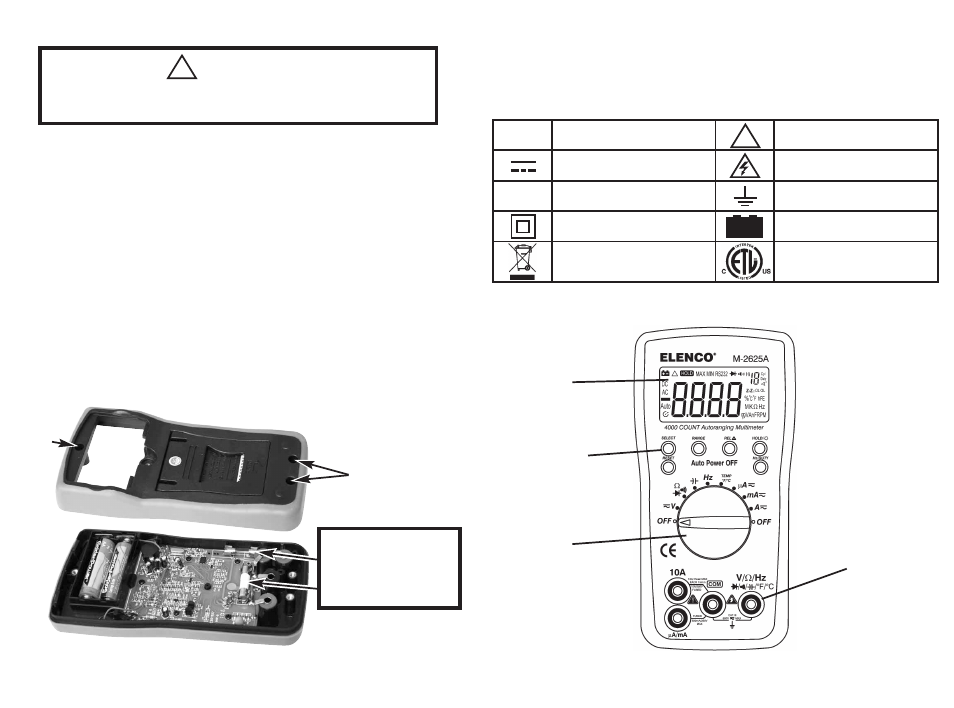

Figure 19. Fuse Replacement
-32-
3. Safety Symbols
Symbols used on the meter and in this manual are explained in
Table 2.
Table 2. International Electrical and Relative Symbols
4. Front Plate of Meter
Figure 1. Front plate of the meter
-5-
~
AC (Alternating Current) Important Information
DC (Direct Current) Caution, risk of electric shock
h
European Safety Standard Earth Ground
Double Insulated Low Battery Indicator
The symbol indicating separate
collection for electrical and
electronic equipment.
U.S. Safety Standard
!
LCD Display
Function Press
Button
Function
Rotary Switch
Input Terminal
!
Screws
Elenco ® Fuse Part #
0.5A/250V ∅ 5x20
fast blow 533004
10A/250V ∅ 6x25
fast blow 531101
+ –
Screw
