Qty. ID Name Part #
r 2 3 3-snap wire 6SC03
r 1 4 4-snap wire 6SC04
r 1 B3 Battery holder 6SCB3
r 1 Base grid 6SCBGMF
r 1 Red jumper wire 6SCJ2
r 3 L4 4.5V Lamp 6SCL4
r 1 M5 Meter 6SCM5
r 1 S1 Slide switch 6SCS1
r 1 S2 Press switch 6SCS2

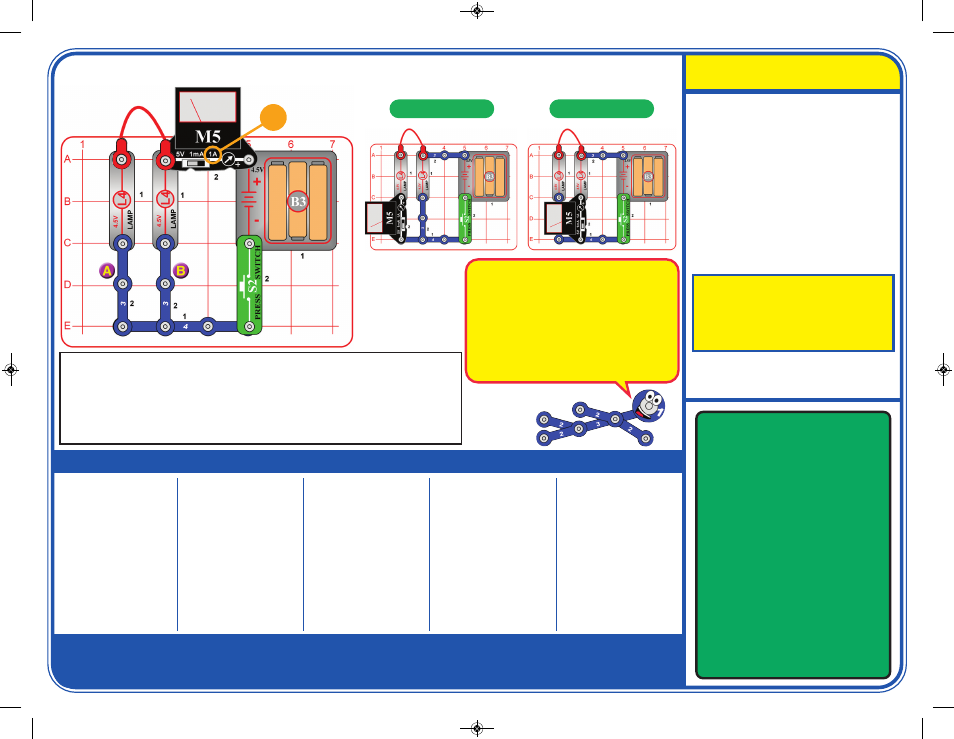

PARTS LIST Project 9 Current Divider
Set the meter (M5) to the 1A setting, and push the press switch (S2). The lamps (L4)
come on, and the meter measures the current from the batteries.
Part B: Swap the location of the meter with the 3-snap wire marked “A” (place “+” side
towards L4). Push the switch to measure the current through circuit branch “A”.
Part C: Swap the “A” location of the meter with the “B” 3-snap. Note that M5 will not fit;
just hold it in place for this test. Push the switch to measure the current the “B” branch.
1A
M5 will not fit, so
just hold it in place.
BATTERIES:
● Use only 1.5V AA type (alkaline
recommended, not included).
● Insert batteries with correct polarity.
● Non-rechargeable batteries should not
be recharged. Rechargeable batteries
should only be charged under adult
supervision, and should not be
recharged while in the product.
● Do not mix alkaline, standard (carbon-
zinc), or rechargeable (nickel-
cadmium) batteries.
● Do not mix old and new batteries.
● Remove batteries when they are used up.
● Do not short circuit the battery
terminals.
● Never throw batteries in a fire or
attempt to open its outer casing.
● Batteries are harmful if swallowed, so
keep away from small children.
1. __________ is a
measure of has fast
electricity is flowing in
a circuit.
A. Voltage
B. Current
C. Power
D. Watts
2. When several lamps
are wired in
_____________ with
each other, all will
have the same
electric current flow-
ing through them.
A. Parallel
B. Series
C. Both A & B
D. Neither A nor B
3. Batteries produce
electricity using a
_________________
reaction.
A. Nuclear
B. Hydrothermal
C. Chemical
D. Biological
4. Resistance is
________________.
A. Voltage divided
by current
B. Power times
voltage
C. Expressed in
amperes
D. Never important
in electrical
circuits
5. An incandescent light
bulb filament has
_________________
resistance when it is
cold than when it is
hot.
A. More
B. Less
C. Equal
D. All of the above
Quick Quiz:
(answers on bottom left of page 1)
Snap Circuits ® has many other fun and educational products. For a listing of local retailers who carry Snap Circuits ® visit
www.elenco.com or call us toll-free at 800-533-2441. For information about our other Snap Circuits ® kits, accessories, and
additional parts visit www.snapcircuits.net.
Part B: Part C:
The current from the batteries splits up between the
two lamps, because they are connected in parallel.
If you add up the current you measured through
circuit branches A & B, it should be the same as the
current you measured from the batteries. (Your
result may be a little different, because M5 is a
simple meter with low accuracy.)
Kirchhoff’s Current Law, an important rule for
analyzing circuits, says that all current flowing into a
point must flow out of it.
