VECTOR™ Compact Tiller
DRAG STAKE
HOLDER TUBE
LOCK
PIN
DRAG STAKE
FIGURE 6
LOCK PIN
ATTACHED
CORRECTLY
LOCK PIN
ATTACHED
INCORRECTLY
M6 BOLTS
TINE
SHIELD
FIGURE 4
FIGURE 5

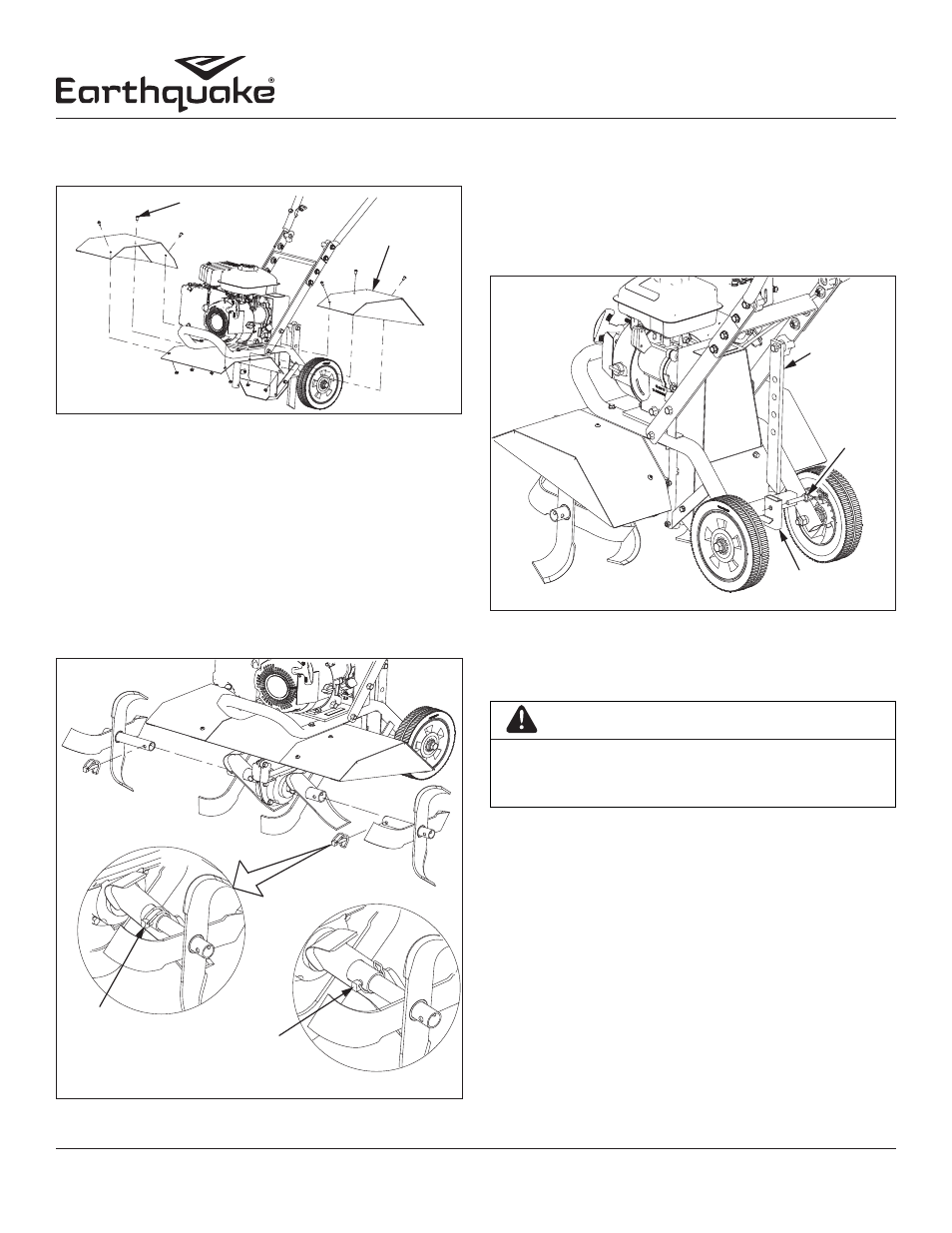

5. Assemble tine shield extensions using six (6) M6 bolts
and six (6) nylock nuts. SEE FIGURE 4
7. Install the drag stake assembly from the top down through
the drag stake holder tube on the tiller frame between the
wheels. Lock the drag stake in place using the lock pin that
is already affixed to the drag stake holder tube.
SEE FIGURE 6
6. Assemble tines to unit as follows:
NOTE: Sharp edges of tines will be away from the
operator at the top or facedown at front of
machine.
a. Fasten outer tines to the inner tines using the 8mm
x 40mm lock pins already affixed to the inner tines.
Lock pins must be installed so that the pin enters the
hole in the tine from the front of the tiller, and so the
wire bale hinges over the top of the tine pipe and
latches to the protruding pin on the back side of the
tine. SEE FIGURE 5
Fill Engine Crankcase
1. Add oil according to engine manual. Do not overfill. Use
a clean, high quality detergent oil. Container must be
marked A.P.I. Service SF - SJ. Use no special additives with
recommended oils. Do not mix oil with gasoline. Oil
level must be full. Check the oil level by removing oil fill
plug. Oil level should be up to the bottom of the fill plug
opening.
2. Always check oil level before starting engine. Refer to
engine manual for capacity and type of oil to use.
ENGINE IS SHIPPED FROM FACTORY WITHOUT OIL.
YOU MUST ADD ENGINE OIL BEFORE STARTING
ENGINE.
CAUTION
ENGINE IS SHIPPED FROM FACTORY WITHOUT
OIL. YOU MUST ADD ENGINE OIL BEFORE
STARTING ENGINE.
