Eagle Tree GPS Expander User Manual
Eagle Tree Sensors
Copyright © 2005-2010 Eagle Tree Systems, LLC
http://www.eagletreesystems.com
Instruction Manual for the Micro GPS Expander V4
Document Version 1.5
Model # GPS-V4
Thank you for your purchase! This instruction manual will guide you through the installation and operation of your GPS
V4. Please read the entire manual carefully before proceeding. If, after you read the manual, you have further
questions or problems, see the Support page on
http://www.eagletreesystems.com
for additional information, or email us at
Intended Uses
The GPS Expander V4
(the GPS)
is intended for recreational use exclusively in model planes, boats and cars. Other uses are not
supported.
Features
The GPS is designed to be used with all present Eagle Tree recording, OSD, PowerPanel LCD, and wireless telemetry products. The GPS updates at
10Hz, consumes very little power, and has battery backup for quick hot and warm starts.
Our Data Recorder software includes support for Google Earth, including live mode display, and Google Earth Track support for logged data.
The GPS includes onboard filtering, as well as a toroid ring filter, to improve signal reception, especially when used in conjunction with First Person
View video transmitters.
The GPS’s built-in LED indicates when a 3D fix has been attained, for convenient usage. The LED flashes UNTIL a 3D fix is attained, then stops
flashing.
The GPS is tiny and lightweight, making it perfect where weight and size are issues. See the Specifications section below for more information.
With our Windows software, and now with Google Earth™ software, your GPS data can be easily and fully visualized.
Supported Products
The GPS is compatible with the Eagle Tree Systems eLogger V4/V3, Flight Data Recorder V2, Car Data Recorders and Boat Data Recorders with
firmware version 5.55 or higher. It is also fully compatible with Seagull Dashboards with firmware version 4.76 or higher. If you have
firmware lower than this version, go to our support website, and download the latest software, which will update the firmware of your device.
Packing List
Your package should include the following: the GPS, and a printed version of this manual. Please check your packaging for printed addenda to this
manual which may be included if changes were made after printing.
How the GPS Works
When coupled The GPS uses satellite information to determine position, speed, altitude, course,
distance to operator, and UTC time.
Connecting the GPS to the Recorder

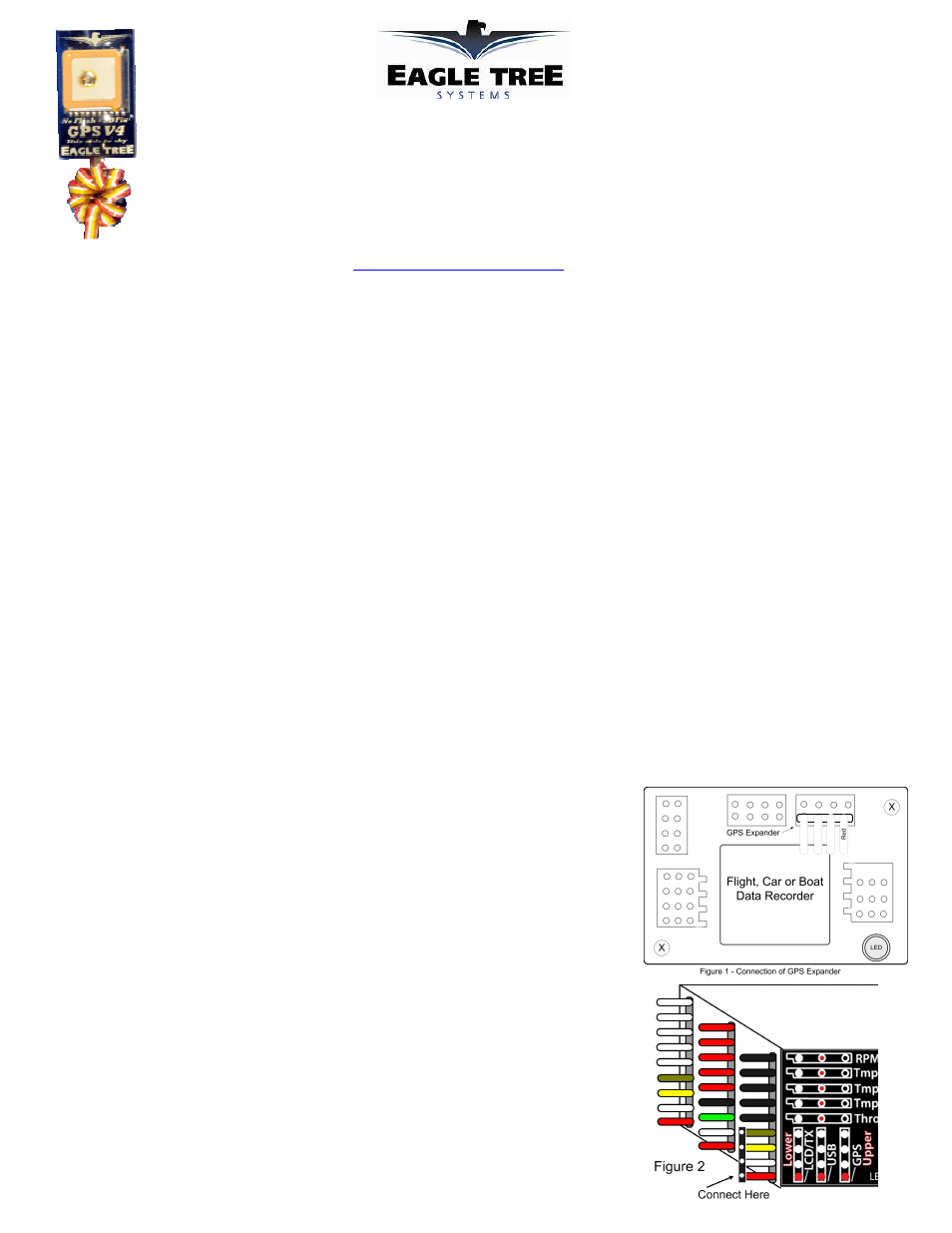

The 4 wire connector attached to the GPS plugs into the rightmost port of your Data Recorder as
shown in Figure 1. Make sure that you connect it in the correct location on the recorder, and with the
correct polarity!
Connecting the GPS to the eLogger V3/V4
The 4 wire connector attached to the GPS plugs into the eLogger V3/V4 as shown in Figure 2. Make
sure that you connect it in the correct location on the recorder, and with the correct polarity!
Note: The GPS draws significant current from the eLogger. When the eLogger is powered by a
higher voltage pack, such as an 8s or larger pack, or a pack above 30 volts, the eLogger’s
regulator may shut off after a short period when used with the GPS. If you find this is happening,
please use our “Battery Backup Harness”, part number CAB-BAT-BACK for the eLogger V3, or use
the supplied throttle Y cable with your eLogger V4, to provide supplemental power to the eLogger if
you encounter this issue.
Installing the GPS in your Model
The GPS should be mounted with Velcro in your vehicle so that the top part (with the label) is facing
toward the sky. Normally, it is satisfactory to have the GPS inside the vehicle, since the skin of most
