NOTE:.DIAGRAMS.&.ILLUSTRATIONS.ARE.NOT.TO.SCALE.
22

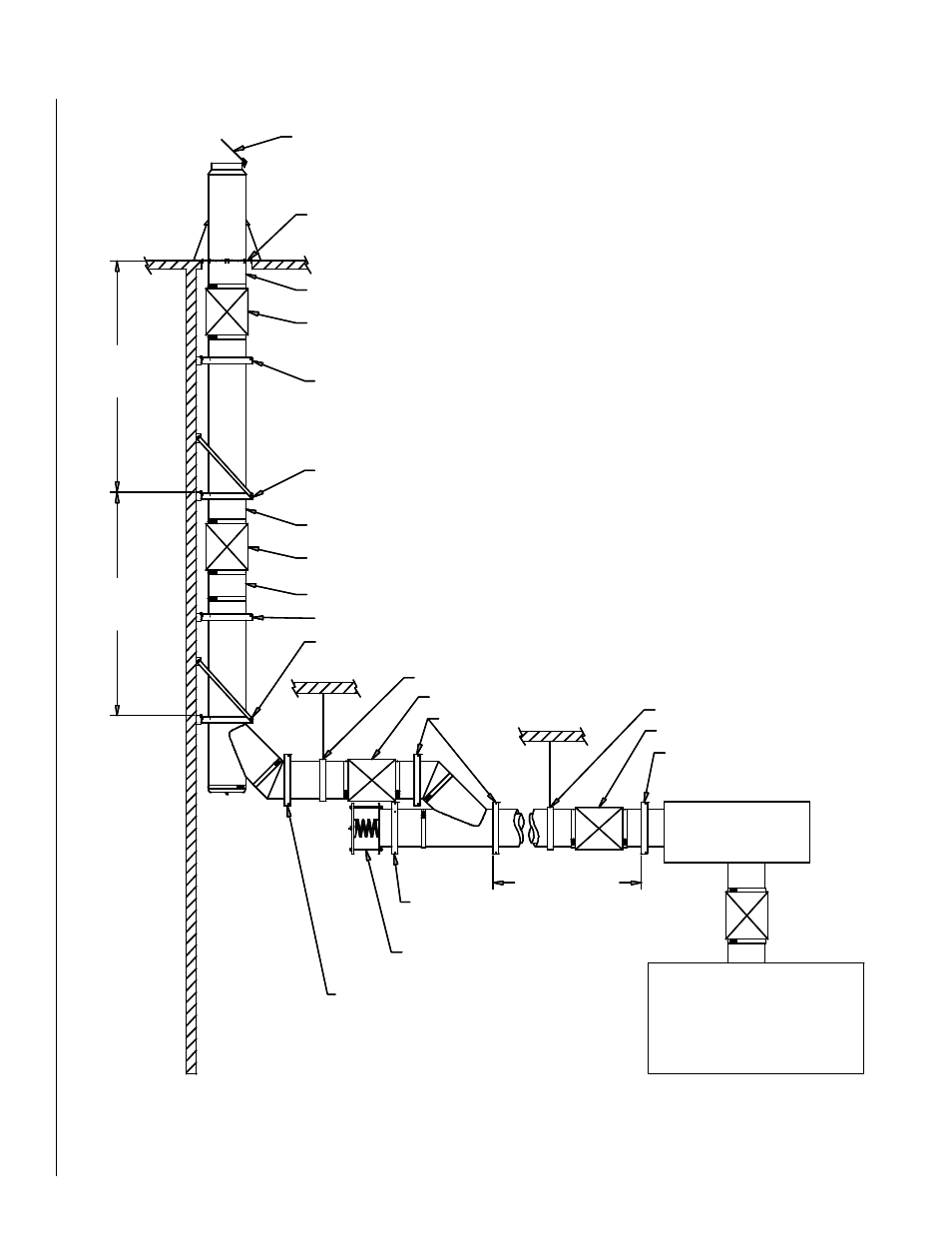

Figure 51 - Bellow Joint installation on Diesel Engine
Flip top (FT)
Anchor plate ventilated (APV)
12” Long length minimum with bellows (L12)
Bellow joint (LB)
Wall guide (WG)
Wall support (WS)
3” Max.
Expansion
3” Max.
Expansion
12” Long length minimum with bellows (L12)
Bellow joint (LB)
Wall guide (WG)
Wall support (WS)
Suspension band (SB)
Bellow joint (LB)
Fixed support (AP)
Suspension band (SB)
Bellow joint (LB)
Fixed support (AP)
MUFFLER
ENGINE
3” Max.
Expansion
Fixed
Support (AP)
Fixed
Support (AP)
Relief
Valve (RV)
12” Long length minimum with bellows (L12)
UP TO 60 INCH W.C.
INTERNAL PRESSURE
