JT5 Operator’s Manual
Prepare - 57
Plan Bore Path
CMW

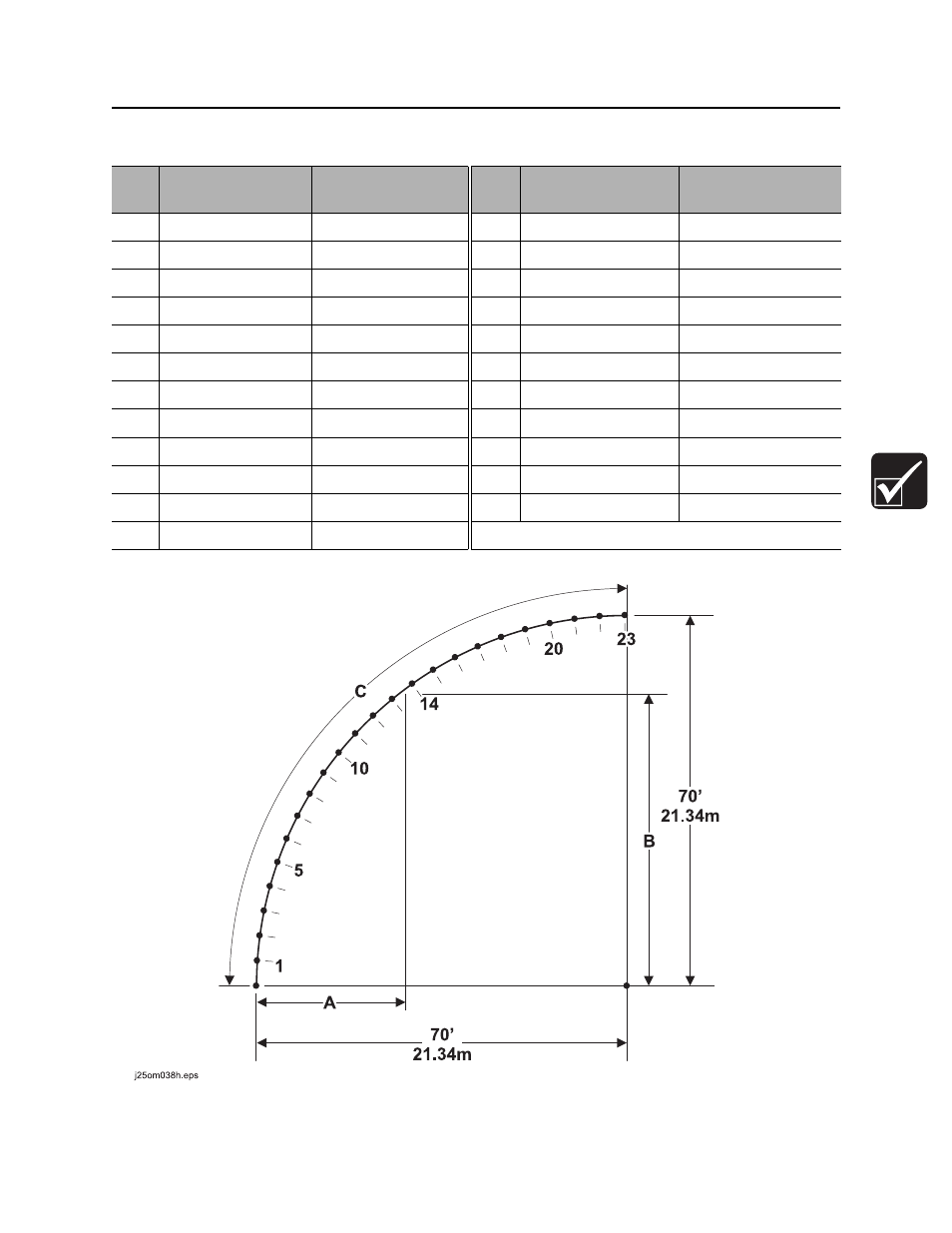

Pipe-By-Pipe Bend Limits
Pipe
(C)
Forward (B) Deflection (A) Pipe
(C)
Forward (B) Deflection (A)
1 4’ 11" (1.5 m) 0’ 2" (.05 m) 13 55’ 5" (16.9 m) 27’ 3" (8.3 m)
2 9’ 10" (3.0 m) 0’ 8" (.2 m) 14 58’ 4" (17.8 m) 31’ 3" (9.5 m)
3 14’ 8" (4.5 m) 1’ 7" (.5 m) 15 60’ 11" (18.6 m) 35’ 5" (10.8 m)
4 19’ 5" (5.9 m) 2’ 9" (.8 m) 16 63’ 2" (19.3 m) 39’ 8" (12.1 m)
5 24’ 1" (7.4 m) 4’ 3" (1.3 m) 17 65’ 1" (19.9 m) 44’ 4" (13.5 m)
6 28’ 8" (8.7 m) 6’ 2" (1.9 m) 18 66’ 9" (20.4 m) 48’ 11" (14.9 m)
7 33’ 1" (10.1 m) 8’ 4" (2.5 m) 19 68’ 1" (20.8 m) 53’ 8" (16.4 m)
8 37’ 4" (11.4 m) 10’ 9" (3.3 m) 20 69’ 1" (21.1 m) 58’ 6" (17.8 m)
9 41’ 5" (12.6 m) 13’ 7" (4.1 m) 21 69’ 8" (21.2 m) 63’ 4" (19.3 m)
10 45’ 3" (13.8 m) 16’ 7" (5.1 m) 22 69’ 11" (21.3 m) 68’ 4" (20.8 m)
11 48’ 11" (14.9 m) 19’ 11" (6.1 m) 23 70’ 0” (21.4 m) 70’ 0” (21.3 m)
12 52’ 4" (15.9 m) 23’ 6" (7.2 m)
Pipe 13 is illustrated.
