JT5 Operator’s Manual
Specifications - 151
CMW
Specifications

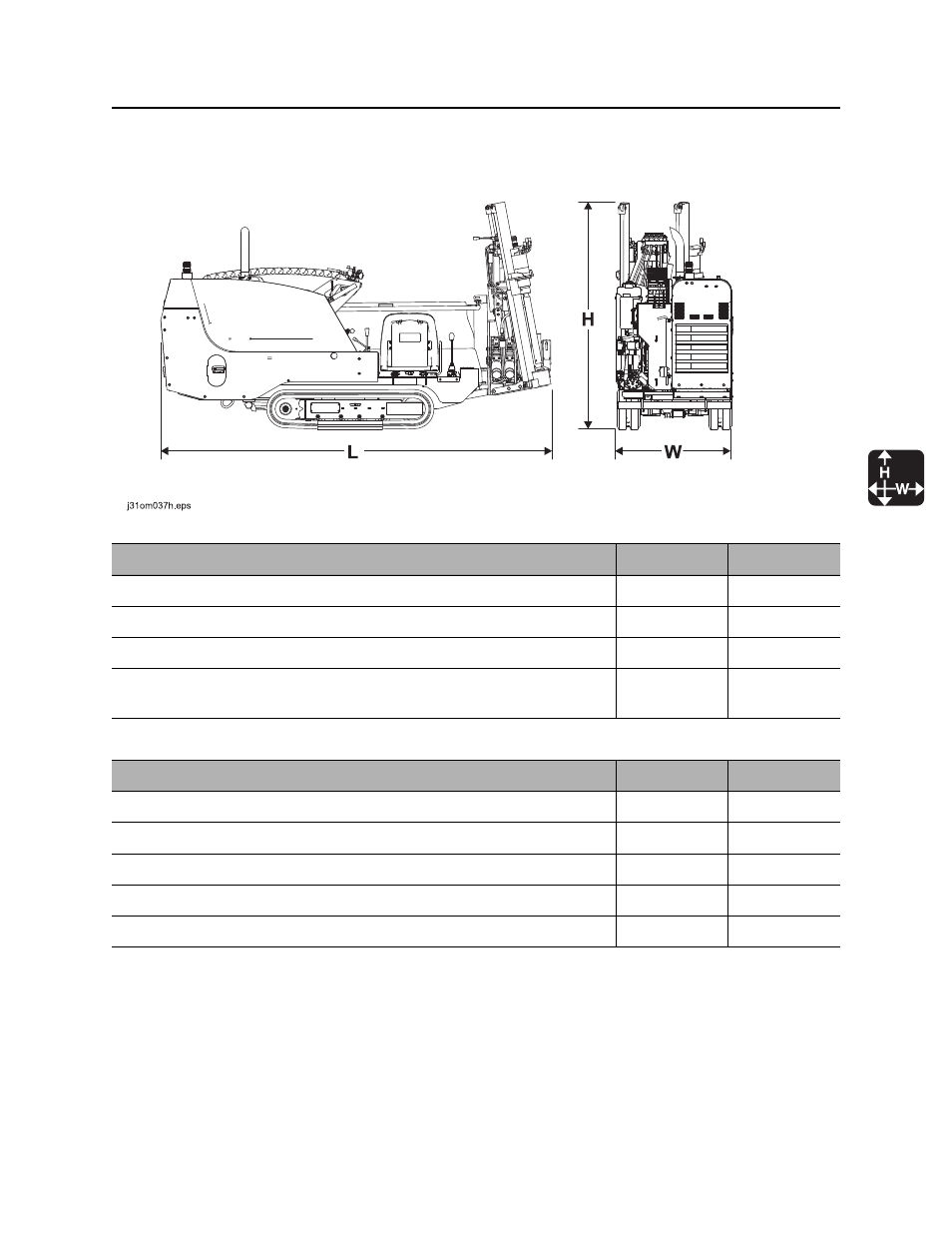

Dimensions U.S. Metric
L, overall machine length 120 in 3.1 m
W, overall machine width 35.9 in 91.2 cm
H, overall machine height 70 in 1.78 m
Operating weight w/150’/45.7 m of drill pipe, anchoring system and
anchor 3690 lb 1674 kg
UFE Pipe U.S. Metric
Length 59 in 1.5 m
Joint diameter 1.88 in 47.8 mm
Tubing diameter 1.1 in 28 mm
Minimum bend radius 70 ft 21.3 m
Weight 16 lb 7.25 kg
