Page 16
TOOLS REQUIRED:
METRIC WRENCHES OR SOCKET SET

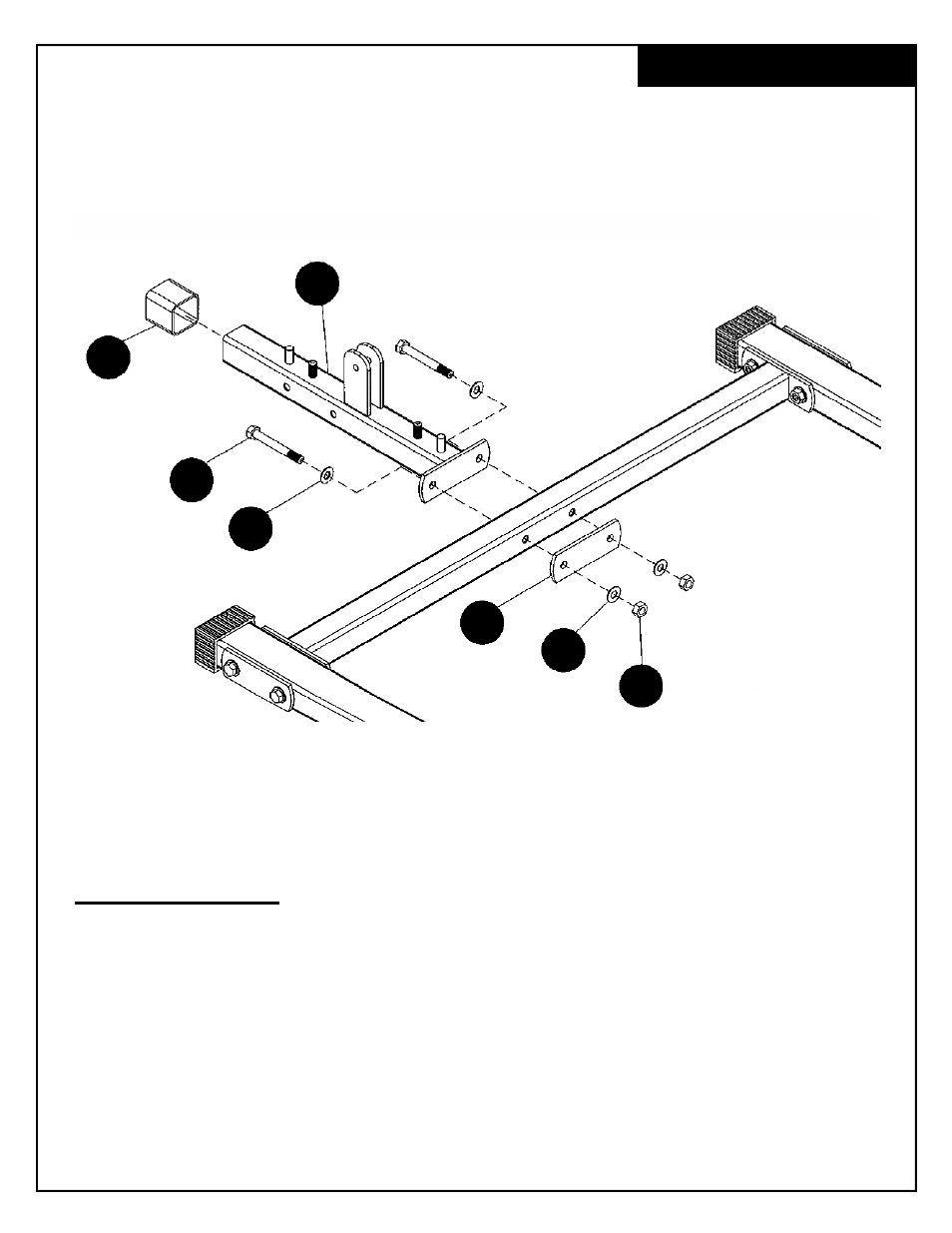

ATTACH THE BOTTOM SUPPORT (B) TO THE BOTTOM CROSSMEMBER OF THE POWER
RACK OR SMITH MACHINE YOU ARE INSTALLING TO USING M10 x 75MM BOLTS (X), 4”
FLANGE PLATES (F), M10 WASHERS (HH) AND M10 LOCKNUTS (II). TIGHTEN SECURELY.
INSTALL RUBBER SHOE (N) TO BOTTOM SUPPORT (B).
FRAME ASSEMBLY
(NOTE: THE NUTS USED ON THIS ARE
LOCKNUTS, THIS MEANS YOU MUST
TIGHTEN THEM DOWN PAST THE
PLASTIC INSERT.)
N
B
X
HH
F
HH
I I
