Golden Tee® Fore! –home version Version 03/06 Page 23
A
PPENDIX
B
S
ERVICE
I
NFORMATION

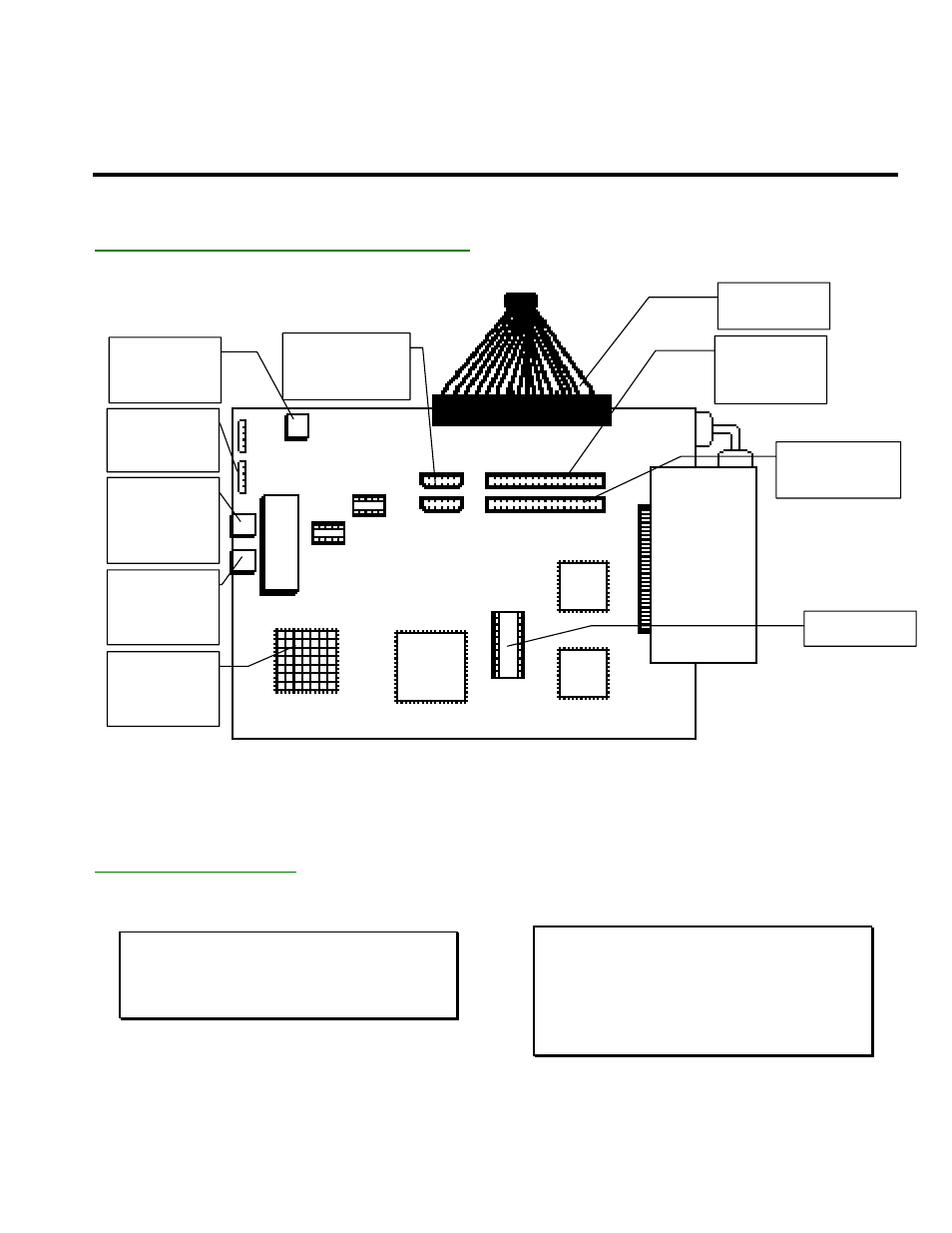

Golden Tee® Fore! PCB Connections
Dip Switch Settings
The SW51-Dip switches can be found on the main
PCB near the JAMMA connector.
Dip Switch 1 (ON): Normal Play (DEFAULT)
Dip switch 1 (OFF): OPERATOR MODE
Dip switch 2 (ON): Always "ON" (DEFAULT)
Dip switch 3 (ON): Always "ON" (DEFAULT)
Dip switch 4 (ON): Always "ON" (DEFAULT)
The SW5-Dip switches can be found near the flashing
green LED. These are used to adjust monitor
resolution.
Dip switch 1 (OFF): Medium Resolution (DEFAULT)
Dip switch 1 (ON): Low Resolution
**Dip switch 2 (OFF): Low Resolution B Adjust
Dip switch 2 (ON):
Low Resolution A (DEFAULT)
Dip switch 3 (ON): Always "ON" (DEFAULT)
Dip switch 4 (ON): Always "ON" (DEFAULT)
**If you are experiencing a “jittery” image, try this mode to
correct. Restart the game and adjust the monitor
.
JAMMA
Connector
Video
Card
Processor
with Heat
Sink
Boot ROM
Hard Drive
Connector
LED Sign
Connector
(Gray) CD ROM 40-
Pin
Connector Power Bypass
Cable
Connectors
Phone Jack
for Outside
Line
Extra Phone
Jack used for
Daisy
Chaining
Trackball
Connector
Player 1
RED
BOARD
Modem
