EMX-NM70 User ’s Manual
20 EMX-NM70 User’s Manual

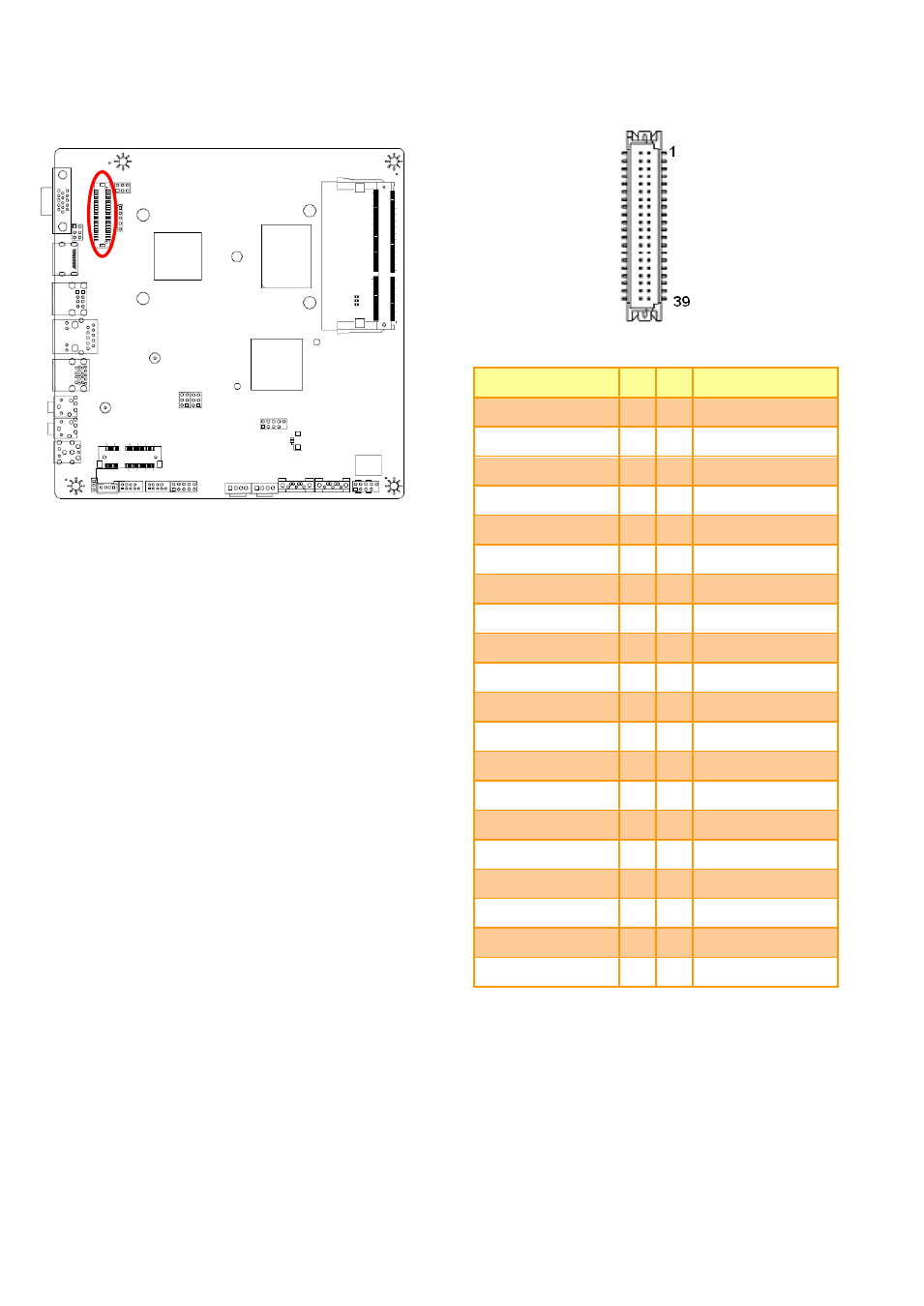

2.4.7 LVDS connector (JLVDS1)
Note: Mapping connector DF13-40DS-1.25C
(1.0mm).
Signal PIN PIN Signal
VDDPAEA 2 1 VDDPAEA
GND 4 3 GND
VDDPAEA 6 5 VDDPAEA
LVDS1_N0 8 7 LVDS0_N0
LVDS1_P0 10 9 LVDS0_P0
GND 12 11 GND
LVDS1_N1 14 13 LVDS0_N1
LVDS1_P1 16 15 LVDS0_P1
GND 18 17 GND
LVDS1_N2 20 19 LVDS0_N2
LVDS1_P2 22 21 LVDS0_P2
GND 24 23 NC
LVDS1_CLKN 26 25 LVDS0_CLKN
LVDS1_CLKP 28 27 LVDS0_CLKP
GND 30 29 GND
LVDS_DDCPDATA 32 31 LVDS_DDCPCLK
GND 34 33 GND
LVDS1_N3 36 35 LVDS0_N3
LVDS1_P3 38 37 LVDS0_P3
LVDS_VCON 40 39 NC
