Avalue ENX-PNV - Manual (Page 24)

ENX-PNV
24

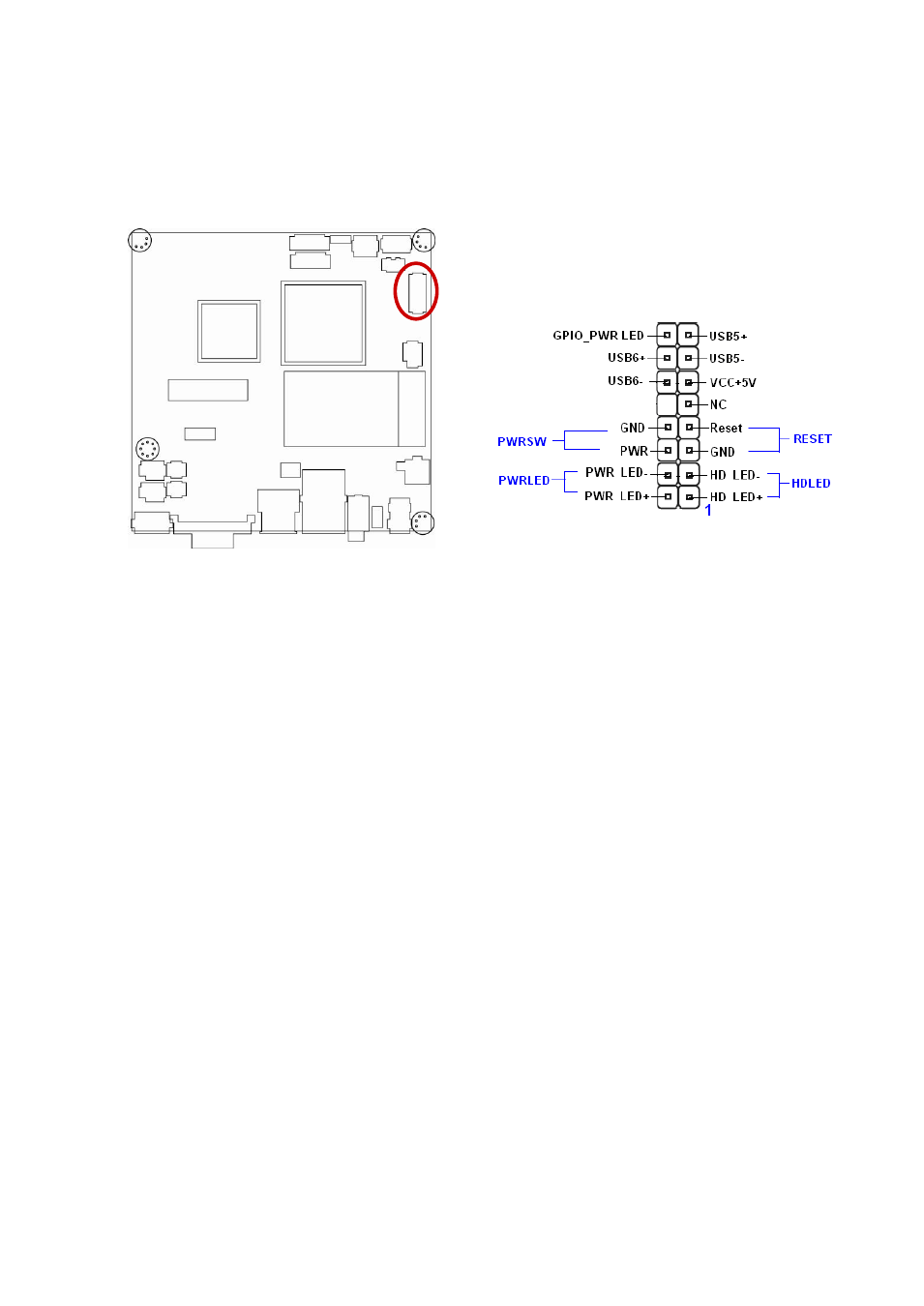

1.7.5 System Panel Connector (F_PANEL)
This connector supports several chassis-mounted functions, and provides additional USB 5
& 6 ports.
 System Power LED (2-pin PWRLED)
This 2-pin connector is for the system power LED. Connect the chassis power LED
cable to this connector. The system power LED lights up when you turn on the system
power, and blinks when the system is in sleep mode.
 ATX Power Button/Soft-off Button (2-pin PWRSW)
This connector is for the system power button. Pressing the power button turns the
system on or puts the system in sleep or soft-off mode depending on the BIOS settings.
Pressing the power switch for more than four seconds while the system is ON turns the
system OFF.
 Hard Disk Drive Activity LED (2-pin HDLED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable
to this connector. The IDE LED lights up or flashes when data is read from or written to
the HDD.
 Reset Button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for a system reboot
without turning off the system power.
