EAX-Q87R User’s Manual
78 EAX-Q87R User’s Manual

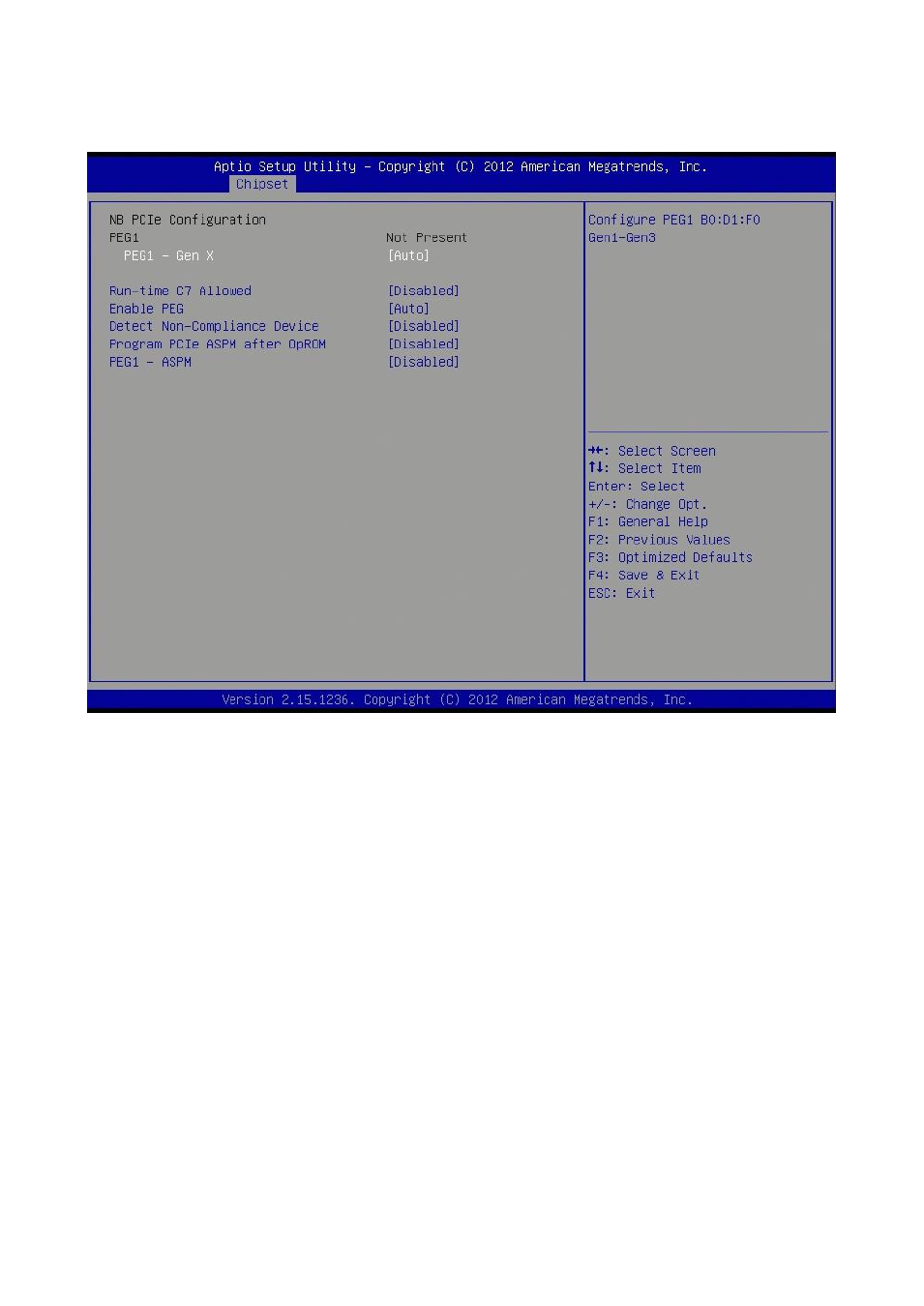

3.4.3.2.2 PCIe Configuration
 PEG1 – Gen X [Auto]
Configure PEG0 Gen1~Gen3
Configuration options: [Auto][Gen1][Gen2][Gen3]
 Run-Time C7 Allowed [Disable]
Configuration options: [Disabled][Enabled]
 Enable PEG [Auto]
To enable/Disable the PEG slot.
Configuration options: [Auto][Enable][Disable]
 Detect Non-Compliance Device [Disable]
 Program PCIe ASPM after OpROM [Disable]
 PEG1- ASPM [Disabled]
Control ASPM support for the PEG Device. This has no effect if PEG is not the currently
