4 pci express x 4 slot, 5 pci slot – Avalue EAX-Q87R User Manual
Page 30
EAX-Q87R
User’s Manual
30 EAX-Q87R
User’s Manual

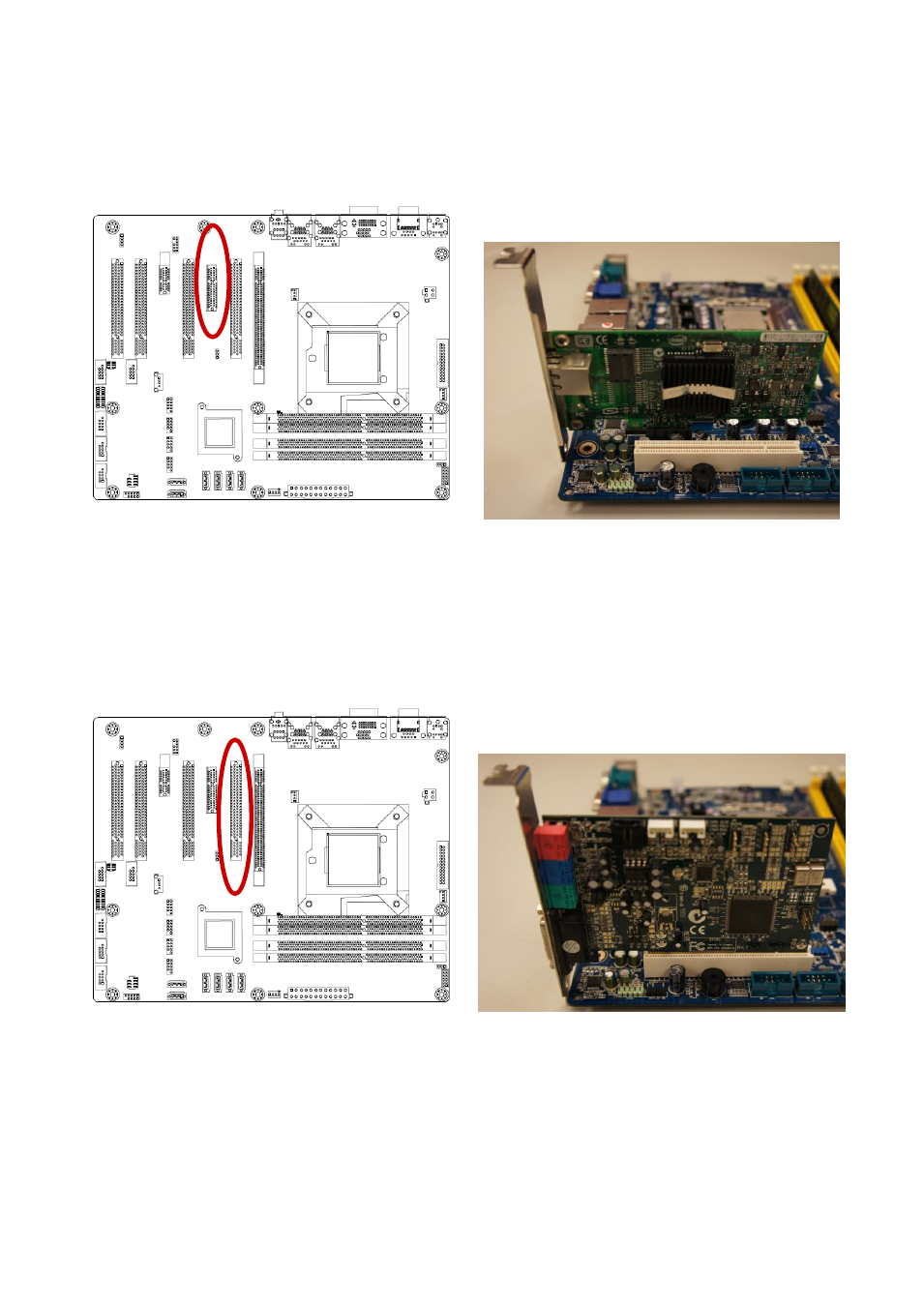

2.6.4 PCI Express x 4 slot
This motherboard supports one PCI Express x4 slot that complies with the PCI Express
specifications. The following figure shows a RAID card installed on the PCI Express x 4 slot.
2.6.5 PCI slot
This motherboard supports one PCI slot that complies with the PCI specifications. The
following figure shows a audio card installed on the PCI slot.
